SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment
SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment
SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment
SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment
SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment
SDT-7074S Large Tubular Solenoid For Rail Transit Automation Equipment

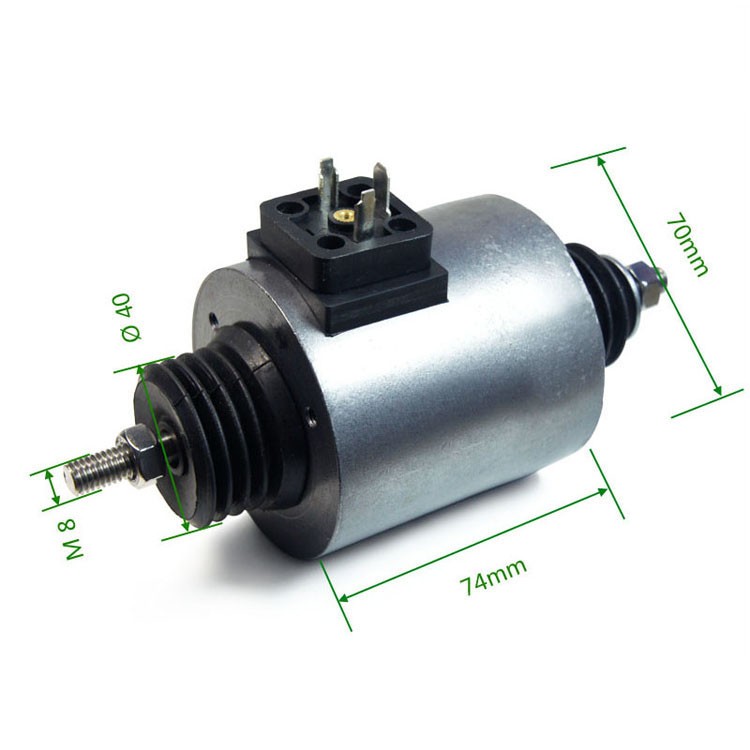

Size: φ70*74mm

Plunger: φ27.7mm

Voltage: DC48V

Stroke: 0-25mm

Force: 20-90N

Power: 26.5W

Current: 0.55A

Resistance: 87Ω

Life: ≥1000,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDT-7074S-48A87


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



Tubular Solenoid

push solenoid

pull solenoid

linear solenoid

Large Tubular Solenoid


Size: φ70*74mm

Plunger: φ27.7mm

Voltage: DC48V

Stroke: 0-25mm

Force: 20-90N

Power: 26.5W

Current: 0.55A

Resistance: 87Ω

Life: ≥1000,000 times

Working Cycle: Continuous Power


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.

size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Rail Transit Automation Equipment


application of solenoid
