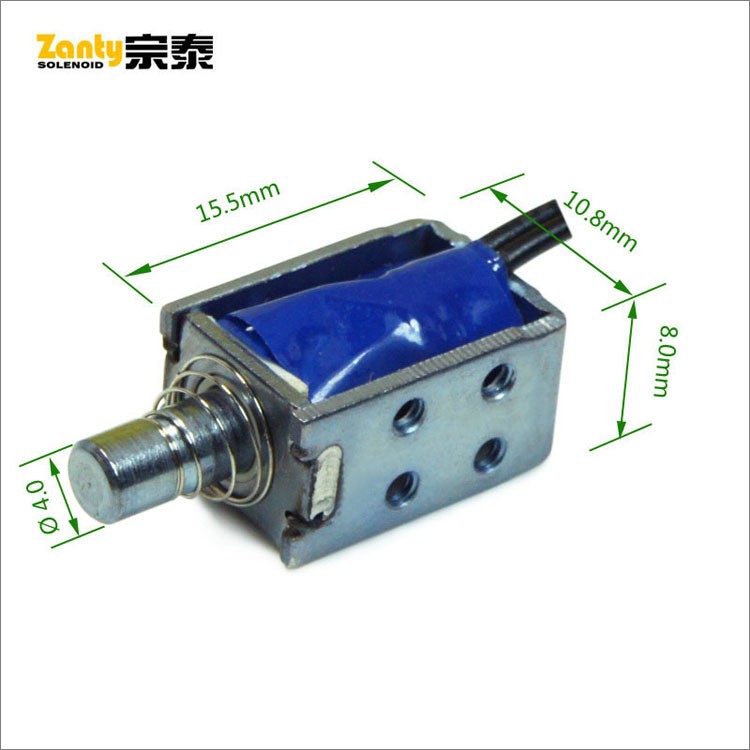

Size: 15.5*10.8*8mm

plunger:φ4mm

Voltage: DC3V

Stroke: 3mm

Force: Can move

Power : 2.57W

Current: 0.85A

Resistance: 3.5Ω

Life: ≥300,000 times

Working cycle: 0.2s on, 1s off



Specification download:

横线

Model: SDO-0415L-03G3.5


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull solenoid




  Demo video of solenoid in YouTube


Mini Push Pull Solenoid

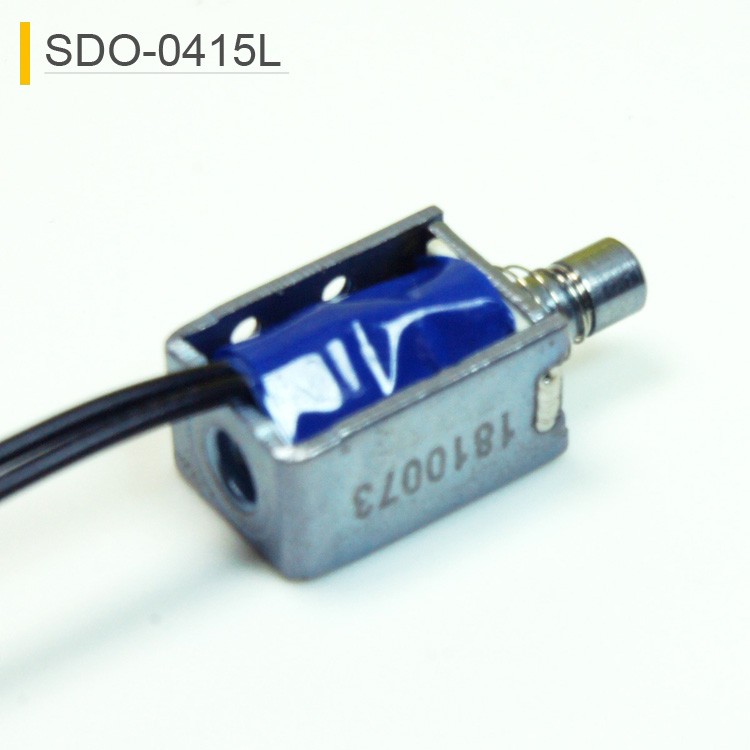

  Real photos of solenoid


Mini Solenoids

push solenoid

pull solenoid

small solenoid




Size: 15.5*10.8*8mm

plunger:φ4mm

Voltage: DC3V

Stroke: 3mm

Force: Can move

Power : 2.57W

Current: 0.85A

Resistance: 3.5Ω

Life: ≥300,000 times

Working cycle: 0.2s on, 1s off



The solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0415L Mini Linear Push Pull Solenoids For Password Lock  Open Frame Solenoid SDO-0415L_Specification.pdf     specification of solenoid




  Drawing of solenoid


mini open frame solenoid




  Force and stroke of solenoid

force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Mini linear push pull solenoids applied to password lock

Solenoids For Password Lock


application of solenoid
