SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer

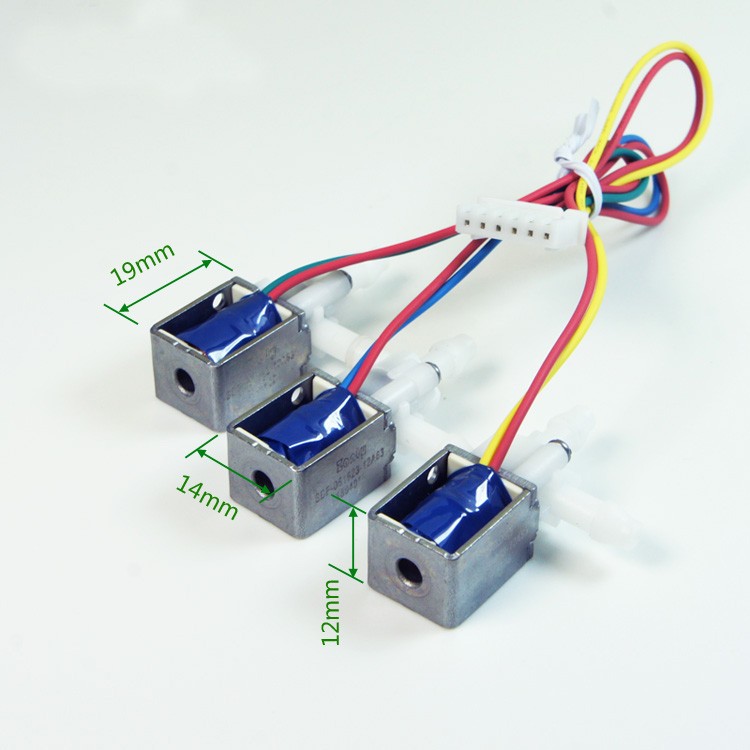

Size: 19*14*12mm

Plunger: φ5mm

Pressure: 187.5mmHg

Flow Rate: 1.7 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 2.28W*3

Current: 0.19A

Resistance: 63Ω

Working Cycle: 10s On, 10s Off


Specification download:

横线

Model: SDF-051923-12A63


There are two types of solenoid valve: normally closed and normally open. Due to its small size, simple exhaust pipe design and low cost, it can work normally under zero pressure difference and micro-vacuum. It is used in oxygen concentrators, massage chairs, sealing machines of vacuum package with its reliable performance and simple structure.



 Gif animation of solenoid


Air Solenoid Valve



  Demo video of solenoid in YouTube

dc 12v solenoid valve

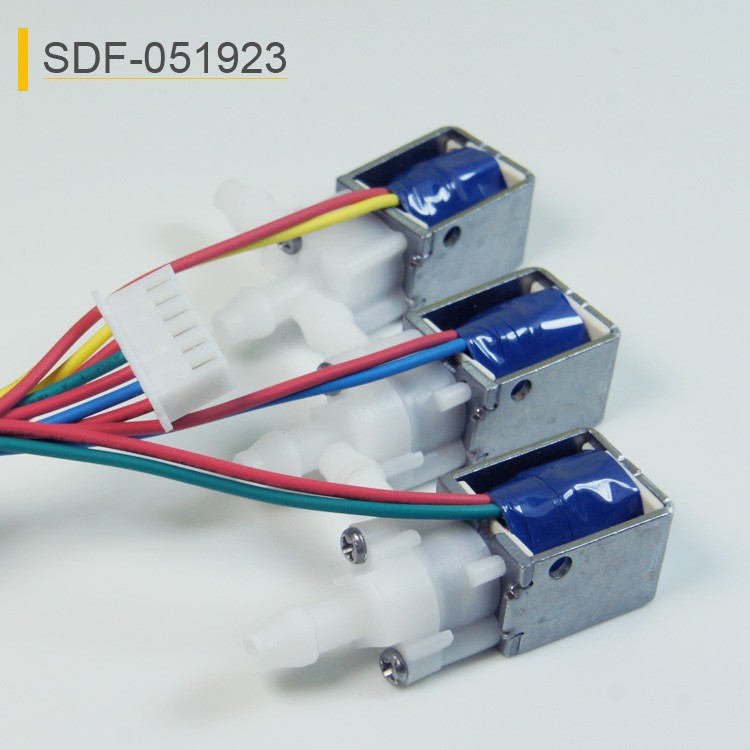

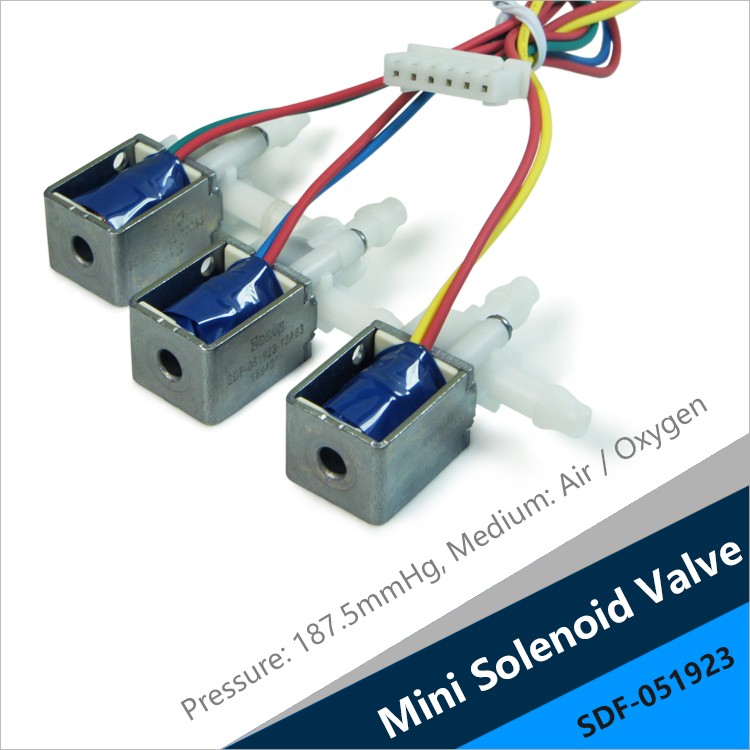

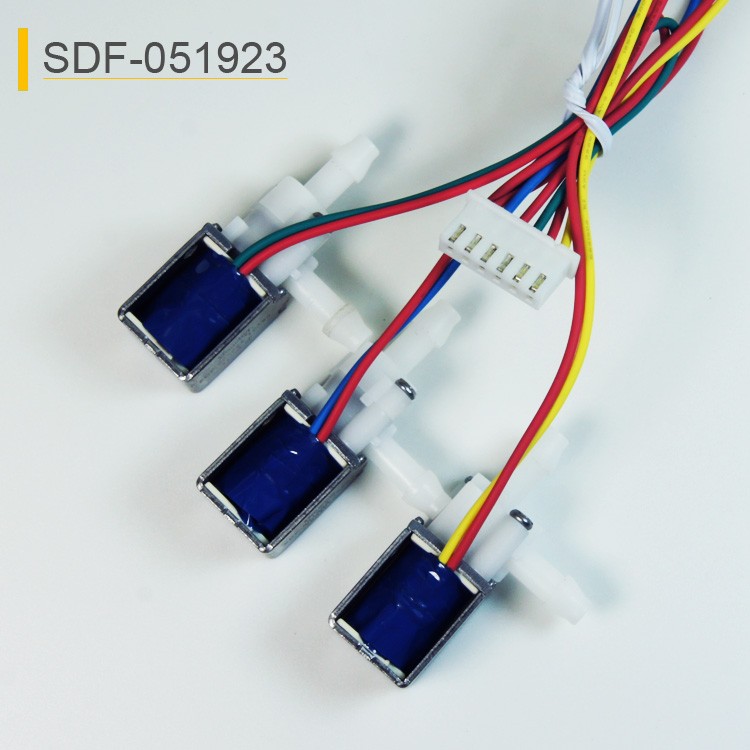

  Real photos of solenoid

mini solenoid valve

solenoid air valve

SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer

Solenoid Valve


Size: 19*14*12mm

Plunger: φ5mm

Pressure: 187.5mmHg

Flow Rate: 1.7 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 2.28W*3

Current: 0.19A

Resistance: 63Ω

Working Cycle: 10s On, 10s Off


The air solenoid valve is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




solenoid valve

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid Valve For Leg Massage And Vacuum Sealer
