SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager

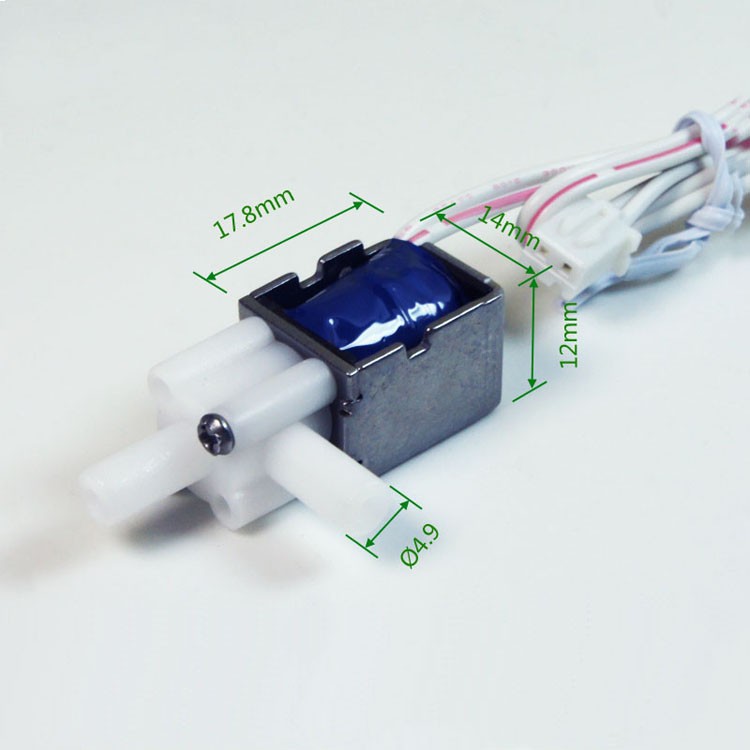

Size: 17.8*14*12mm

Plunger: φ5mm

Pressure: -380mmHg

Flow Rate: 8 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 1.5W

Current: 0.125A

Resistance: 96Ω

Working Cycle: 1s On, 1s Off


Specification download:

横线

Model: SDF-052021-12H96


There are two types of solenoid valve: normally closed and normally open. Due to its small size, simple exhaust pipe design and low cost, it can work normally under zero pressure difference and micro-vacuum. It is used in oxygen concentrators, massage chairs, sealing machines of vacuum package with its reliable performance and simple structure.



  Gif animation of solenoid

Solenoid Valve



  Demo video of solenoid in YouTube

dc 12v solenoid valve

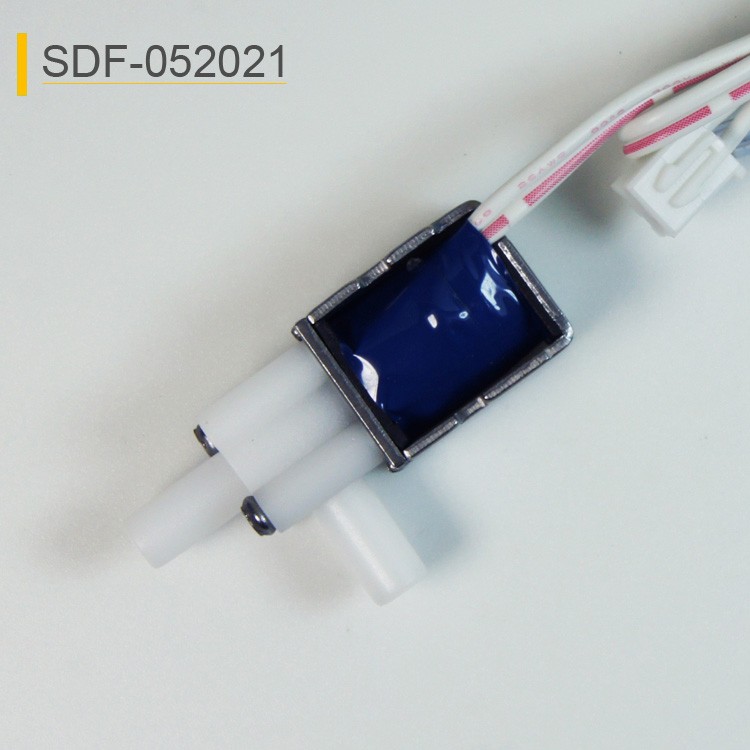

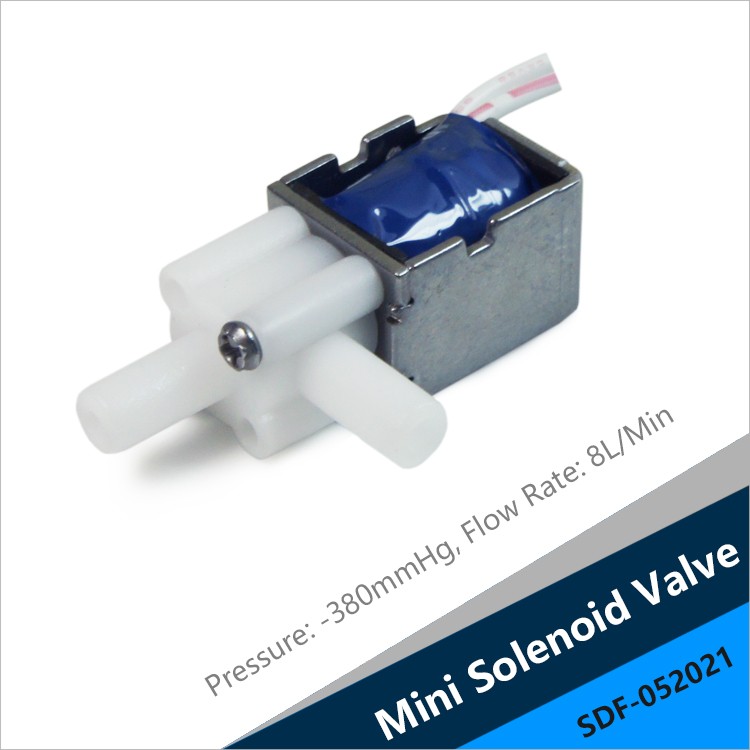

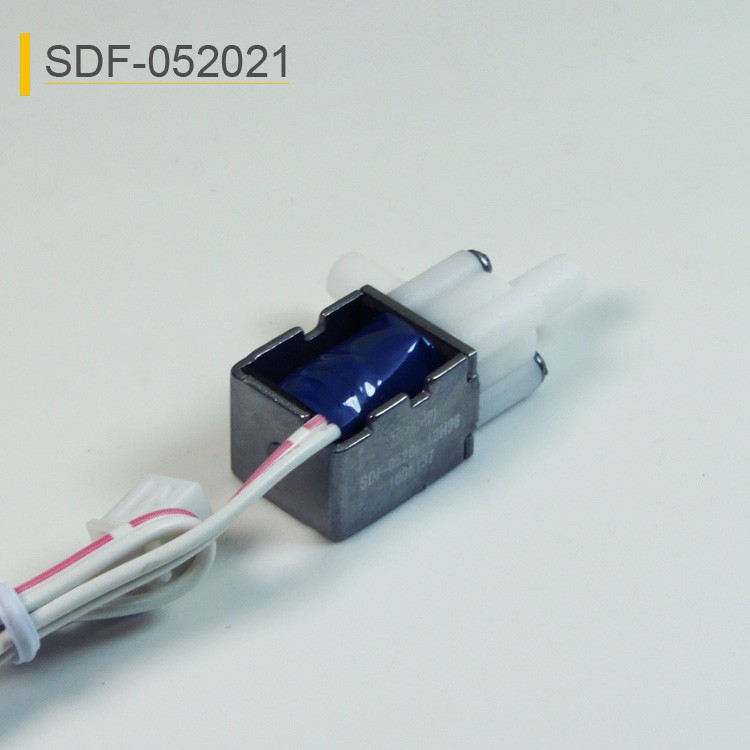

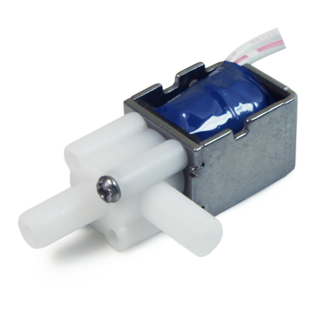

  Real photos of solenoid

mini solenoid valve

air solenoid valve

solenoid gas valve

Solenoid Valve


Size: 17.8*14*12mm

Plunger: φ5mm

Pressure: -380mmHg

Flow Rate: 8 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 1.5W

Current: 0.125A

Resistance: 96Ω

Working Cycle: 1s On, 1s Off


The air solenoid valve is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.


solenoid valve

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid Valve For Vacuum Sealer And Leg Massager


application of solenoid
