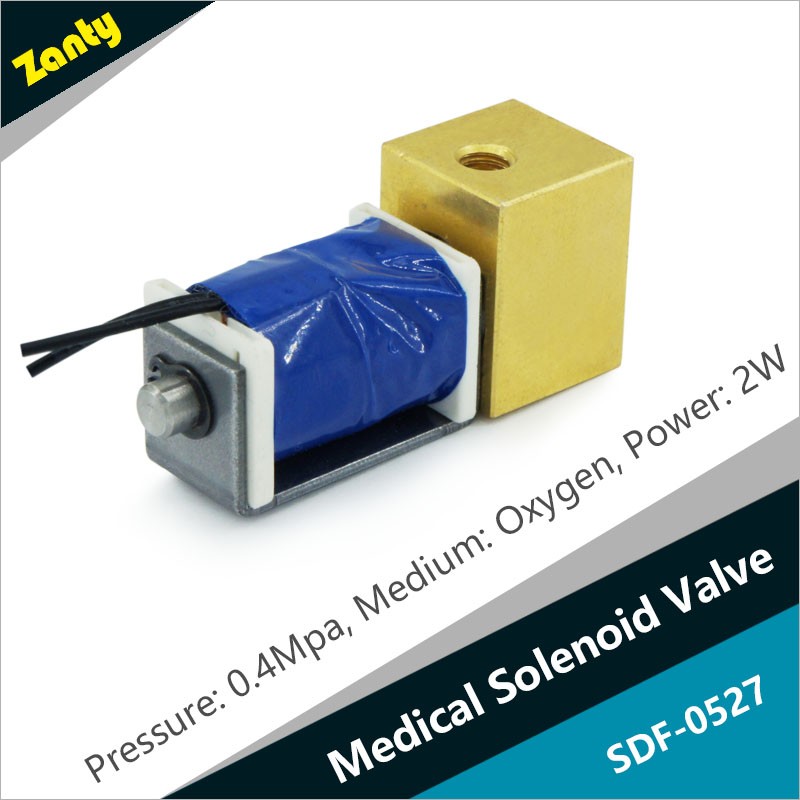

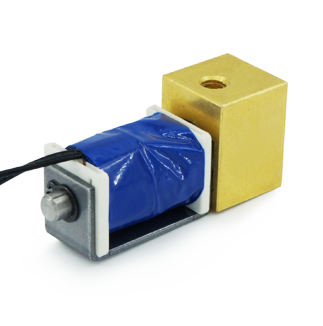

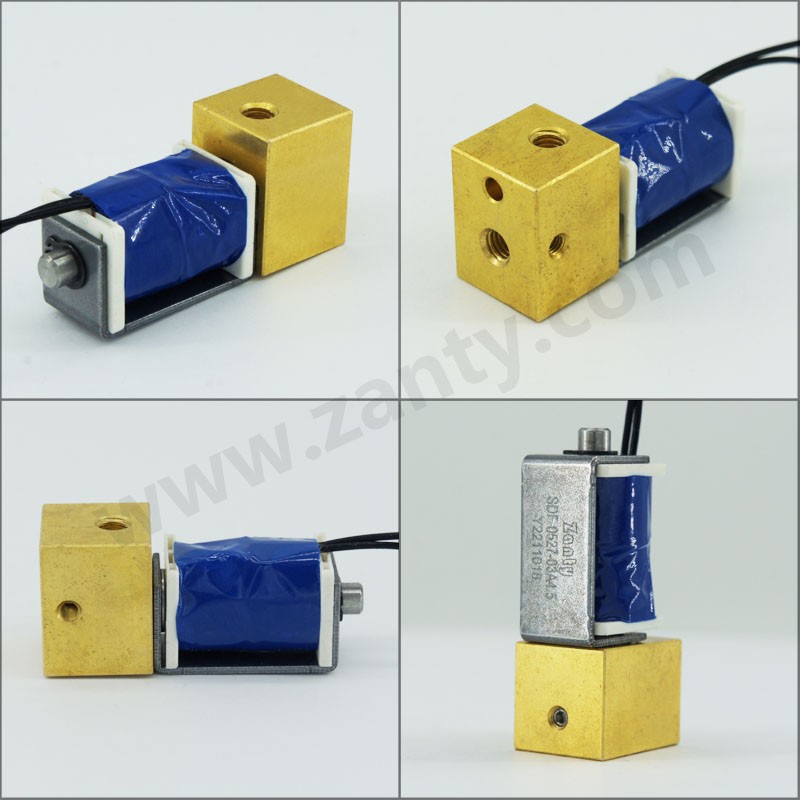

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances

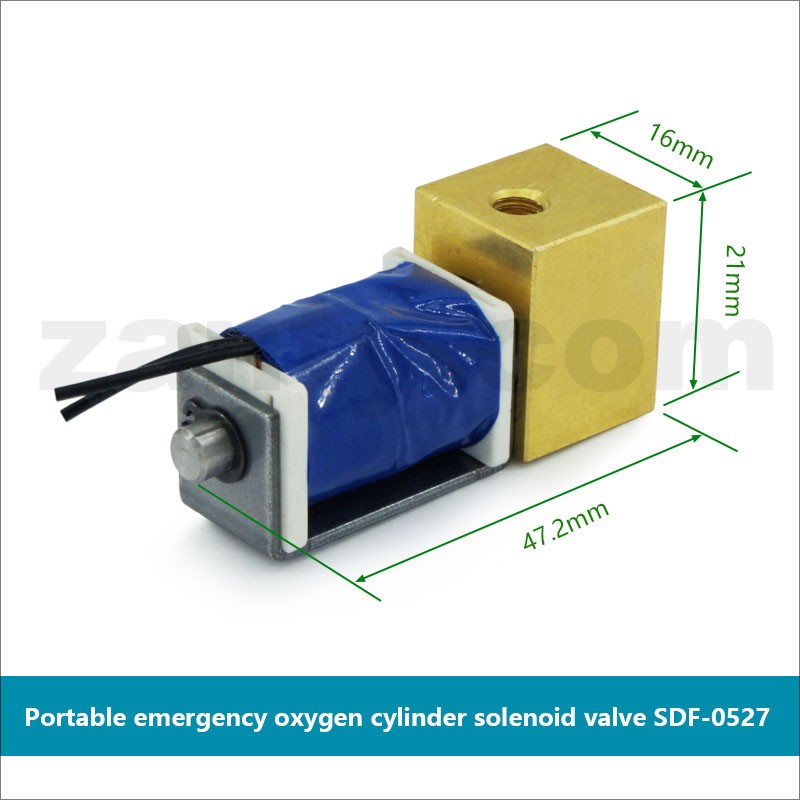

Size: 47.2*16*21mm

Plunger: φ5mm

Pressure: 0.35-0.4Mpa

Medium: Oxygen

Voltage: DC3V

Power : 2W

Current: 0.67A

Resistance: 4.5Ω

Working Cycle: 0.1s On, 0.9s Off


Specification download:

横线

Model: SDF-0527-03A4.5


There are two types of solenoid valve: normally closed and normally open. Due to its small size, simple exhaust pipe design and low cost, it can work normally under zero pressure difference and micro-vacuum. It is used in oxygen concentrators, massage chairs, sealing machines of vacuum package with its reliable performance and simple structure.


SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances


Size: 47.2*16*21mm

Plunger: φ5mm

Pressure: 0.35-0.4Mpa

Medium: Oxygen

Voltage: DC3V

Power : 2W

Current: 0.67A

Resistance: 4.5Ω

Working Cycle: 0.1s On, 0.9s Off


The air solenoid valve is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!



SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
