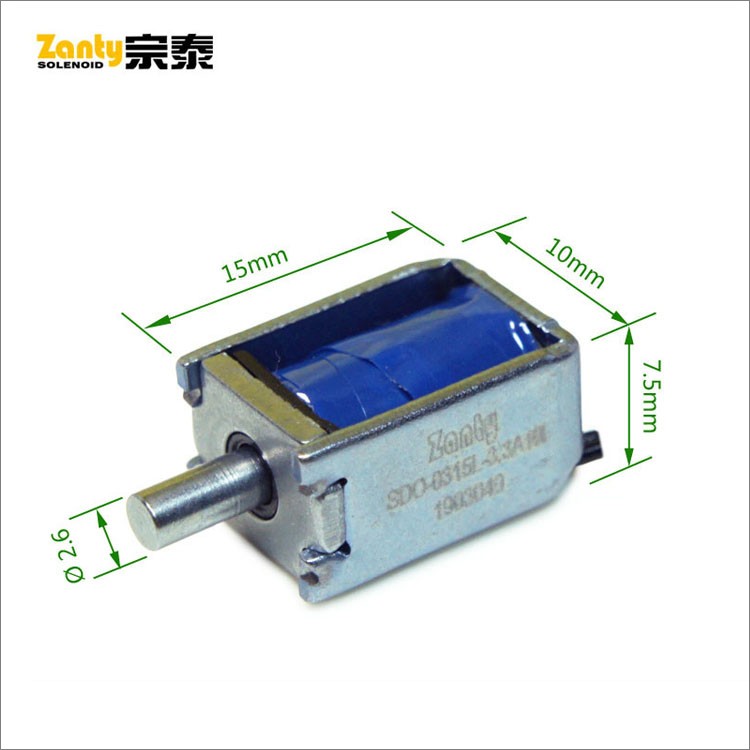

Size: 15*10*7.5mm

plunger:φ2.6mm

Voltage: DC3.3V

Stroke: 2mm

Force: Can move

Power : 1.37W

Current: 0.41A

Resistance: 10Ω

Life: ≥200,000 times

Working cycle: 3s on, 3s off


Specification download:

横线

Model: SDO-0315L-3.3A10


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.



  Gif animation of solenoid


mini pull solenoid



  Demo video of solenoid in YouTube


Mini Solenoid

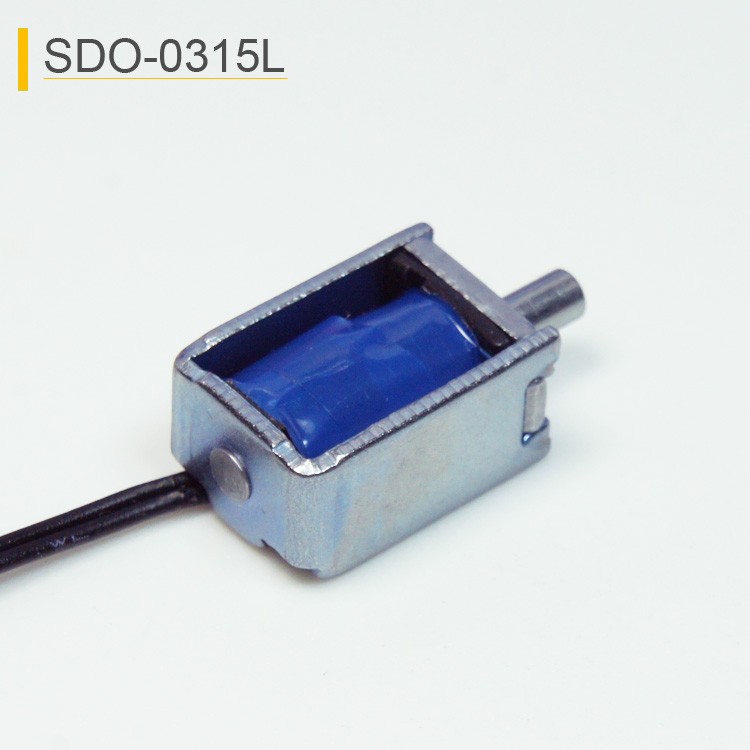

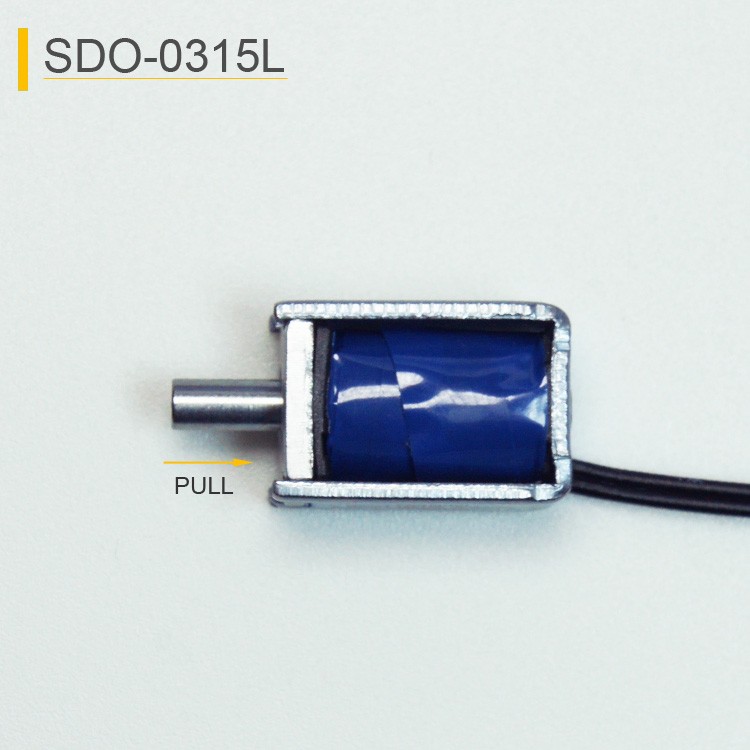

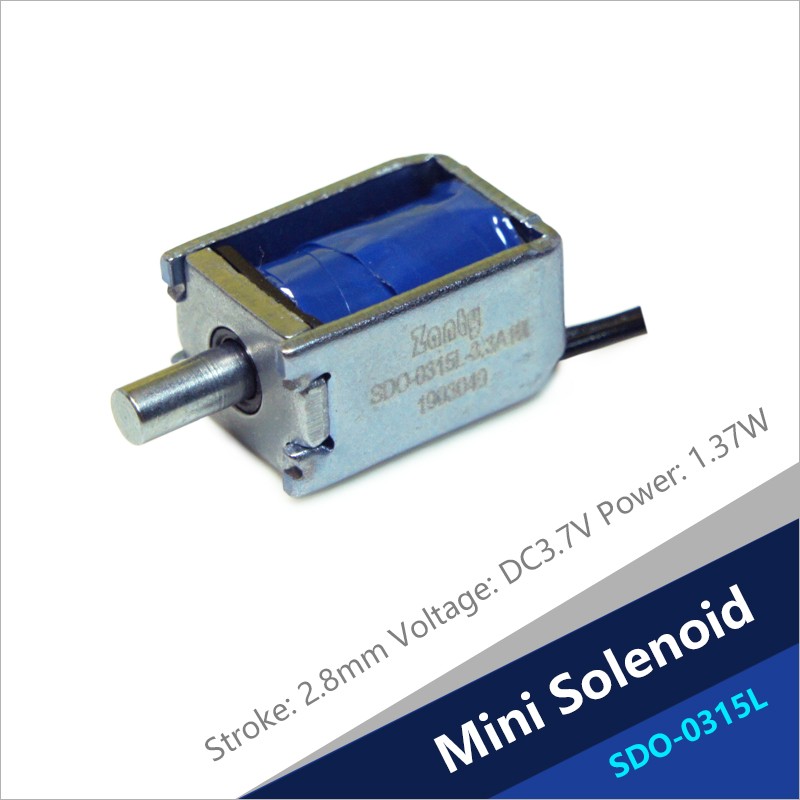

  Real photos of solenoid


Mini Pull Solenoid

Pull Solenoid

Solenoid

Push Pull Solenoid

Small Solenoid




Size: 15*10*7.5mm

plunger:φ2.6mm

Voltage: DC3.3V

Stroke: 2mm

Force: Can move

Power : 1.37W

Current: 0.41A

Resistance: 10Ω

Life: ≥200,000 times

Working cycle: 3s on, 3s off


The solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



SDO-0315L Mini Linear Push Pull Solenoids For Fingerprint Lock  Open Frame Solenoid SDO-0315L_Specification.pdf     Specification of solenoid





  Drawing of solenoid


mini push pull solenoid



  Force and stroke of solenoid

force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



The small solenoid applied to intelligent door lock
