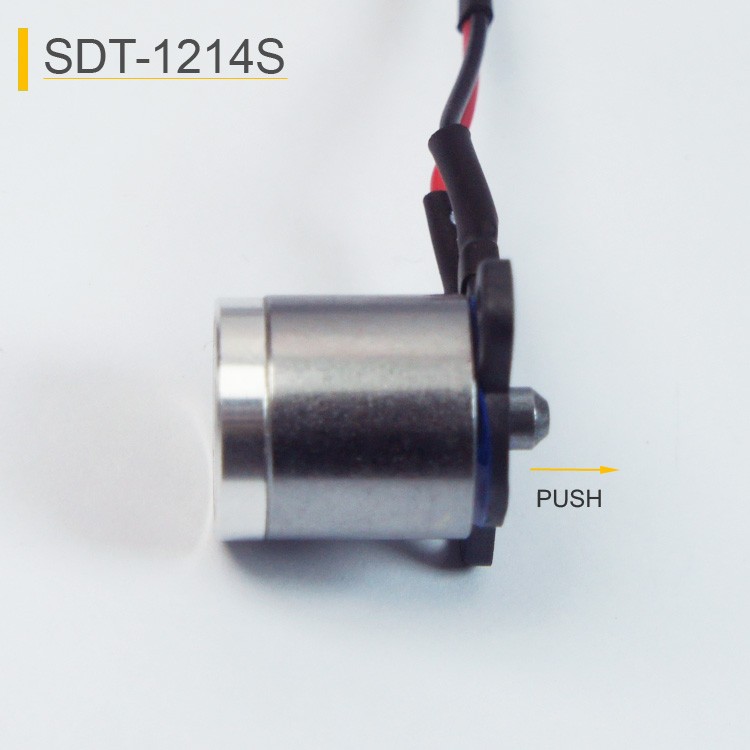

SDT-1214S Tubular Push Solenoid For Smart Door Lock
SDT-1214S Tubular Push Solenoid For Smart Door Lock
SDT-1214S Tubular Push Solenoid For Smart Door Lock
SDT-1214S Tubular Push Solenoid For Smart Door Lock
SDT-1214S Tubular Push Solenoid For Smart Door Lock
SDT-1214S Tubular Push Solenoid For Smart Door Lock

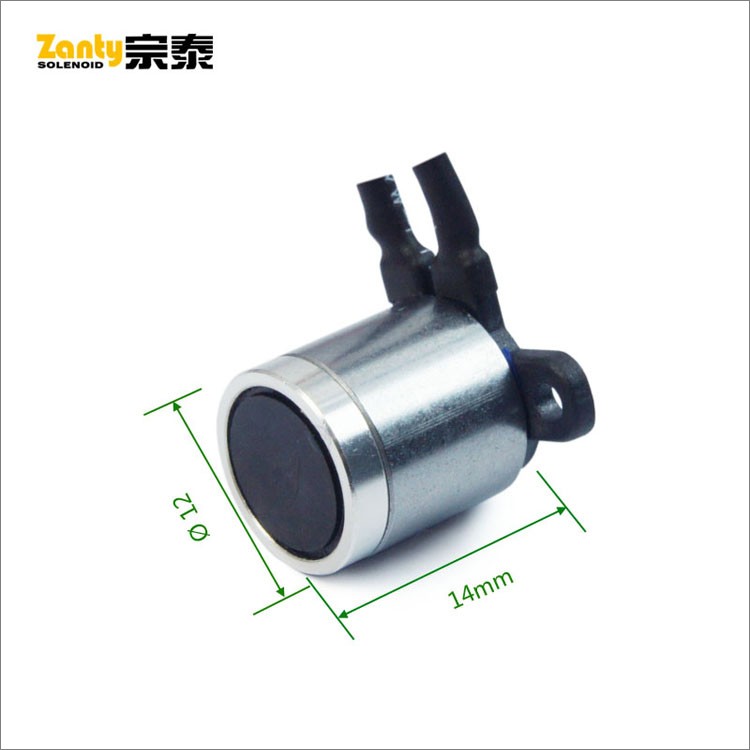

Size: φ12*14mm

plunger:φ3.2mm

Voltage: DC5V

Stroke: 0-3mm

Force: 0.4-0.8N

Power : 0.63W

Current: 0.13A

Resistance: 40Ω

Life: ≥100,000 times

Working cycle: 1s on, 1s off


Specification download:

横线

Model: SDT-1214S-05A40


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



 Gif animation of solenoid


push pull solenoid

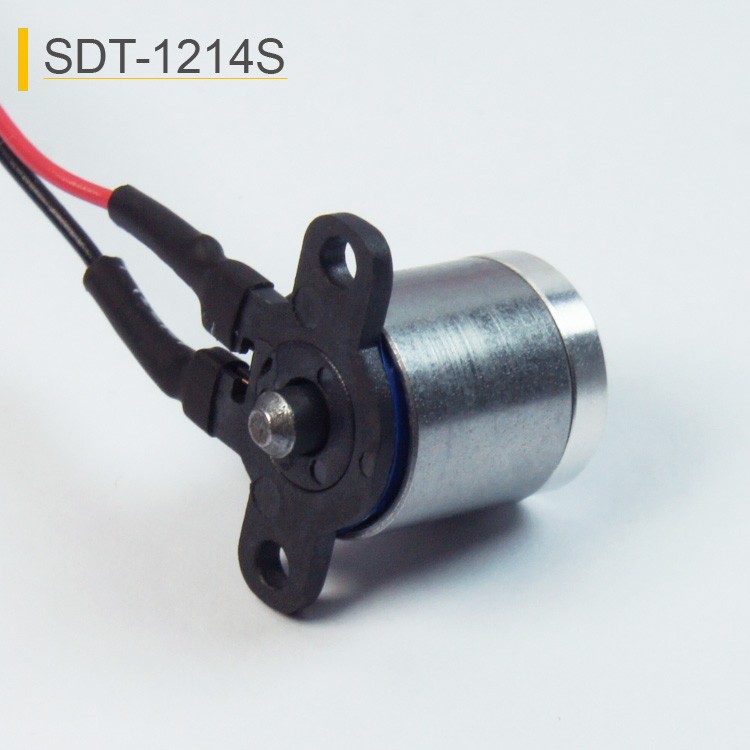

  Real photos of solenoid

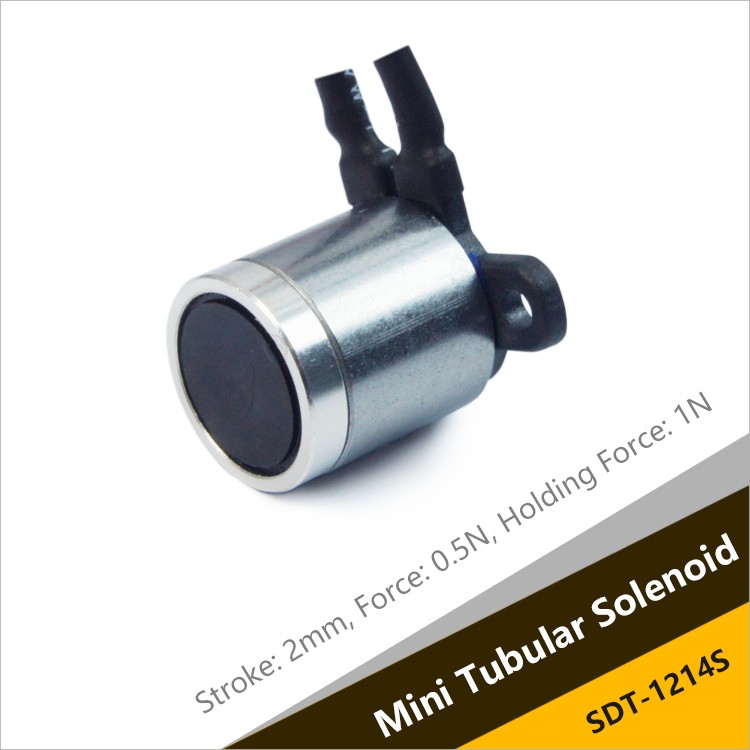

mini tubular solenoid

push solenoid

tubular solenoid

small solenoid

mini solenoid



Size: φ12*14mm

plunger:φ3.2mm

Voltage: DC5V

Stroke: 0-3mm

Force: 0.4-0.8N

Power : 0.63W

Current: 0.13A

Resistance: 40Ω

Life: ≥100,000 times

Working cycle: 1s on, 1s off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




size of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Smart Door Lock


application of solenoid
