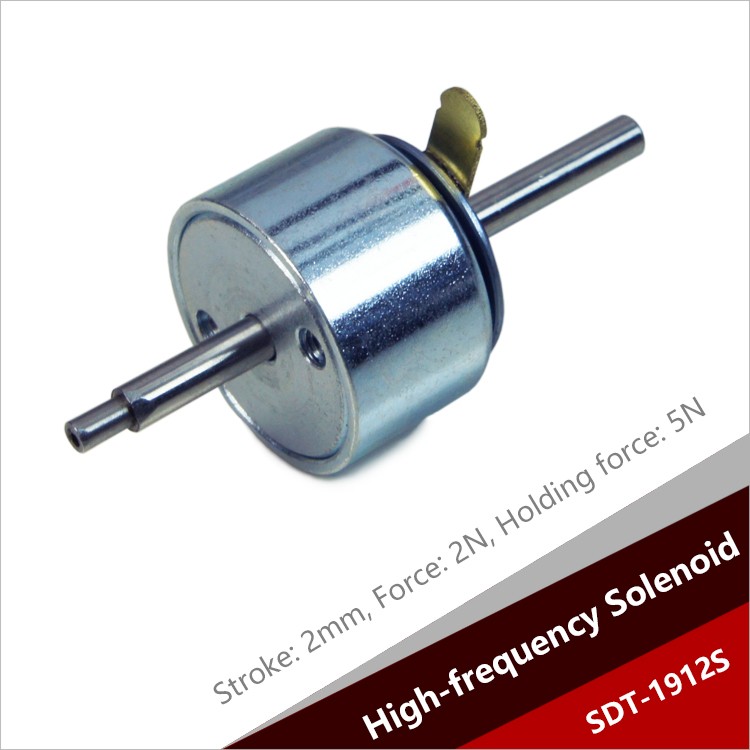

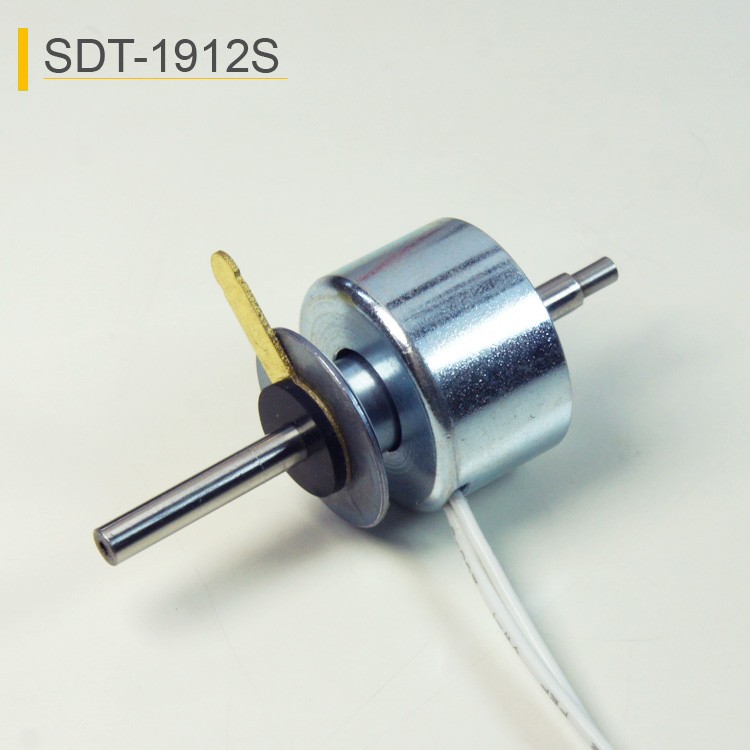

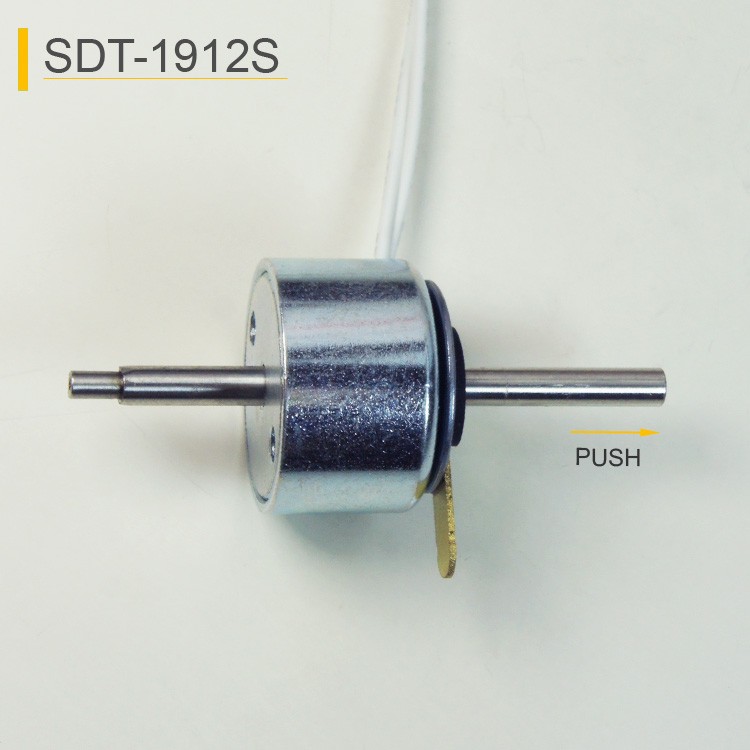

SDT-1912S High Frequency Solenoid For High-speed Mounter
SDT-1912S High Frequency Solenoid For High-speed Mounter
SDT-1912S High Frequency Solenoid For High-speed Mounter
SDT-1912S High Frequency Solenoid For High-speed Mounter
SDT-1912S High Frequency Solenoid For High-speed Mounter
SDT-1912S High Frequency Solenoid For High-speed Mounter

Size: φ19*11.6mm

plunger:φ7.5mm

Voltage: DC12V

Stroke: 0-2mm

Force: 2-4N

Power : 16W

Current: 1.33A

Resistance: 9Ω

Life: ≥500,000 times

Working cycle: 0.02s on, 0.1s off


Specification download:

横线

Model: SDT-1912S-12A09


The high-frequency pulse solenoid is developed on the basis of tubular solenoid, special imported magnetic material and special design structure are used. It operates more than 5000 times per minute with fast response speed. It is used in high-speed operation equipment, such as placement machines and so on.



High Frequency Solenoid

push solenoid

linear solenoid

tubular solenoid

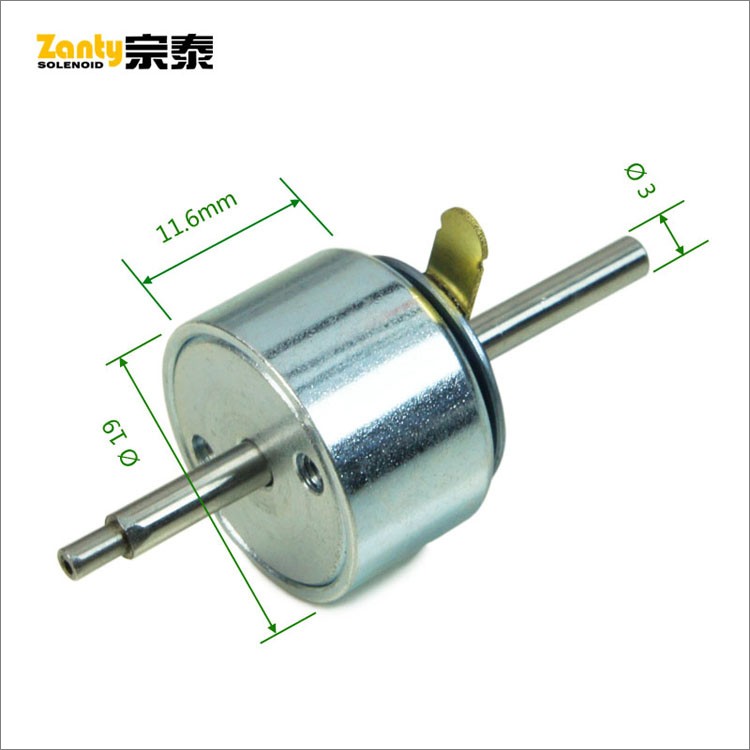

Size: φ19*11.6mm

plunger:φ7.5mm

Voltage: DC12V

Stroke: 0-2mm

Force: 2-4N

Power : 16W

Current: 1.33A

Resistance: 9Ω

Life: ≥500,000 times

Working cycle: 0.02s on, 0.1s off


The high frequency solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Applied to mounting machine


Solenoid For High-speed Mounter



application of solenoid
