SDF-051923 Solenoid Valve For Leg Massager And Vacuum Sealer
SDF-051923 S...

Size: 19*14*12mm

Plunger: φ5mm

Pressure: 187.5mmHg

Flow Rate: 1.7 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 2.28W*3

Current: 0.19A

Resistance: 63Ω

Working Cycle: 10s On, 10s Off


SDF-052021 Solenoid Valve For Vacuum Sealer And Leg Massager
SDF-052021 S...

Size: 17.8*14*12mm

Plunger: φ5mm

Pressure: -380mmHg

Flow Rate: 8 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 1.5W

Current: 0.125A

Resistance: 96Ω

Working Cycle: 1s On, 1s Off

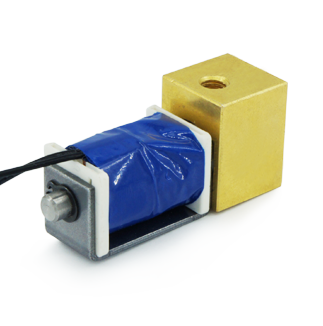

SDF-0527 Solenoid Valve For Portable Oxygen Bottles in Ambulances
SDF-0527 Sol...

Size: 47.2*16*21mm

Plunger: φ5mm

Pressure: 0.35-0.4Mpa

Medium: Oxygen

Voltage: DC3V

Power : 2W

Current: 0.67A

Resistance: 4.5Ω

Working Cycle: 0.1s On, 0.9s Off

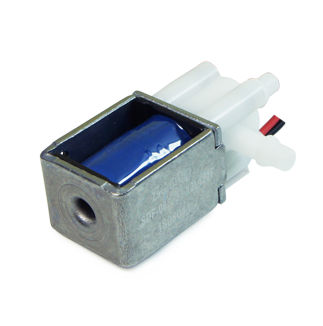

SDF-062621 Solenoid Valve For Vacuum Sealer And Oxygen Machine
SDF-062621 S...

Size: 25.4*20*16mm

Plunger: φ6mm

Pressure: 800-1000mmHg

Flow Rate: 8L/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 1.2W

Current: 0.1A

Resistance: 120Ω

Working Cycle: Continuous Power

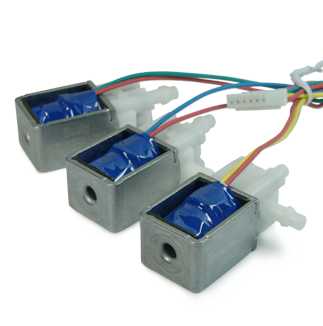

SDF-062623 Solenoid Valve For Massage Equipment / Vacuum Sealer
SDF-062623 S...

Size: 25.4*20*16mm

Plunger: φ6mm

Voltage: DC12V

Pressure: 300mmHg

Flow Rate: 8L/Min

Medium: Oxygen, Air

Power : 2.28W*3

Current: 0.19A*3

Resistance: 63Ω

Working Cycle: 30s On, 30s Off


SDF-0626L Solenoid Valve For Massage Equipment / Vacuum Sealer
SDF-0626L So...

Size: 25.4*20*16mm

plunger：φ6mm

Voltage: DC12V

Pressure: -300mmHg

Medium: Oxygen, Air

Power : 2.28W

Current: 0.19A

Resistance: 63Ω

Life: ≥300,000 times

Working cycle: 1s on, 1s off

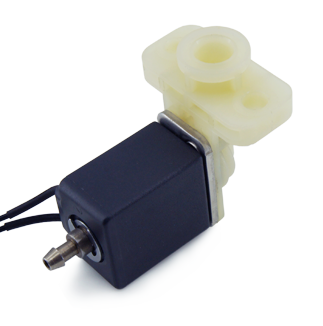

SDF-062721 Solenoid Valve For Aerated Drinks Machine
SDF-062721 S...

Size: 27.1*16.5*23mm

Plunger: φ6.5mm

Pressure: 70PSI

Flow Rate: 14L/Min

Medium: CO2

Voltage: DC12V

Power : 2W

Current: 0.17A

Resistance: 72Ω

Working Cycle: Continuous Power


SDF-0730L Solenoid Valve For Oxygen Generator / Vacuum Sealer
SDF-0730L So...

Size: 30.3*23.2*19mm

Plunger: φ7mm

Pressure: 450mmHg

Flow Rate: 8 Liters/Min

Medium: Oxygen, Air

Voltage: DC12V

Power : 2.7W*2

Current: 0.23A

Resistance: 53Ω

Working cycle: 1s on, 1s off

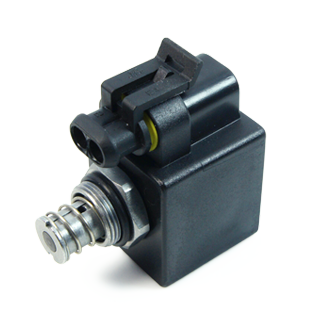

SDF-1031L Solenoid Valve For Diesel Engine Filter System
SDF-1031L So...

Size: 31*29.8*34.5mm

Plunger: φ12.55mm

Exhaust Speed: ≥50LPM

Medium: CO2, Exhaust

Voltage: DC24V

Power : 8W

Current: 0.34A

Resistance: 71.5Ω

Working Cycle: Continuous Power

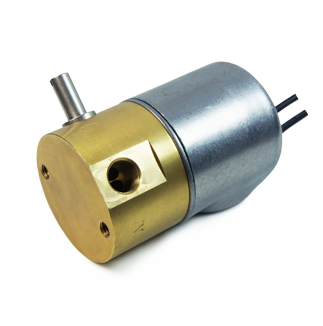

SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L So...

Size: φ42*70.1mm

Plunger: φ11.4mm

Exhaust Speed: ≥50LPM

Medium: Oxygen, Air

Voltage: DC12V

Power : 9.6W

Current: 0.8A

Resistance: 15Ω

Working Cycle: Continuous Power


SDF-0625 Water Solenoid Valve For Intelligent Valve Switch
SDF-0625 Wat...

Size: 76*44*80mm

plunger：φ6mm

Voltage: DC24V

Medium: Water

Power : 5.76W

Current: 0.24A

Resistance: 100Ω

Working cycle: 5% Power On


SDF-083731 Water Solenoid Valve Ink Control for Printers
SDF-083731 W...

Size: 66.5*26*20mm

Plunger: φ8mm

Pressure: 200mmHg

Flow Rate: ≥260ml/Min

Medium: Ink

Voltage: DC24V

Power : 3.4W

Current: 0.14A

Resistance: 170Ω

Working Cycle: Continuous Power
