SDF-083731 Water Solenoid Valve Ink Control for Printers

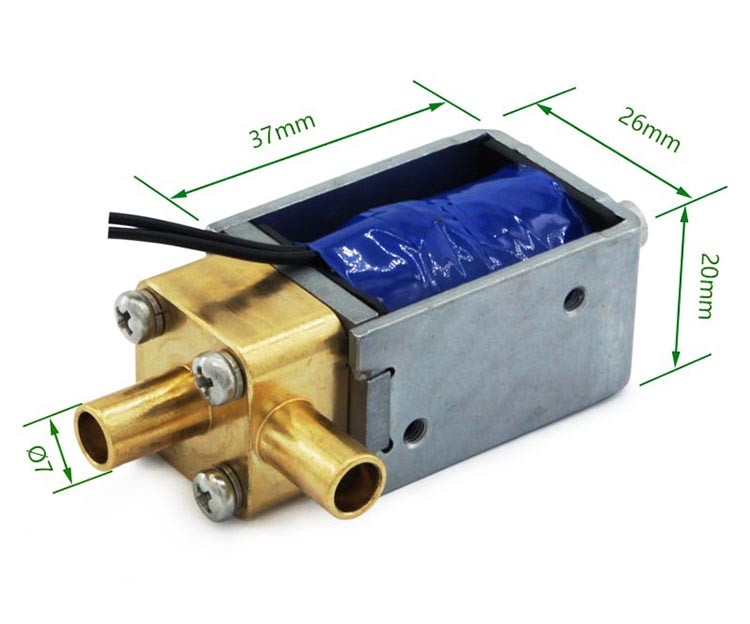

Size: 66.5*26*20mm

Plunger: φ8mm

Pressure: 200mmHg

Flow Rate: ≥260ml/Min

Medium: Ink

Voltage: DC24V

Power : 3.4W

Current: 0.14A

Resistance: 170Ω

Working Cycle: Continuous Power


Specification download:

横线

Model: SDF-083731-24A170


The working principle of liquid solenoid valve and gas solenoid valve is the same, but the working medium is different. Liquid solenoid valve uses liquid, such as tap water, waste water and ink. Gas solenoid valves use air, oxygen and CO2.



liquid solenoid valve

liquid solenoid valve

liquid solenoid valve

liquid solenoid valve


Size: 66.5*26*20mm

Plunger: φ8mm

Pressure: 200mmHg

Flow Rate: ≥260ml/Min

Medium: Ink

Voltage: DC24V

Power : 3.4W

Current: 0.14A

Resistance: 170Ω

Working Cycle: Continuous Power


The water solenoid valve is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



water solenoid valve

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
