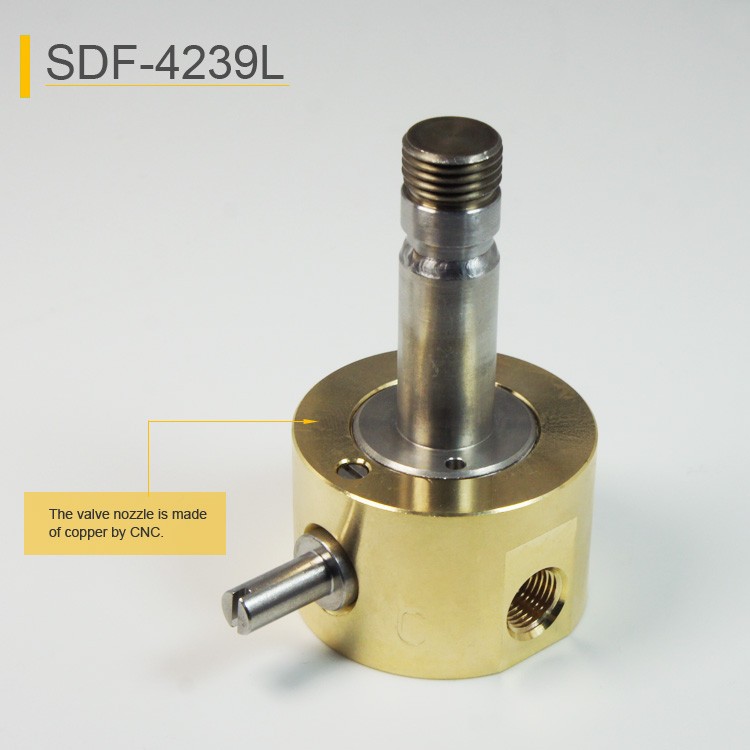

SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L Solenoid Valve For Medical Oxygen Ventilator
SDF-4239L Solenoid Valve For Medical Oxygen Ventilator

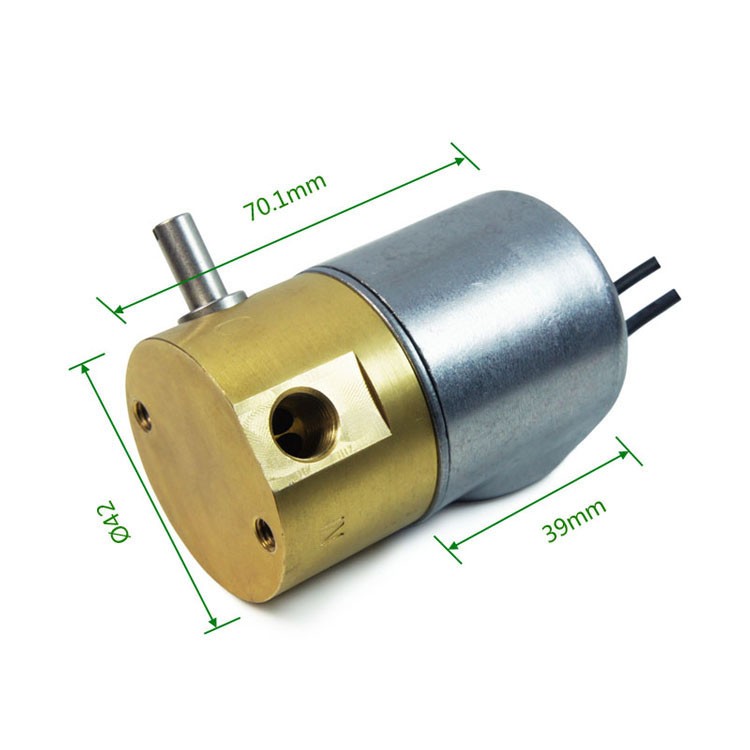

Size: φ42*70.1mm

Plunger: φ11.4mm

Exhaust Speed: ≥50LPM

Medium: Oxygen, Air

Voltage: DC12V

Power : 9.6W

Current: 0.8A

Resistance: 15Ω

Working Cycle: Continuous Power


Specification download:

横线

Model: SDF-4239L-12A15


There are two types of solenoid valve: normally closed and normally open. Due to its small size, simple exhaust pipe design and low cost, it can work normally under zero pressure difference and micro-vacuum. It is used in oxygen concentrators, massage chairs, sealing machines of vacuum package with its reliable performance and simple structure.



  Gif animation of solenoid

Solenoid Air Valve



  Demo video of solenoid in YouTube

dc 12v solenoid valve

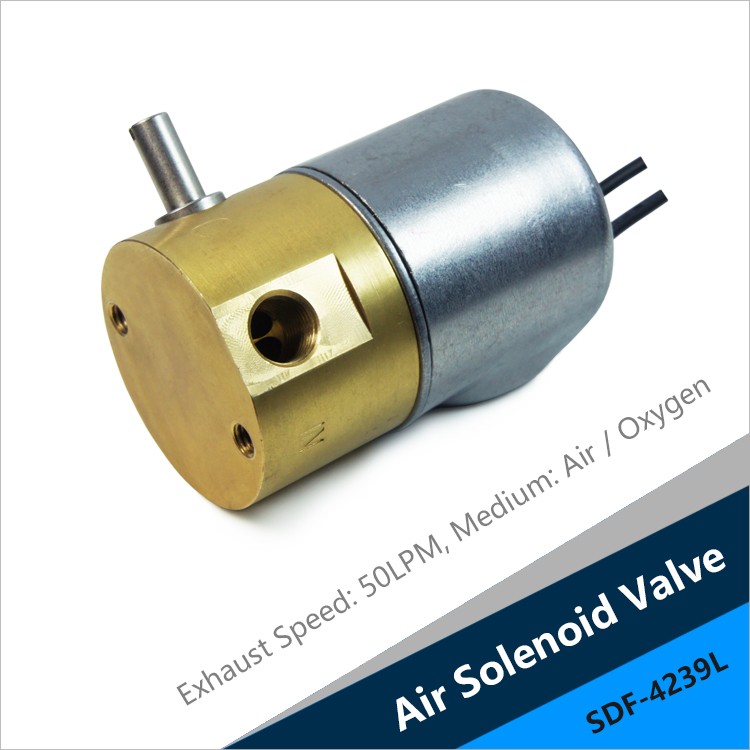

  Real photos of solenoid

Air Solenoid Valve

Solenoid Valve For Medical Oxygen Ventilator

Gas Solenoid Valve

Solenoid Valve

Solenoid Valve

Solenoid Valves


Size: φ42*70.1mm

Plunger: φ11.4mm

Exhaust Speed: ≥50LPM

Medium: Oxygen, Air

Voltage: DC12V

Power : 9.6W

Current: 0.8A

Resistance: 15Ω

Working Cycle: Continuous Power


The air solenoid valve is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



solenoid valve


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
