SDO-0420L Mini Linear Push Pull Solenoids For Smart Door Locks

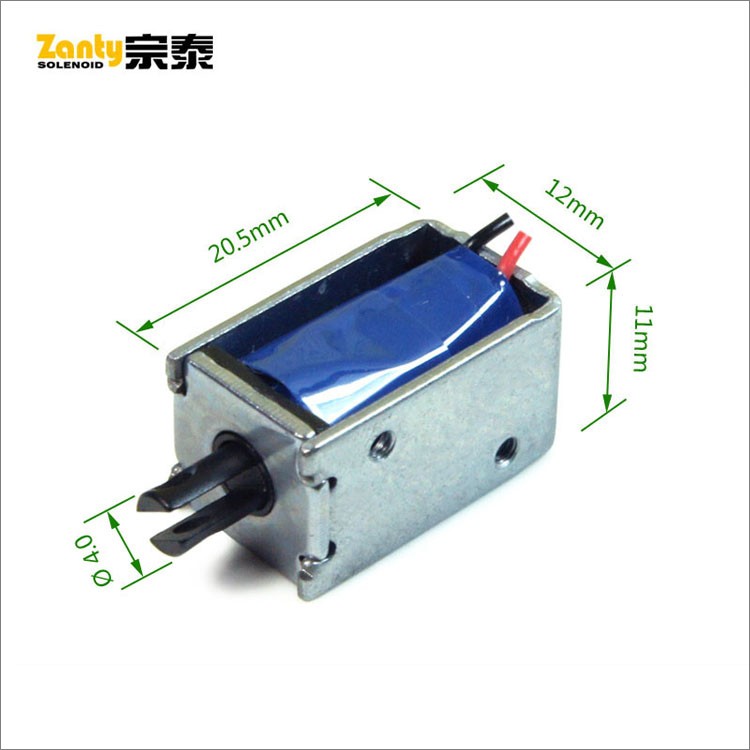

Size: 20.5*12*11mm

plunger：φ4mm

Voltage: DC12V

Stroke: 0-5mm

Force: 0.2-2N

Power : 13W

Current: 1.09A

Resistance: 11Ω

Life: ≥1000,000 times

Working cycle: 0.5s on, 2s off

Specification download:

PDF

横线

Description
Parameter
Customization
Application

Model: SDO-0420L-12A11

The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.

Gif animation of solenoid

push pull solenoid

Demo video of solenoid in YouTube

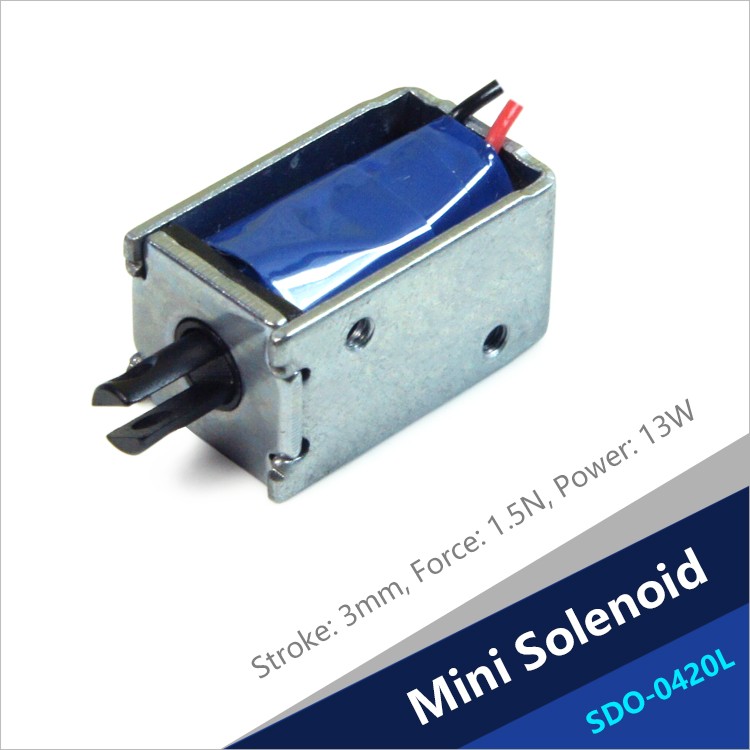

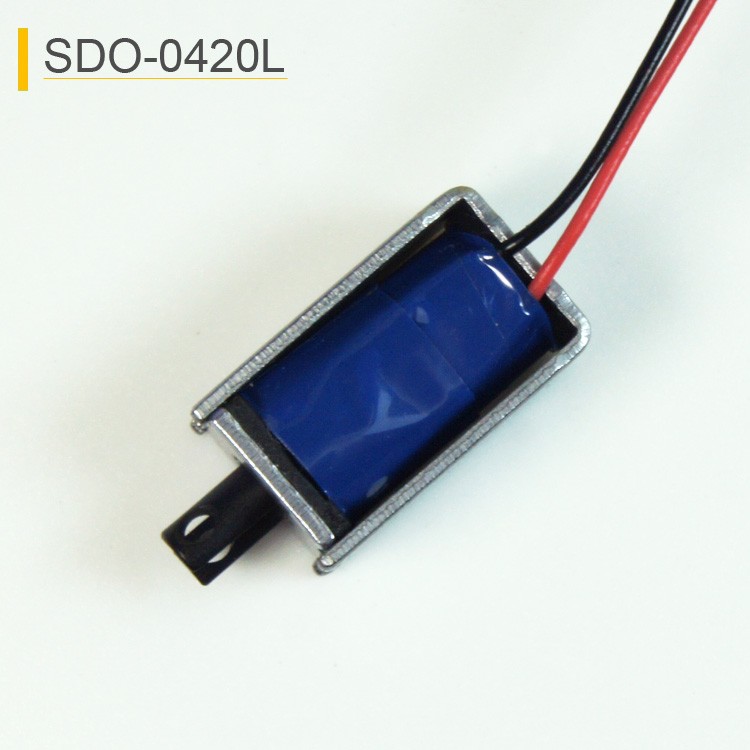

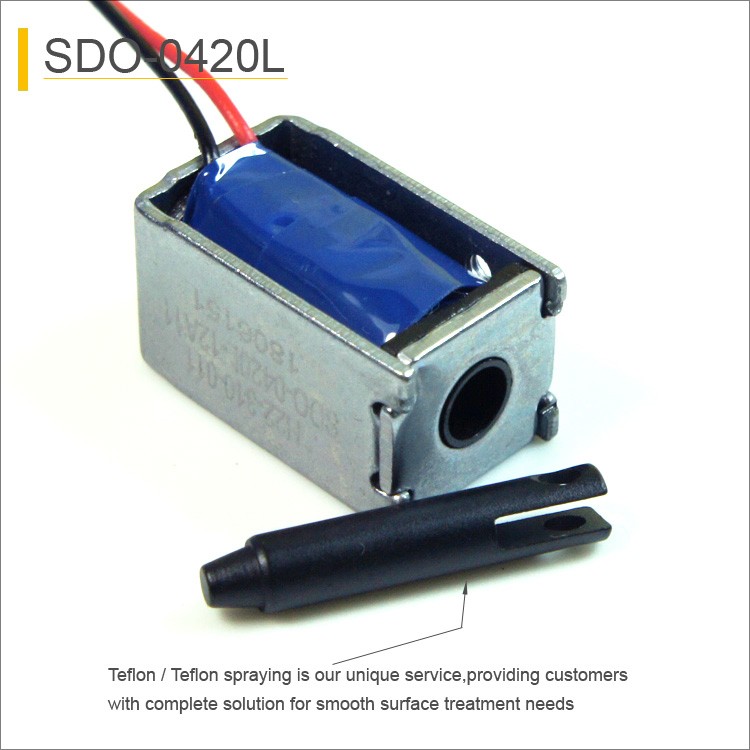

Real photos of solenoid

Mini Solenoid

Pull Solenoid

Solenoids For Smart Door Locks

small solenoid

Size: 20.5*12*11mm

plunger：φ4mm

Voltage: DC12V

Stroke: 0-5mm

Force: 0.2-2N

Power : 13W

Current: 1.09A

Resistance: 11Ω

Life: ≥1000,000 times

Working cycle: 0.5s on, 2s off

The solenoid is non-standard custom, we can customize products according to your needs.

If you have custom requirements, please send an email to: sales@zanty.com, Thank you!

Here are tips that are customized solenoid.

SDO-0420L Mini Linear Push Pull Solenoids For Smart Door Locks Open Frame Solenoid SDO-0420L_Specification.pdf solenoid specification

Drawing of solenoid

solenoid

Force and stroke of solenoid

force and stroke of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.

Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.

Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.

Mini linear push pull solenoids applied to smart door locks

solenoid application
