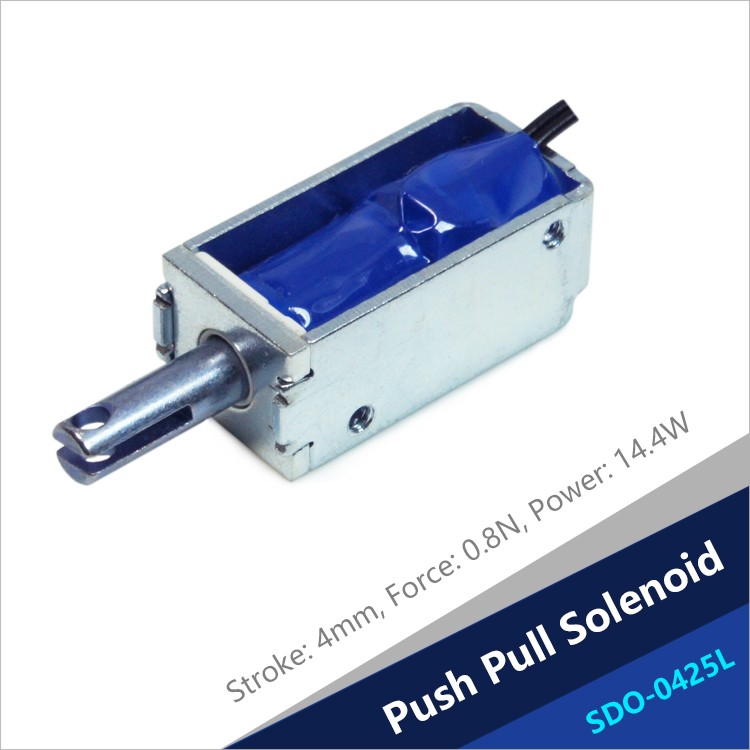

SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader
SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader
SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader
SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader
SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader
SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader

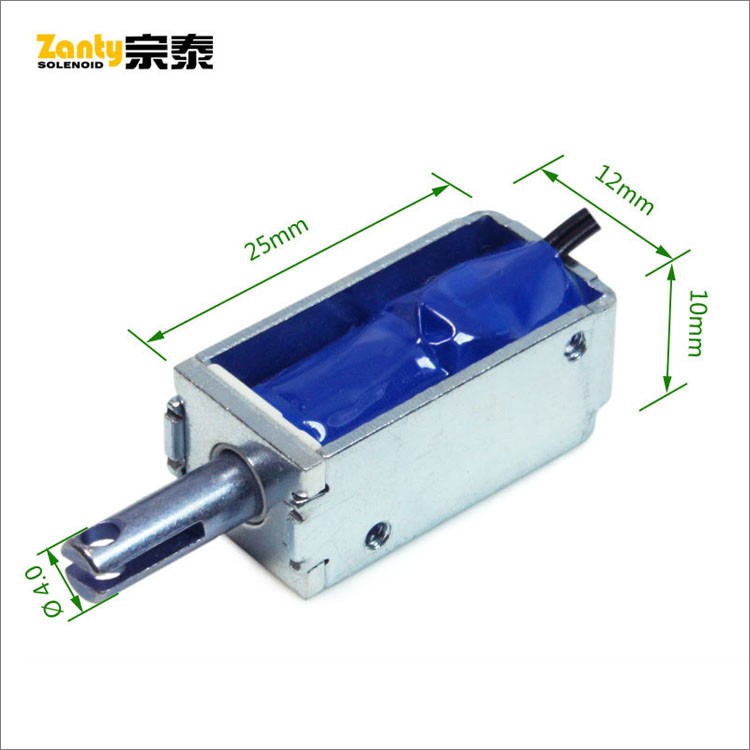

Size: 25*12*10mm

plunger:φ4mm

Voltage: DC24V

Stroke: 0-5mm

Force: 0.8-2N

Power : 14.4W

Current: 0.6A

Resistance: 40Ω

Life: ≥200,000 times

Working cycle: 0.1s on, 1s off


Specification download:

横线

Model: SDO-0425L-24A40


The  open frame solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull type solenoid




  Demo video of solenoid in YouTube


open frame pull solenoid

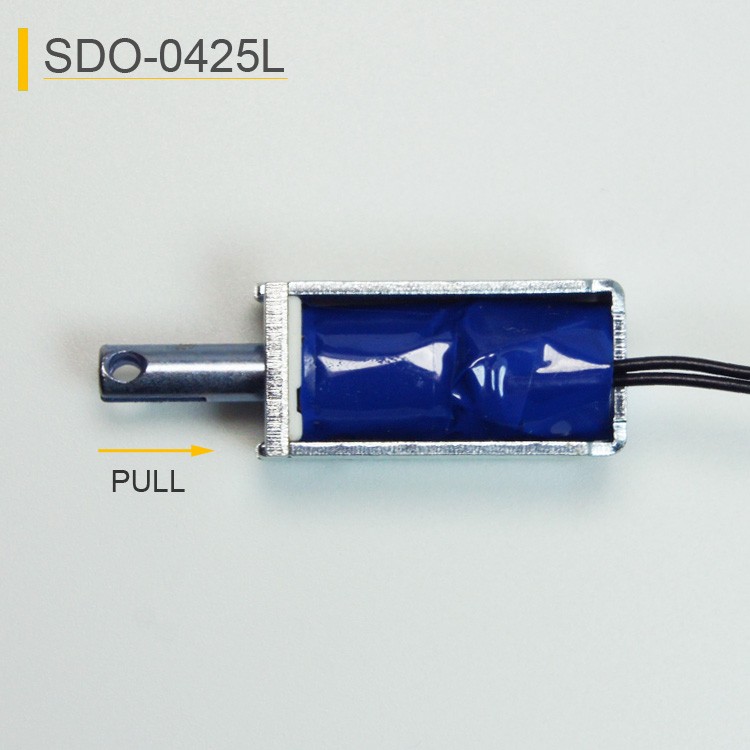

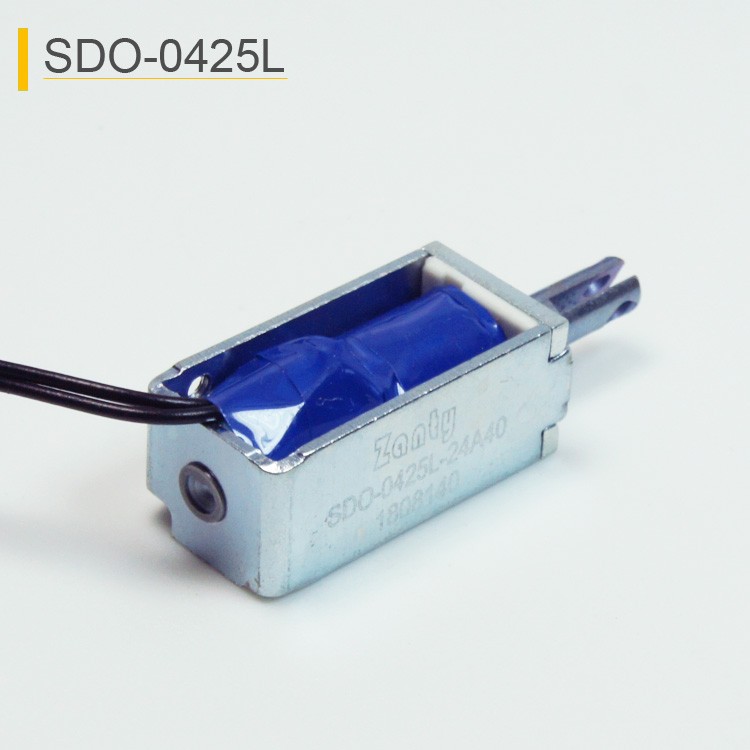

  Real photos of solenoid


Mini Push Pull Solenoid

Pull Solenoid

solenoid

small solenoid



Size: 25*12*10mm

plunger:φ4mm

Voltage: DC24V

Stroke: 0-5mm

Force: 0.8-2N

Power : 14.4W

Current: 0.6A

Resistance: 40Ω

Life: ≥200,000 times

Working cycle: 0.1s on, 1s off


The push pull solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader  Open Frame Solenoid SDO-0425L_Specification.pdf     SDO-0425L Open Frame Linear Push Pull Solenoid For Card Reader





  Drawing of solenoid


pull type solenoid




  Force and stroke of solenoid


force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoids For Card Reader


applications of solenoid
