Size: 20*16*13mm

plunger:φ5mm

Voltage: DC12V

Stroke: 0-4mm

Force: 0.8-3.5N

Power : 9W

Current: 0.75A

Resistance: 16Ω

Working Cycle: 0.5s On, 1.5s Off



Specification download:

横线

Model: SDO-0520S-12A16


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


push type solenoid




  Demo video of solenoid in YouTube


Linear Push Solenoid

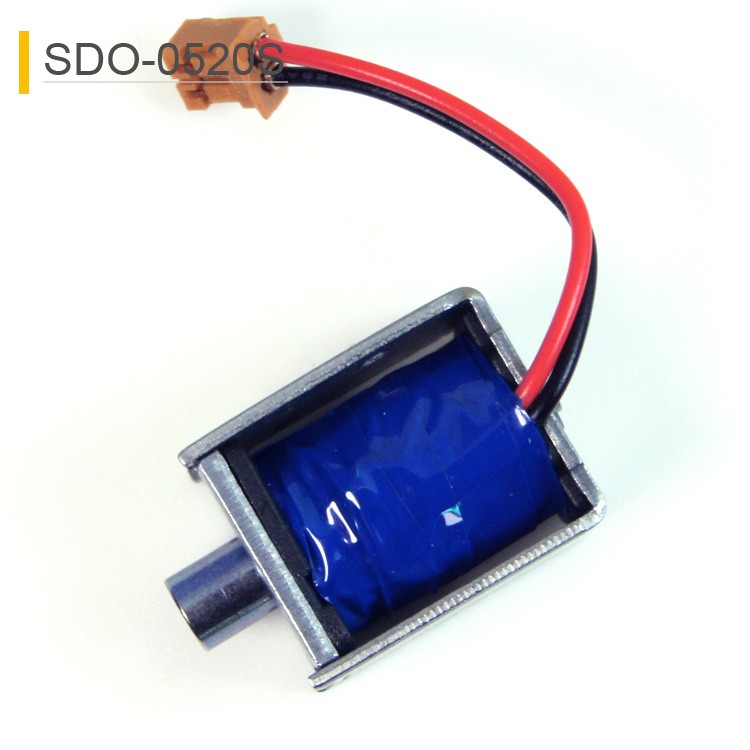

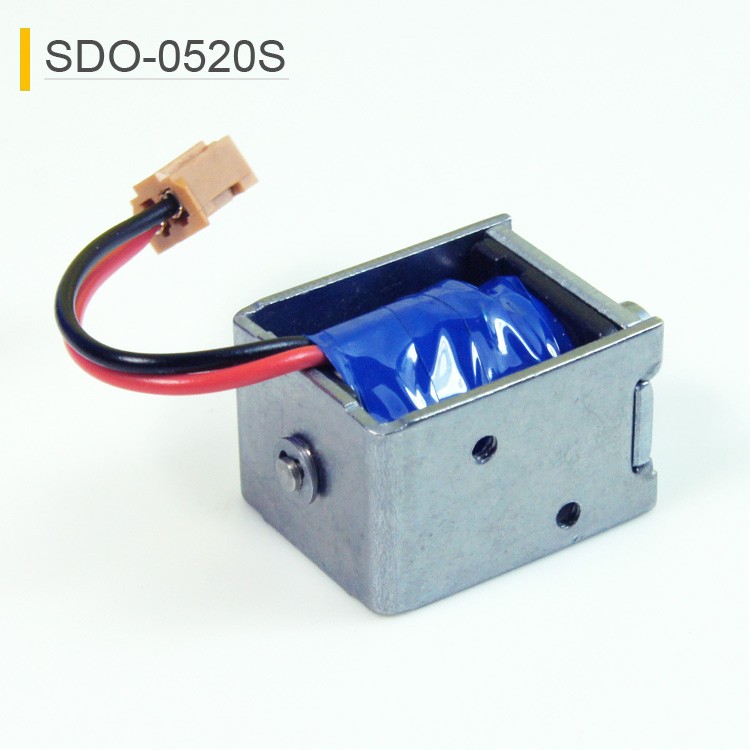

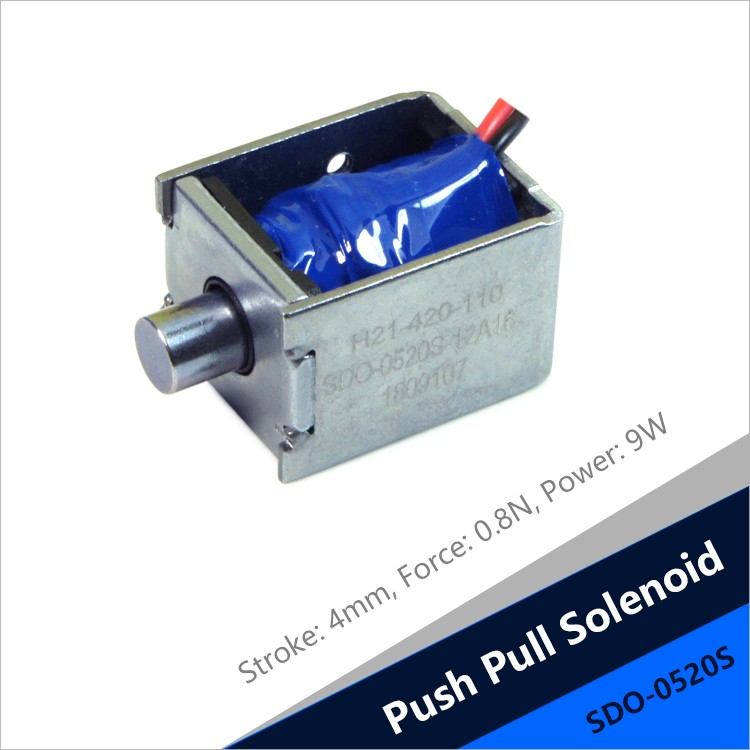

  Real photos of solenoid


Solenoid For Textile Machine

solenoid

push solenoid

open frame solenoid

small open frame solenoid

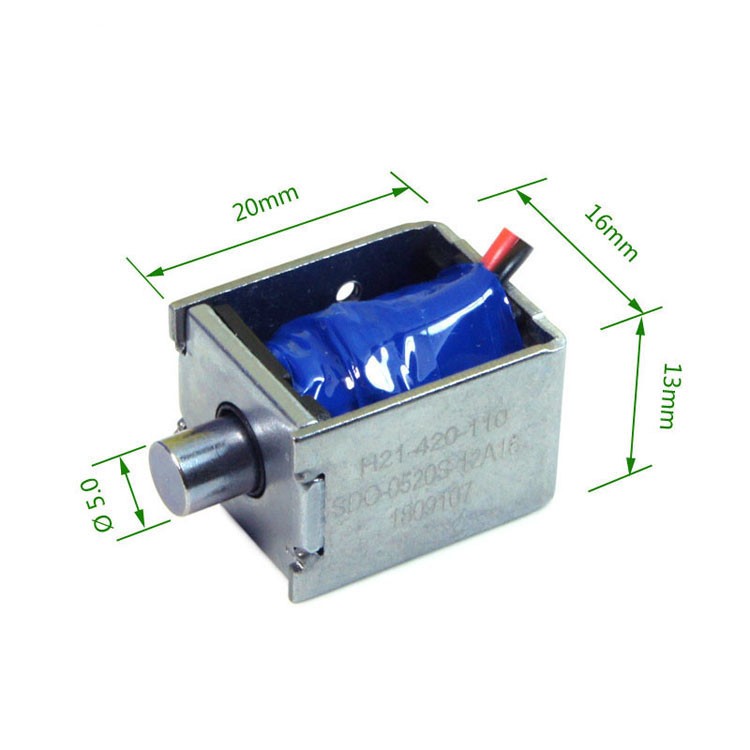

Size: 20*16*13mm

plunger:φ5mm

Voltage: DC12V

Stroke: 0-4mm

Force: 0.8-3.5N

Power : 9W

Current: 0.75A

Resistance: 16Ω

Working Cycle: 0.5s On, 1.5s Off



The push linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0520S Open Frame Push Linear Solenoid For Textile Machine  Open Frame Solenoid SDO-0520S_Specification.pdf     Specification of solenoid




  Drawing of solenoid


push solenoid




  Force and stroke of solenoid


force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
