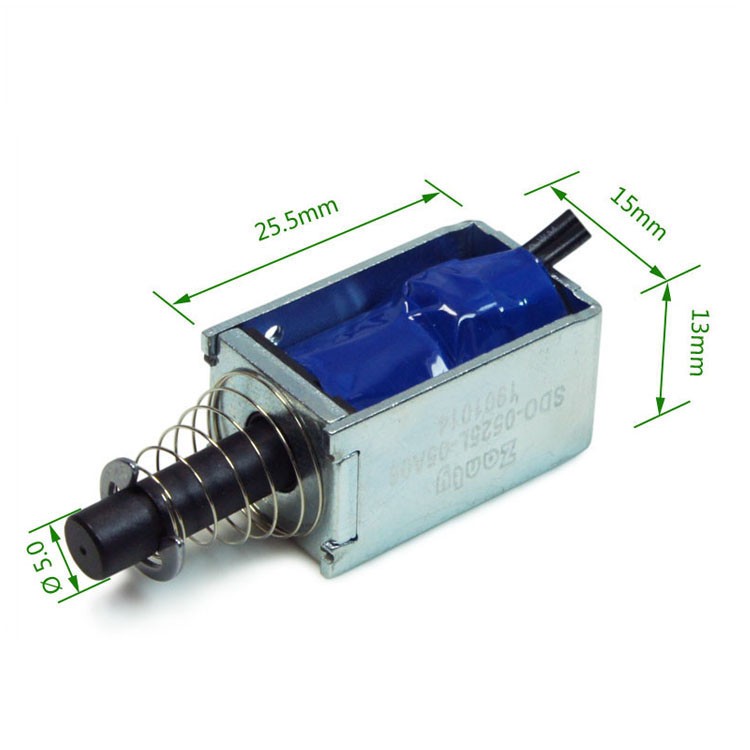

Size: 25.5 *15*13mm

plunger:φ5mm

Voltage: DC5V

Stroke: 0-6mm

Force: 0.3-3N

Power : 4.16W

Current: 0.83A

Resistance: 6Ω

Working Cycle: 5s On, 10s Off


Specification download:

横线

Model: SDO-0525L-05A06


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


push pull solenoid




  Demo video of solenoid in YouTube


pull type solenoid

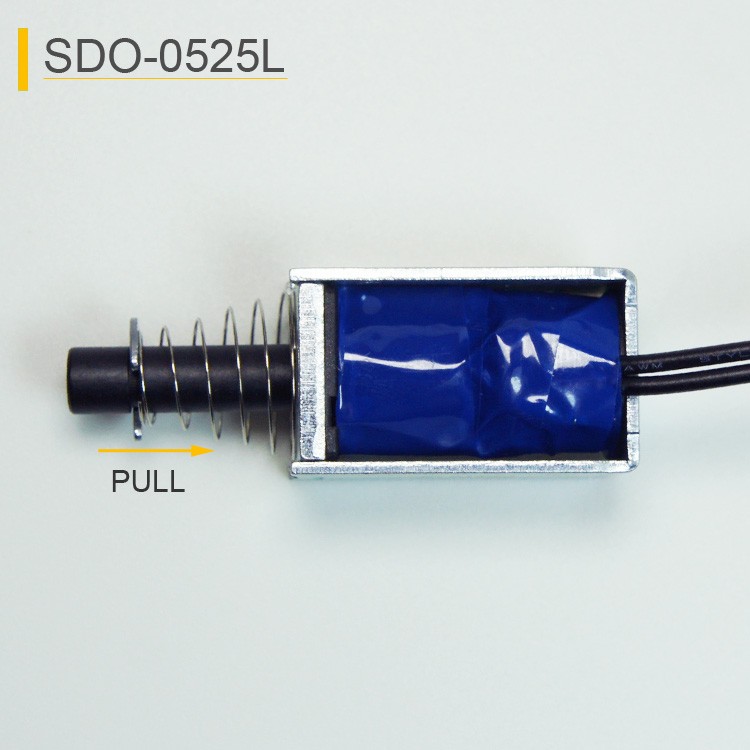

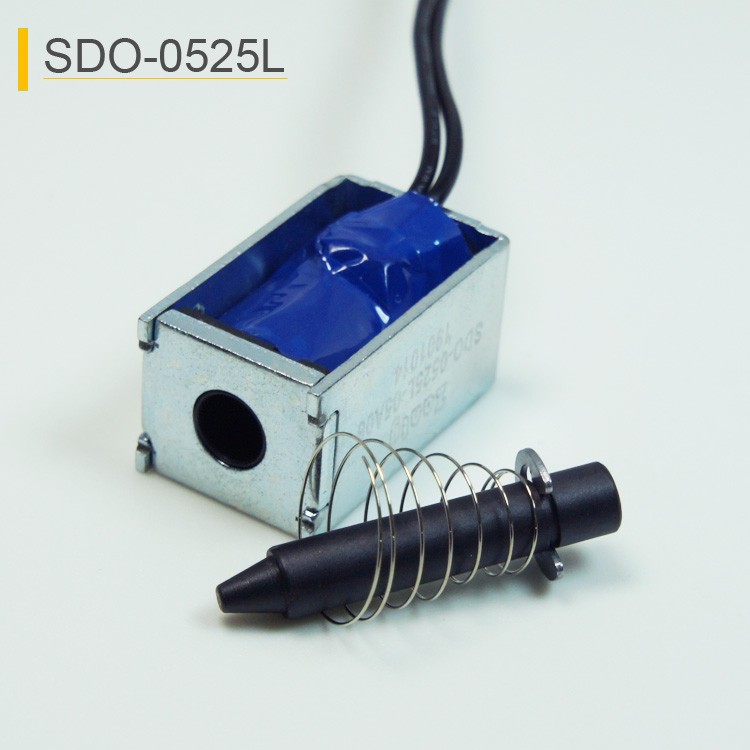

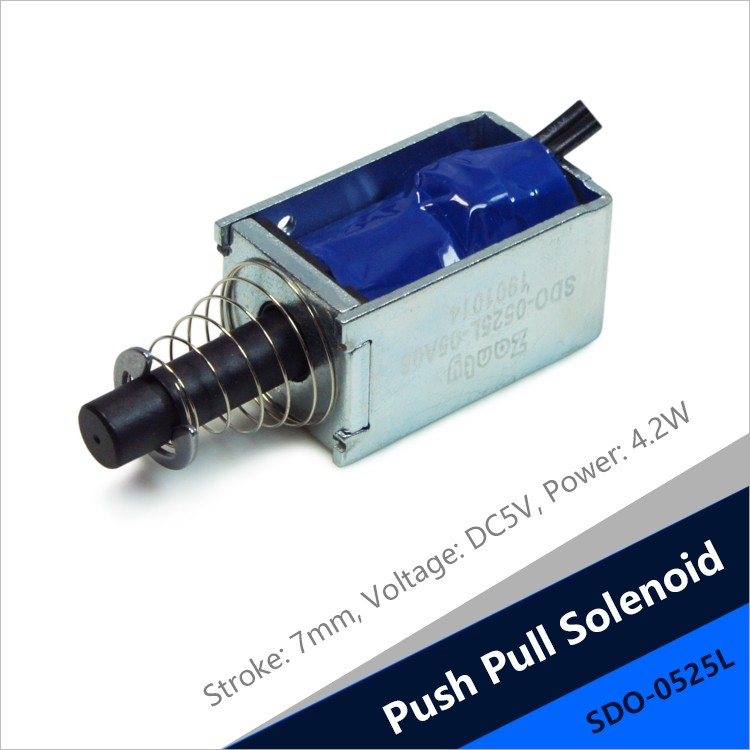

  Real photos of solenoid


Pull Solenoid For Card Reader

Pull Solenoid

Solenoid

open frame solenoid

mini solenoid




Size: 25.5 *15*13mm

plunger:φ5mm

Voltage: DC5V

Stroke: 0-6mm

Force: 0.3-3N

Power : 4.16W

Current: 0.83A

Resistance: 6Ω

Working Cycle: 5s On, 10s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0525L Open Frame Linear Pull Solenoid For Card Reader  Open Frame Solenoid SDO-0525L_Specification.pdf     SDO-0525L Open Frame Linear Pull Solenoid For Card Reader




  Drawing of solenoid

open frame solenoid



  Force and stroke of solenoid

force and stroke of solenoid




Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
