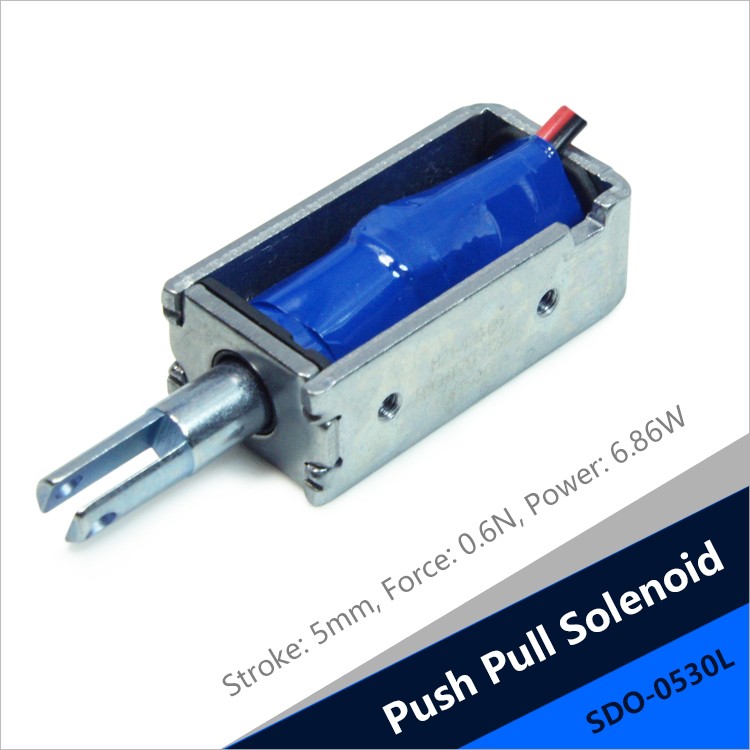

SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader
SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader
SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader
SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader
SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader
SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader

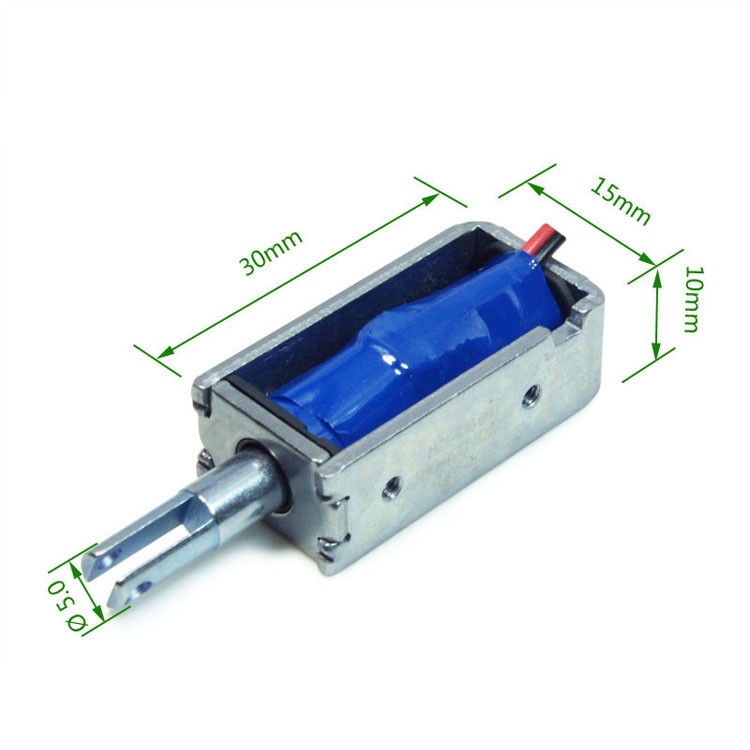

Size: 30 *15*10mm

Plunger: φ5mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.3-3N

Power: 6.86W

Current: 0.57A

Resistance: 21Ω

Working Cycle: 0.55s On, 0.5s Off


Specification download:

横线

Model: SDO-0530L-12A21


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull type solenoid




  Demo video of solenoid in YouTube


push pull solenoid

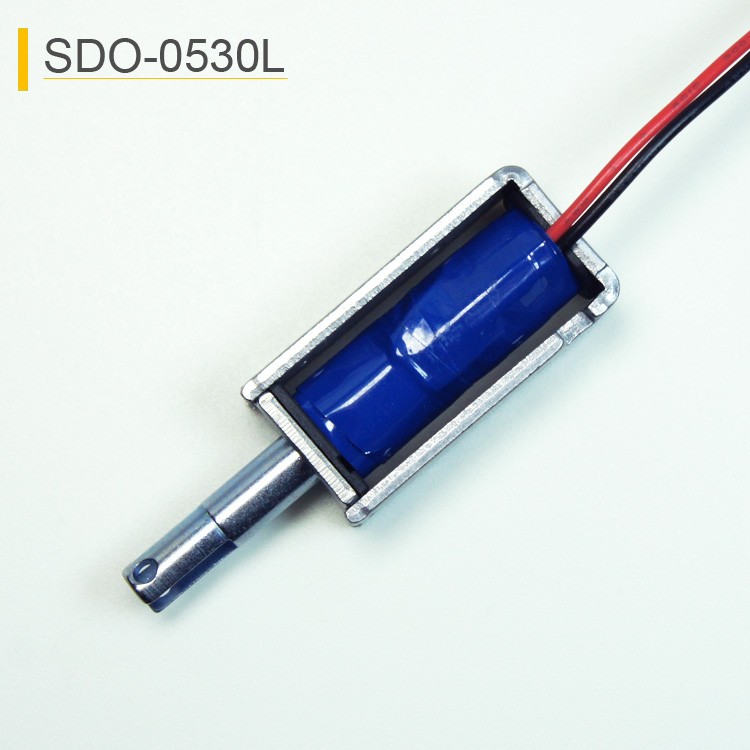

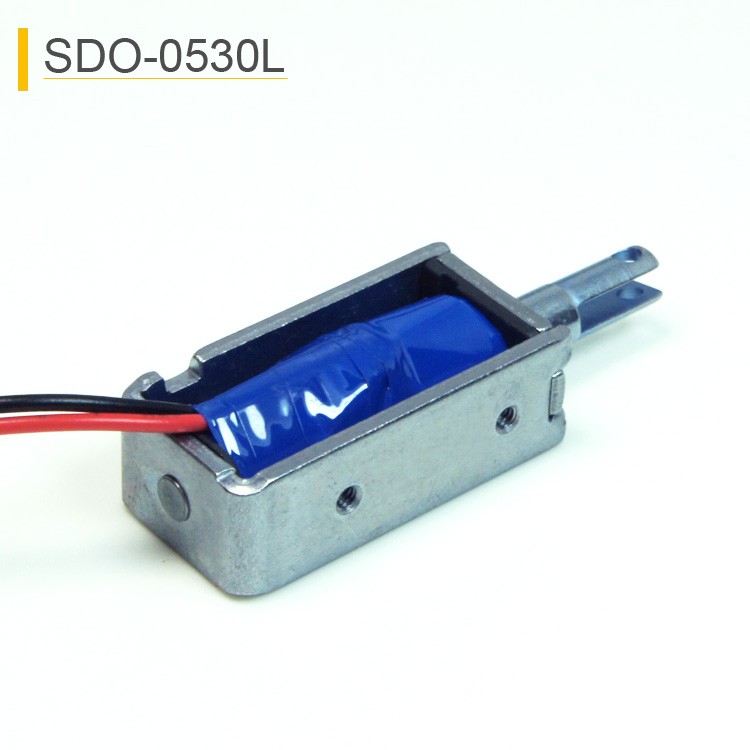

  Real photos of solenoid


Pull Mini Solenoid

solenoid

Mini Solenoid

linear solenoid

small solenoid



Size: 30 *15*10mm

Plunger: φ5mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.3-3N

Power: 6.86W

Current: 0.57A

Resistance: 21Ω

Working Cycle: 0.55s On, 0.5s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader  Open Frame Solenoid SDO-0530L_Specification.pdf     SDO-0530L Open Frame Miniature Push-Pull Solenoid For Card Reader




  Drawing of solenoid


open frame solenoid




  Force and stroke of solenoid


force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Card Reader


application of solenoid
