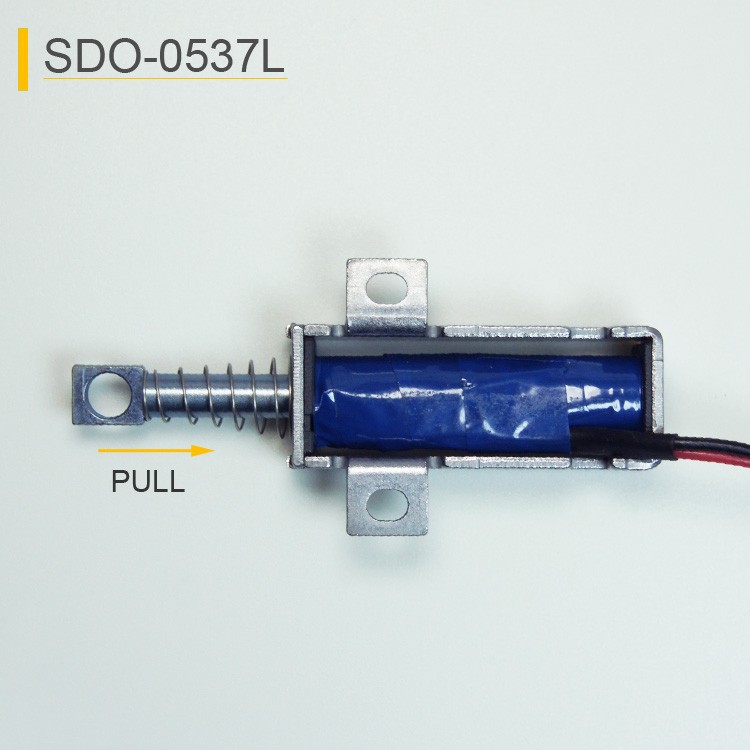

SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks
SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks
SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks
SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks
SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks
SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks

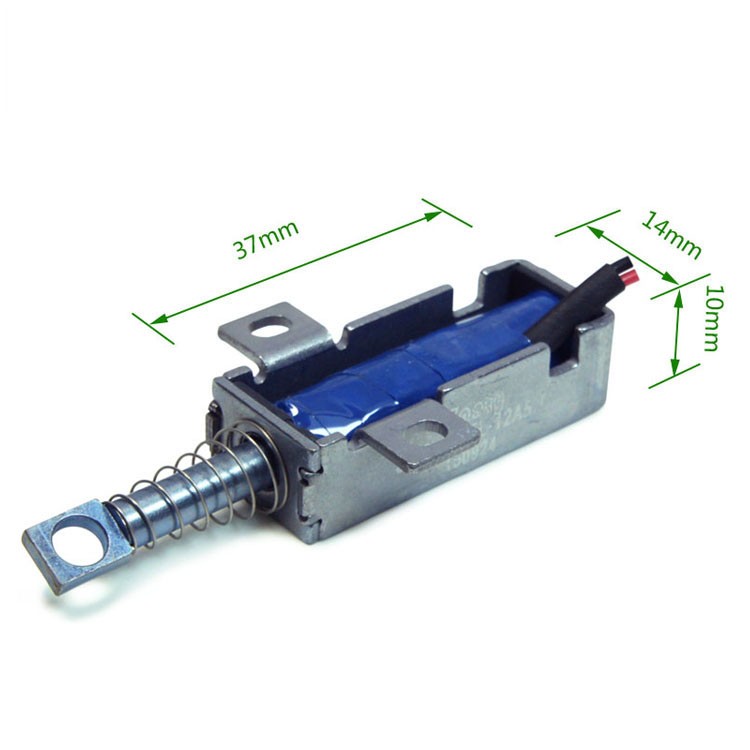

Size: 37*14*10mm

Plunger: φ4.4mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.8-3N

Power: 25.3W

Current: 2.1A

Resistance: 5.7Ω

Life: ≥200,000 times

Working Cycle: 0.2s On, 10s Off


Specification download:

横线

Model: SDO-0537L-12A5.7


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull type solenoid




  Demo video of solenoid in YouTube


push pull solenoid




  Real photos of solenoid


Solenoid


pull solenoid


open frame solenoid


Pull Solenoid For Supermarket Locker Electronic Locks


Solenoid For Electronic Locks

small solenoid


Size: 37*14*10mm

Plunger: φ4.4mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.8-3N

Power: 25.3W

Current: 2.1A

Resistance: 5.7Ω

Life: ≥200,000 times

Working Cycle: 0.2s On, 10s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks  Open Frame Solenoid SDO-0537L_Specification.pdf     SDO-0537L Pull Solenoid For Supermarket Locker Electronic Locks




  Drawing of solenoid


push pull solenoid




  Force and stroke of solenoid

force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Pull Solenoid For Supermarket Locker Electronic Locks

application of solenoid
