SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock
SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock
SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock
SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock
SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock
SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock

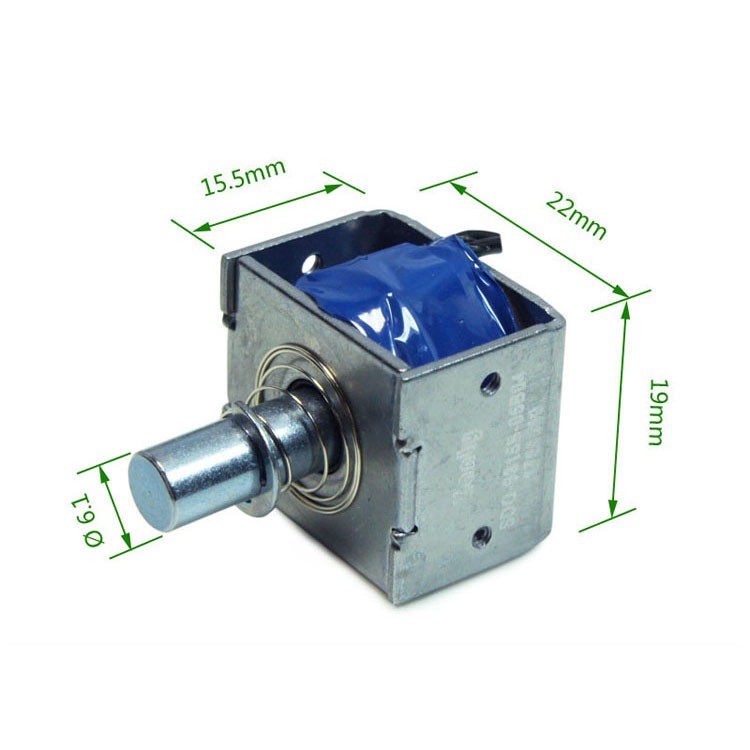

Size: 15.5 *22*19mm

Plunger: φ6.1mm

Voltage: DC5V

Stroke: 0-5mm

Force: 0.5-3N

Power: 6.25W

Current: 1.25A

Resistance: 4Ω

Life: ≥200,000 times

Working Cycle: Continuous Power (High Voltage Start Low Voltage Hold)


Specification download:

横线

Model: SDO-0615S-05B04


The frame push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


mini push solenoid




  Demo video of solenoid in YouTube


push pull solenoid

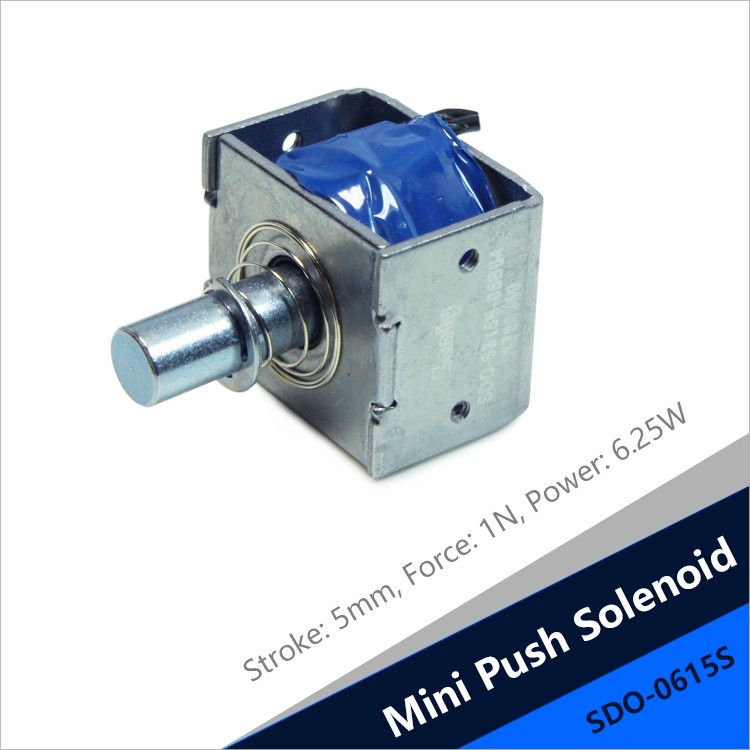

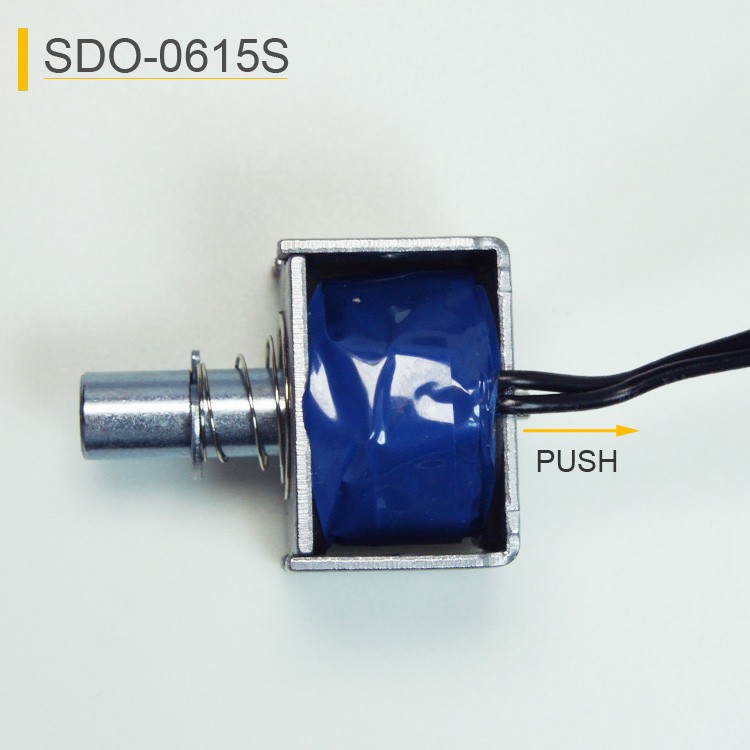

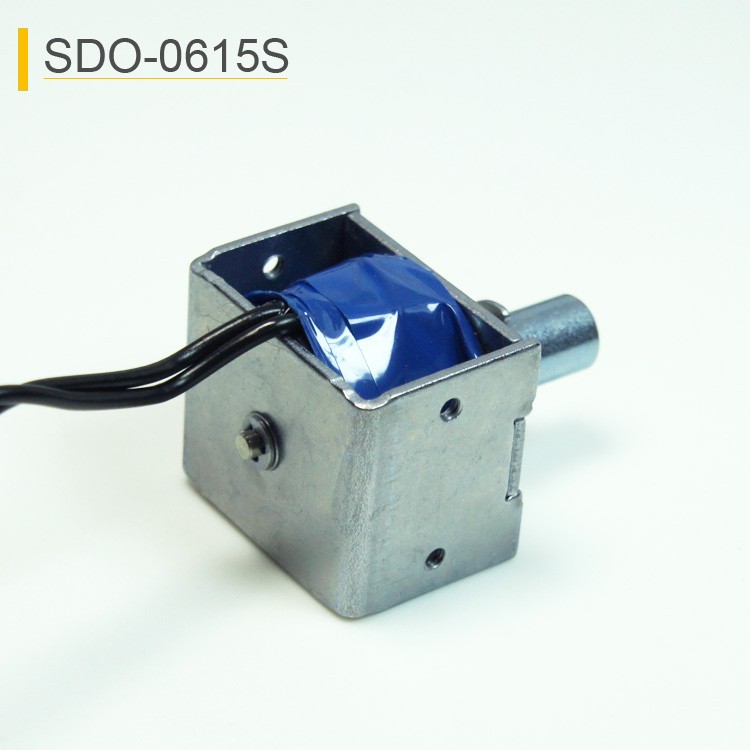

  Real photos of solenoid


mini solenoid

push solenoid

solenoid

linear solenoid


Size: 15.5 *22*19mm

Plunger: φ6.1mm

Voltage: DC5V

Stroke: 0-5mm

Force: 0.5-3N

Power: 6.25W

Current: 1.25A

Resistance: 4Ω

Life: ≥200,000 times

Working Cycle: Continuous Power (High Voltage Start Low Voltage Hold)


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock  Open Frame Solenoid SDO-0615S_Specification.pdf     SDO-0615S Push Mini Solenoid For Shared Power Bank Rental Cabinet Electronic Lock




  Drawing of solenoid


small push solenoid




  Force and stroke of solenoid


force and stroke of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.

Solenoid For Shared Power Bank Rental Cabinet Electronic Lock

application of solenoid
