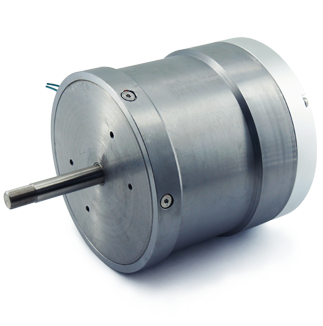

SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor
SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor
SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor
SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor
SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor
SDT-158153S Giant Powerful Tubular Push Solenoid For Large Compressor

Size: φ158*153mm

Plunger: φ50mm

Voltage: DC220V

Force: 15kg(DC21V)

Holding Force: 160kg(DC21V)

Power: 1210W

Current: 5.5A

Resistance: 40Ω

Life: ≥10,000,000 times

Working Cycle: 0.06s On, 0.06s Off


Specification download:

横线

Model: SDT-158153S-220A40


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.




  Demo video of solenoid in YouTube

dc 220v solenoid

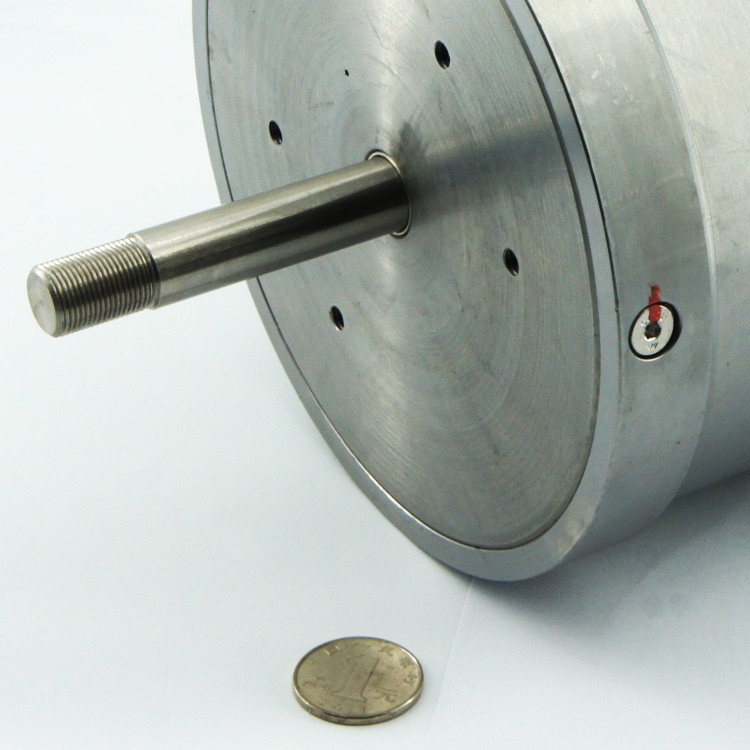

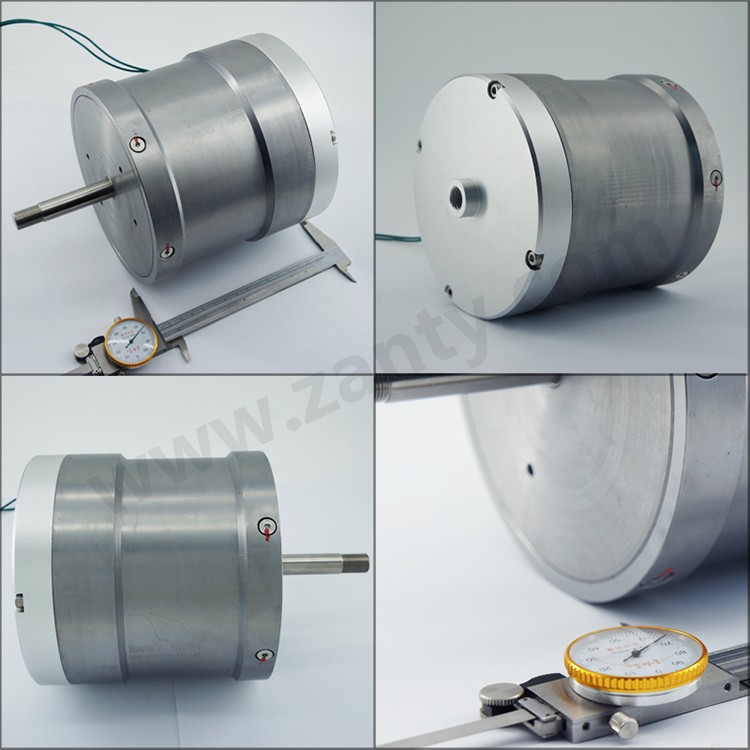

  Real photos of solenoid

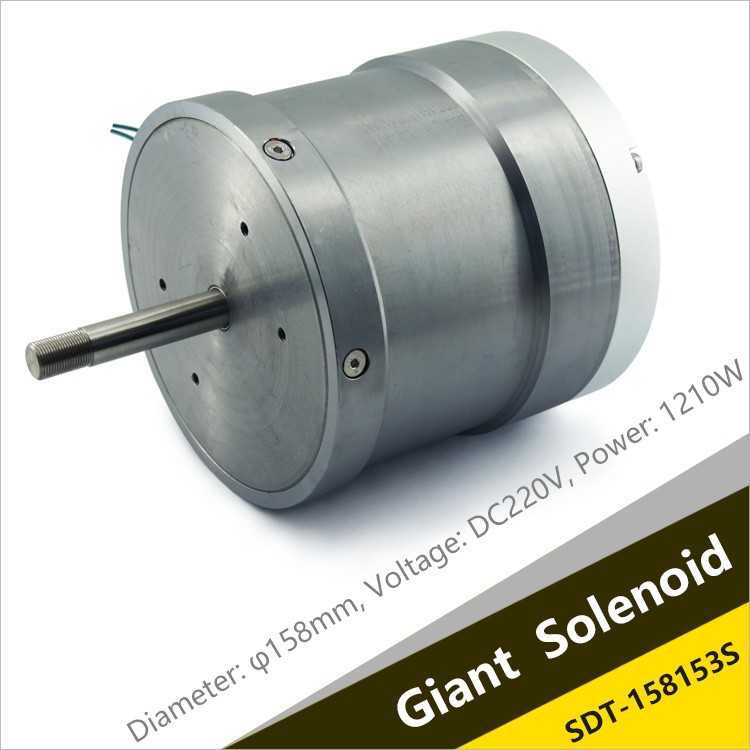

Giant Powerful Solenoid

Powerful Tubular Solenoid

Solenoid For Large Compressor

Giant Tubular Push Solenoid

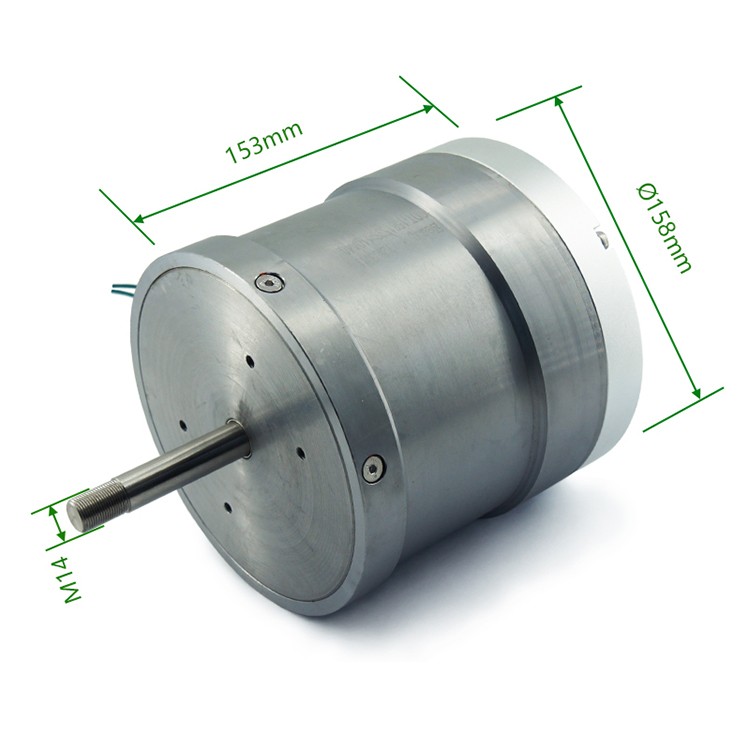

Size: φ158*153mm

Plunger: φ50mm

Voltage: DC220V

Force: 15kg(DC21V)

Holding Force: 160kg(DC21V)

Power: 1210W

Current: 5.5A

Resistance: 40Ω

Life: ≥10,000,000 times

Working Cycle: 0.06s On, 0.06s Off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.


size of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



application of solenoid
