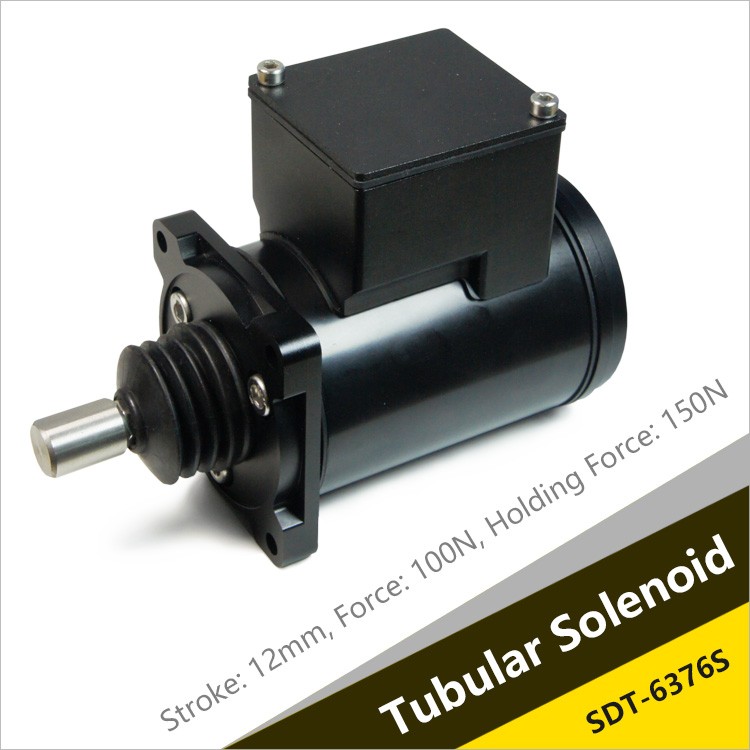

SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment
SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment
SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment
SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment
SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment
SDT-6376S Large And Powerful Tubular Solenoid For Rail Transit Automation Equipment

Size: φ63*98.1mm

Plunger: φ25mm

Voltage: DC24V

Stroke: 0-20mm

Force: 50-150N

Power: 125W

Current: 5.2A

Resistance: 4.65Ω

Life: ≥10,000 times

Working Cycle: 1s On, 3s Off


Specification download:

横线

Model: SDT-6376S-24V4.6


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.




  Gif animation of solenoid

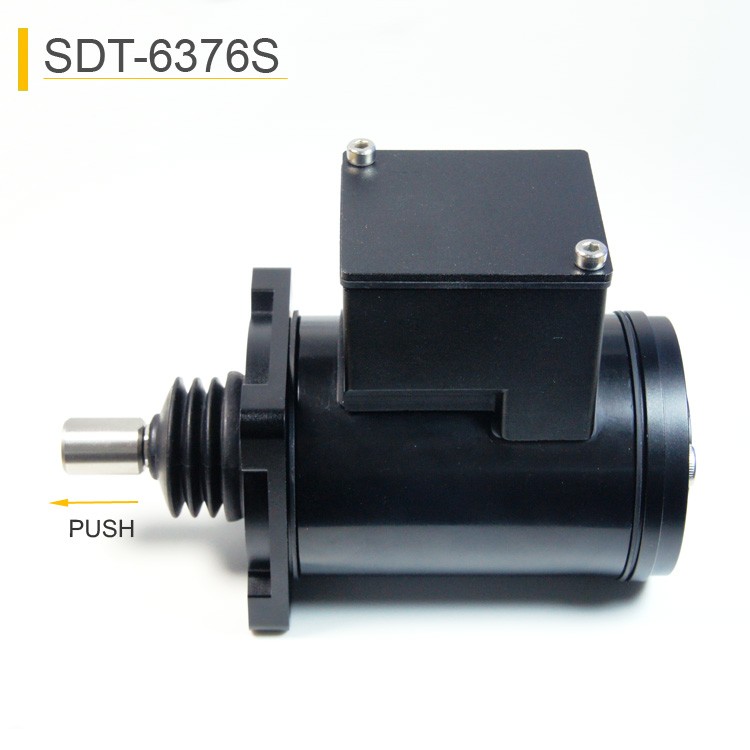

push solenoid



  Demo video of solenoid in YouTube

Large And Powerful Tubular Solenoid

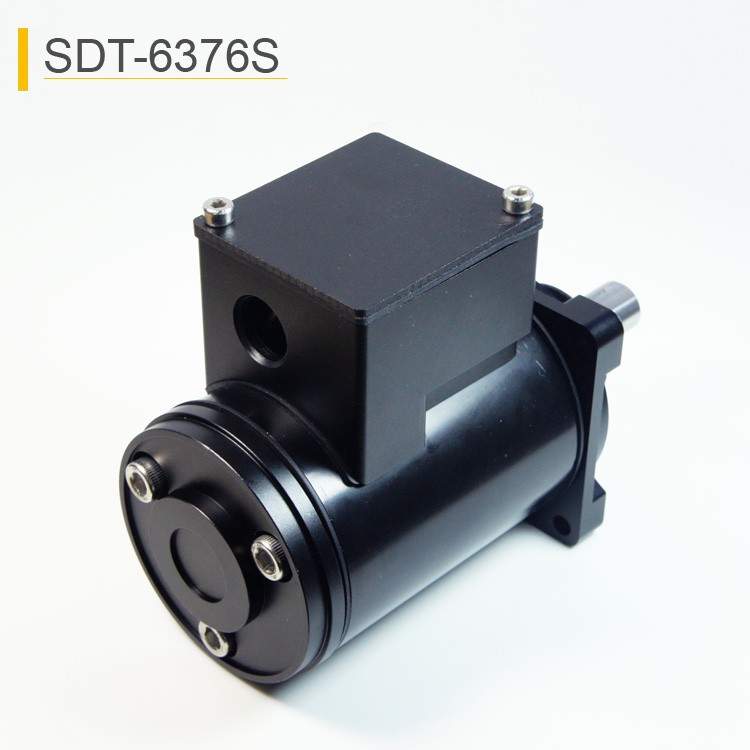

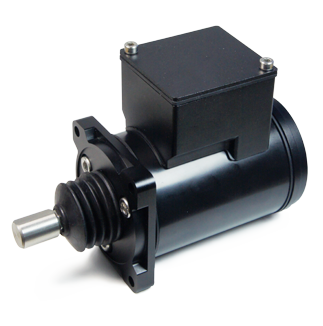

  Real photos of solenoid

Large Tubular Solenoid

push-pull solenoid

push tubular solenoid

Powerful Solenoid

big solenoid


Size: φ63*98.1mm

Plunger: φ25mm

Voltage: DC24V

Stroke: 0-20mm

Force: 50-150N

Power: 125W

Current: 5.2A

Resistance: 4.65Ω

Life: ≥10,000 times

Working Cycle: 1s On, 3s Off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.

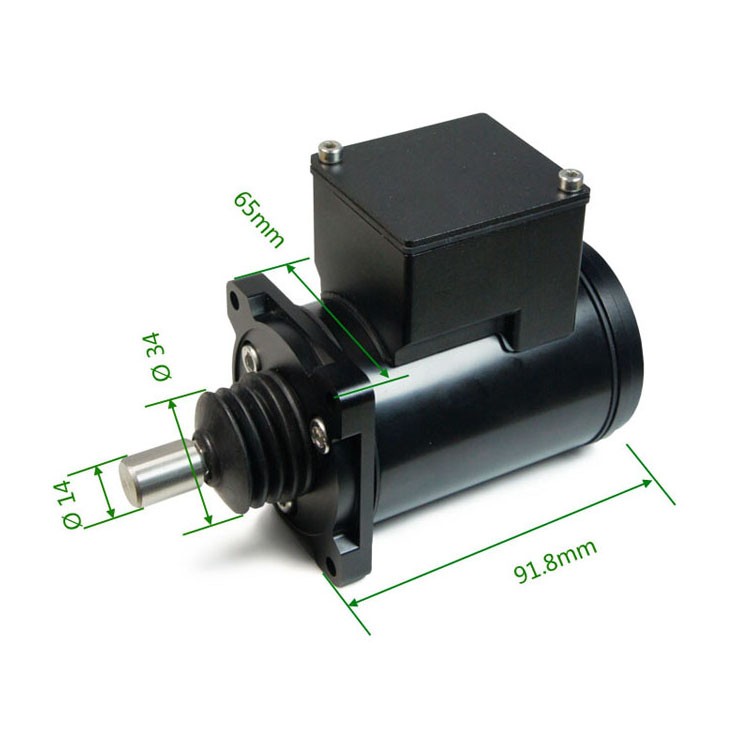

size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.

Tubular Solenoid For Rail Transit Automation Equipment



application of solenoid
