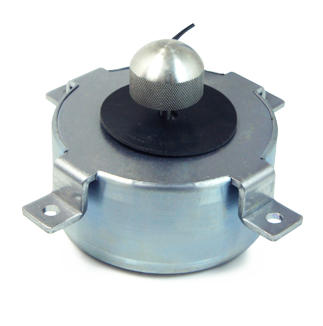

SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment
SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment
SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment
SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment
SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment
SDT-6029S Tubular Solenoid For Rehabilitation Medical Massage Equipment

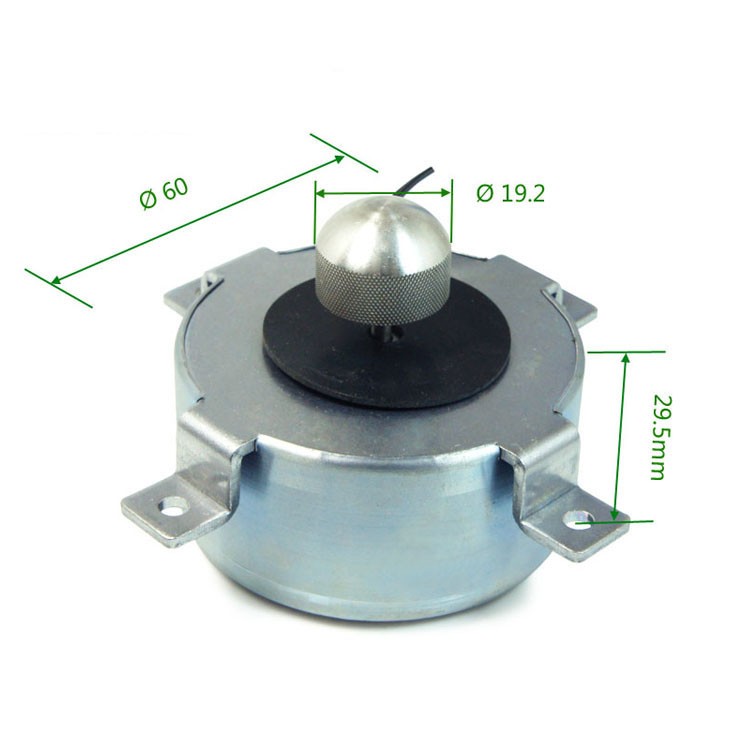

Size: φ60*29.5mm

Plunger: φ15mm

Voltage: DC12V

Stroke: 0-7mm

Force: 10-30N

Power: 28.8W

Current: 2.4A

Resistance: 5Ω

Life: ≥20000,000 times

Working Cycle: 0.01s On, 0.1s Off


Specification download:

横线

Model: SDT-6029S-12A05


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



  Gif animation of solenoid

push solenoid



  Demo video of solenoid in YouTube

dc 12v solenoid

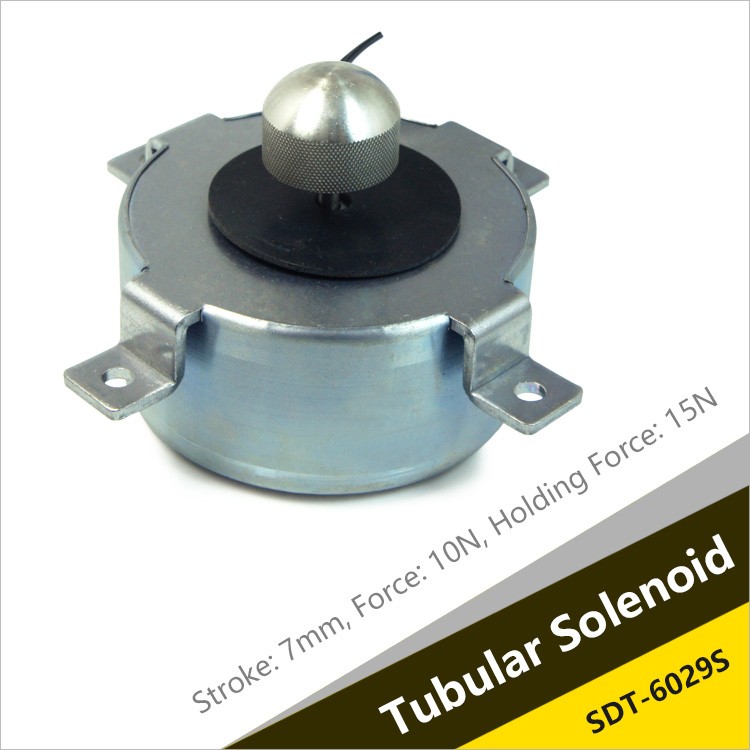

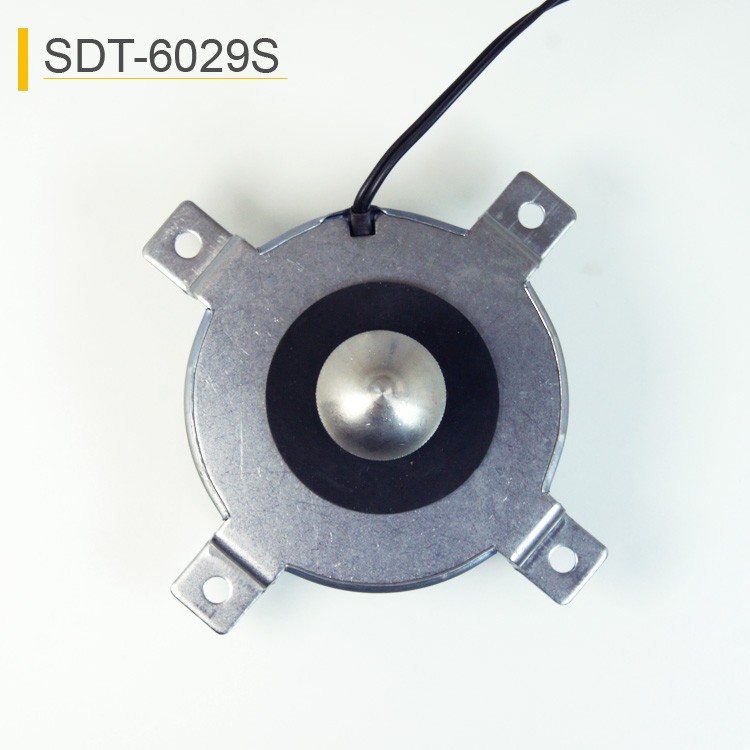

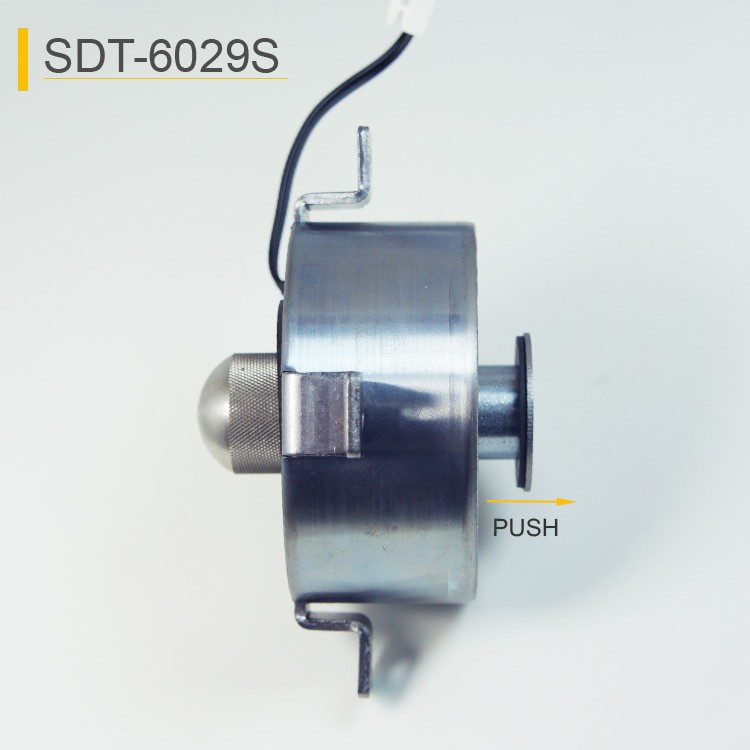

  Real photos of solenoid

Tubular Solenoid

push-pull solenoid

Tubular Solenoid For Rehabilitation Medical Massage Equipment

tubular type solenoid

solenoid


Size: φ60*29.5mm

Plunger: φ15mm

Voltage: DC12V

Stroke: 0-7mm

Force: 10-30N

Power: 28.8W

Current: 2.4A

Resistance: 5Ω

Life: ≥20000,000 times

Working Cycle: 0.01s On, 0.1s Off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
