SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker
SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker
SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker
SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker
SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker
SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker

Size: 26*25*22mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-4mm

Force: 0.5-5N

Power: 4.8W

Current: 0.2A

Resistance: 120Ω

Life: ≥800,000 times

Working Cycle: 10s On, 10s Off


Specification download:

横线

Model: SDO-0826L-24A120


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull solenoid



  Demo video of solenoid in YouTube


DC linear solenoid

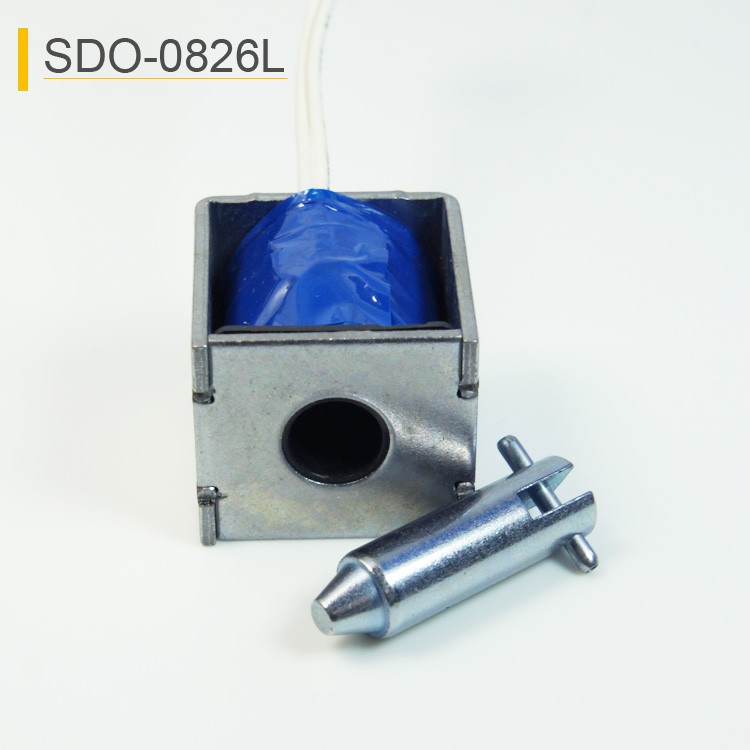

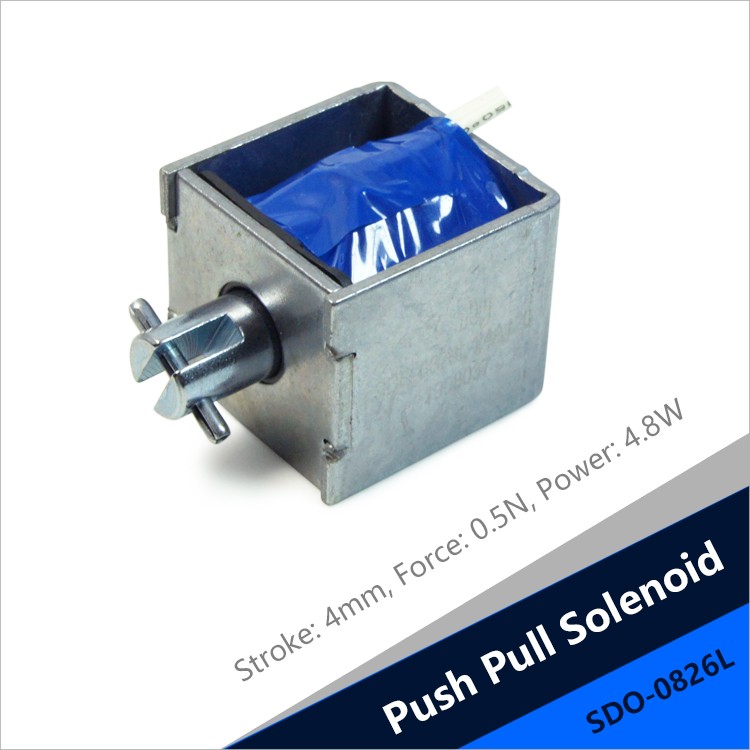

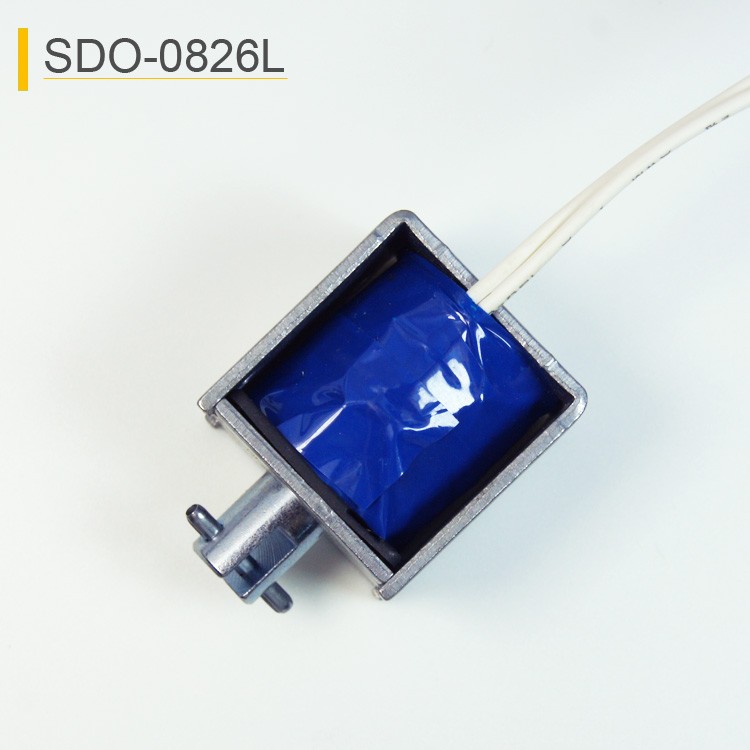

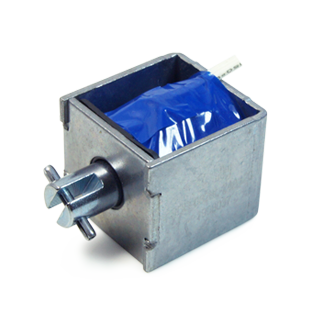

  Real photos of solenoid


push pull solenoid

solenoid

open frame solenoid

pull type solenoid

small size solenoid


Size: 26*25*22mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-4mm

Force: 0.5-5N

Power: 4.8W

Current: 0.2A

Resistance: 120Ω

Life: ≥800,000 times

Working Cycle: 10s On, 10s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker  Open Frame Solenoid SDO-0826L Specification.pdf        SDO-0826L Pull Push Solenoid For Smart Electric Pressure Cooker




  Drawing of solenoid


solenoid




  Force and stroke of solenoid


  Force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Smart Electric Pressure Cooker


application of solenoid
