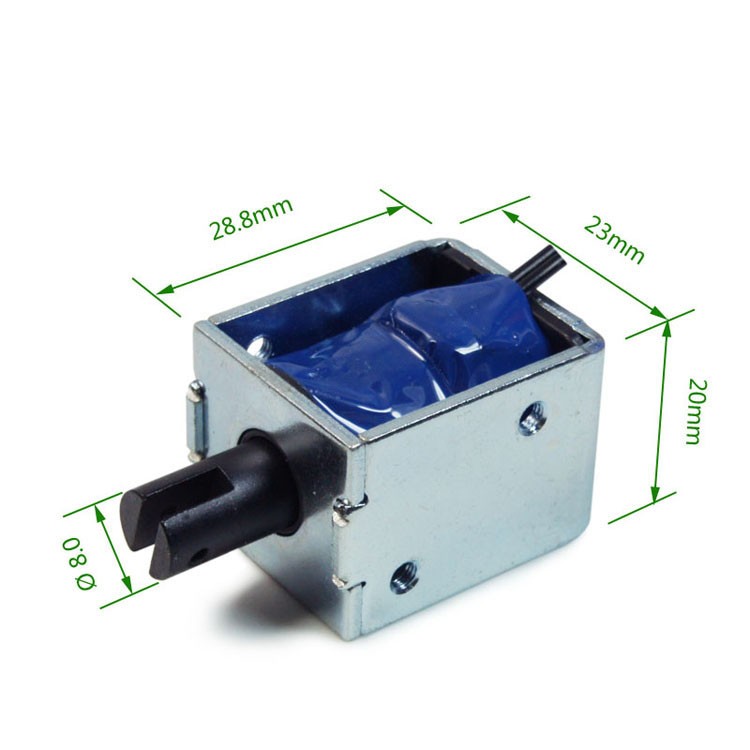

Size: 28.8*23*20mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-6mm

Force: 2-10N

Power: 11.52W

Current: 0.48A

Resistance: 50Ω

Life: ≥500,000 times

Working Cycle: 0.5s On, 1.5s Off


Specification download:

横线

Model: SDO-0829S-24A50


The frame push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid

push solenoid




  Demo video of solenoid in YouTube

solenoid

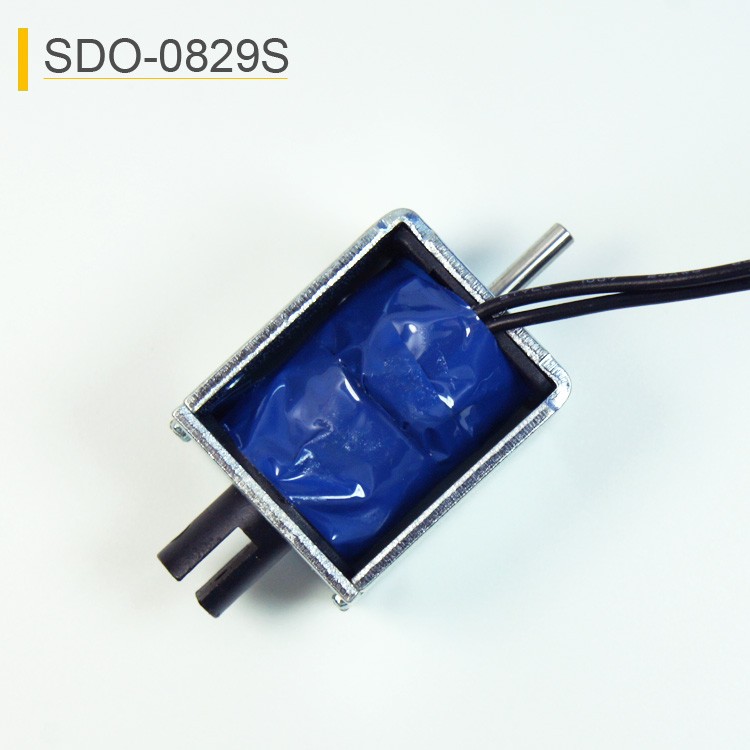

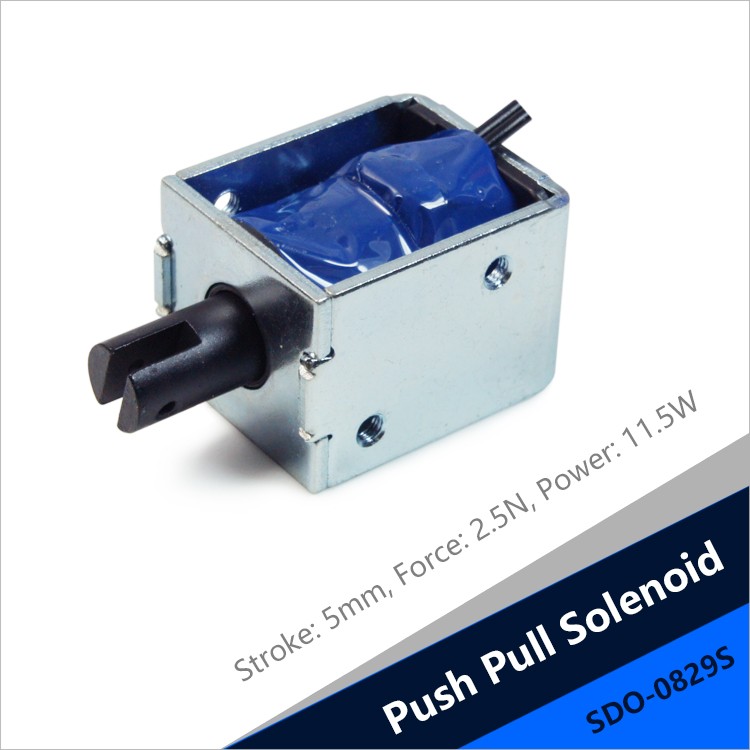

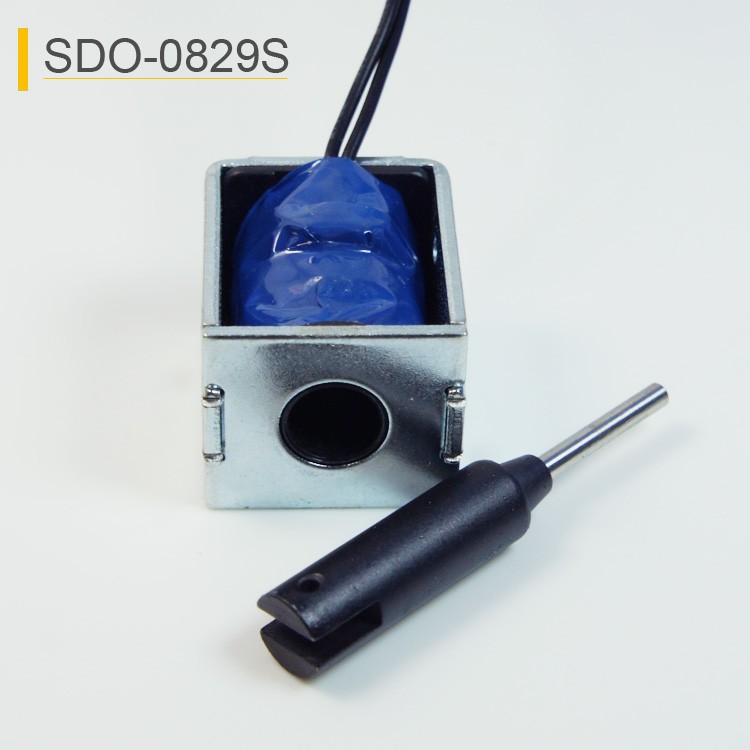

  Real photos of solenoid

push pull solenoid

open frame solenoid

door lock solenoid

linear solenoid

frame type solenoid


Size: 28.8*23*20mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-6mm

Force: 2-10N

Power: 11.52W

Current: 0.48A

Resistance: 50Ω

Life: ≥500,000 times

Working Cycle: 0.5s On, 1.5s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0829S Push Pull Solenoid For Automatic Medicine Taking Equipment     Open Frame Solenoid SDO-0829S Specification.pdf        SDO-0829S Push Pull Solenoid For Automatic Medicine Taking Equipment




  Drawing of solenoid


solenoid




  Force and stroke of solenoid


  Force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
