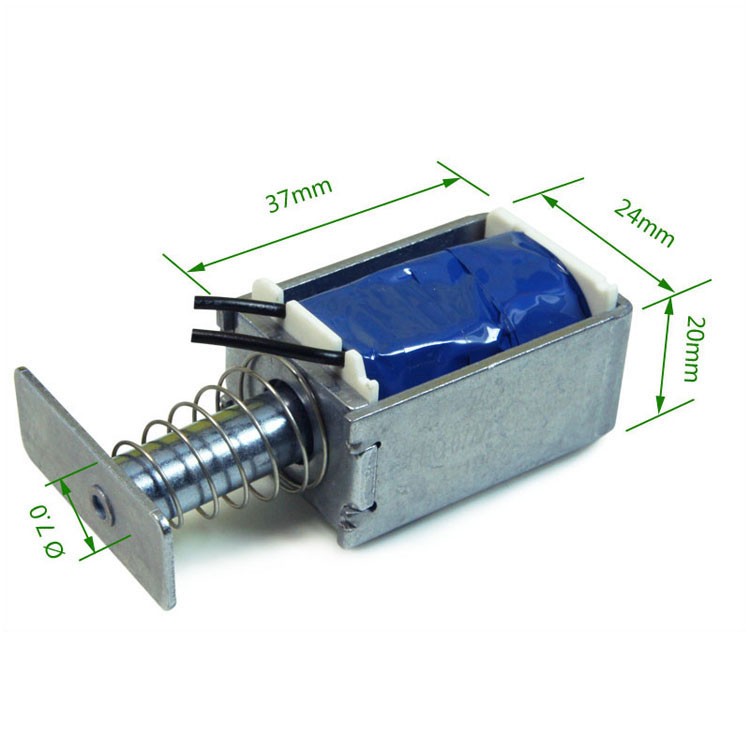

Size: 37*24*20mm

Plunger: φ7mm

Voltage: DC240V(Start) DC85V(Hold)

Stroke: 0-10mm

Force: 0.6-3N

Power: 16.5W(Start) 2.06W(Hold)

Resistance: 3500Ω

Life: ≥200,000 times

Working Cycle: 1s On, 3s Off


Specification download:

PDF

横线

Model: SDO-0737L-240-85A3500


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.

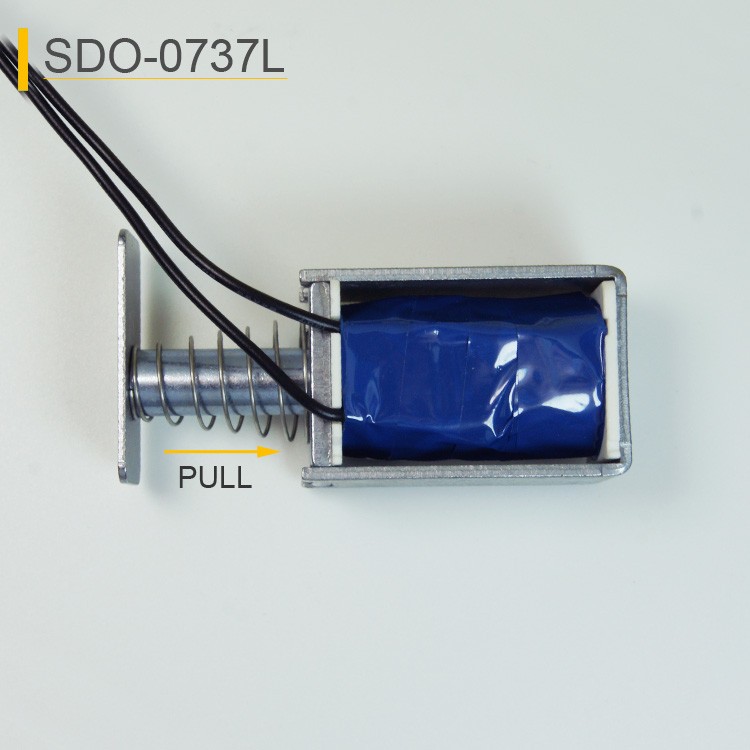

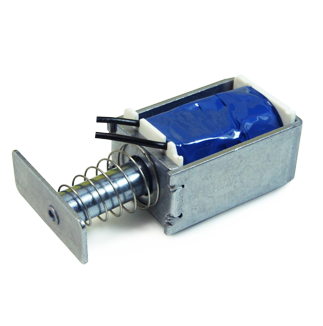

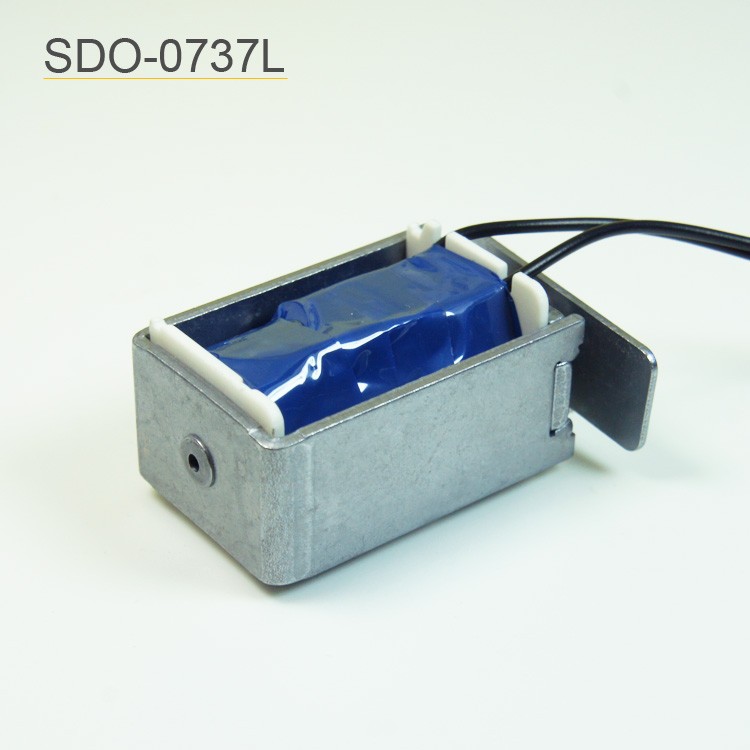

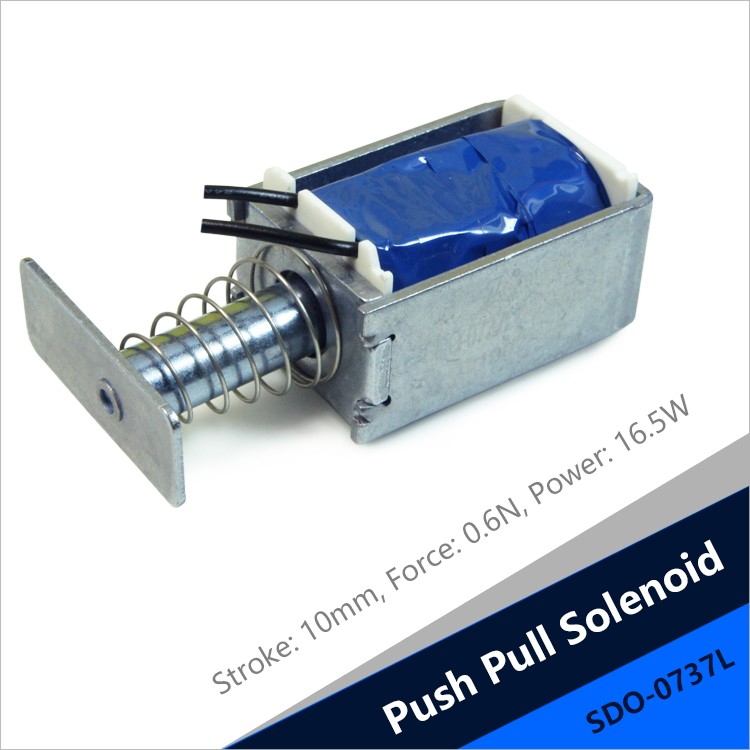

  Real photos of solenoid


push pull solenoid

Pull Solenoid

open frame solenoid

linear solenoid



Size: 37*24*20mm

Plunger: φ7mm

Voltage: DC240V(Start) DC85V(Hold)

Stroke: 0-10mm

Force: 0.6-3N

Power: 16.5W(Start) 2.06W(Hold)

Resistance: 3500Ω

Life: ≥200,000 times

Working Cycle: 1s On, 3s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0737L Pull Solenoid For Exhaust Fan Shutter Opening And Closing Control  Open Frame Solenoid SDO-0737L Specification.pdf        SDO-0737L Pull Solenoid For Exhaust Fan Shutter Opening And Closing Control




  Drawing of solenoid


solenoid


  Force and stroke of solenoid

Force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
