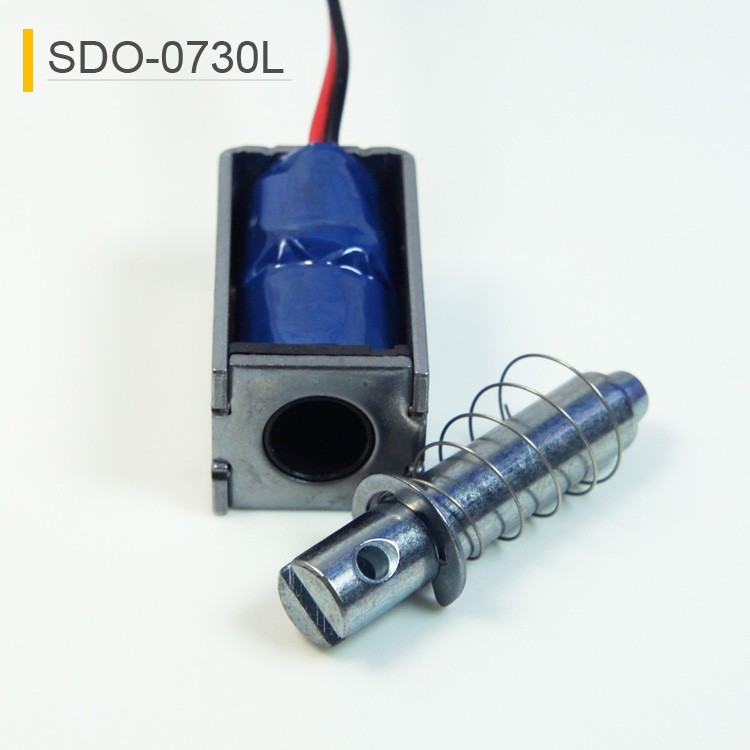

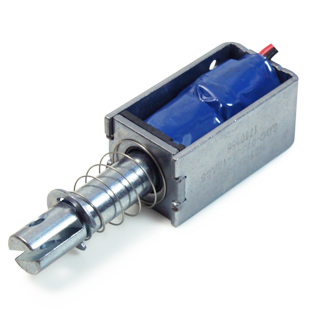

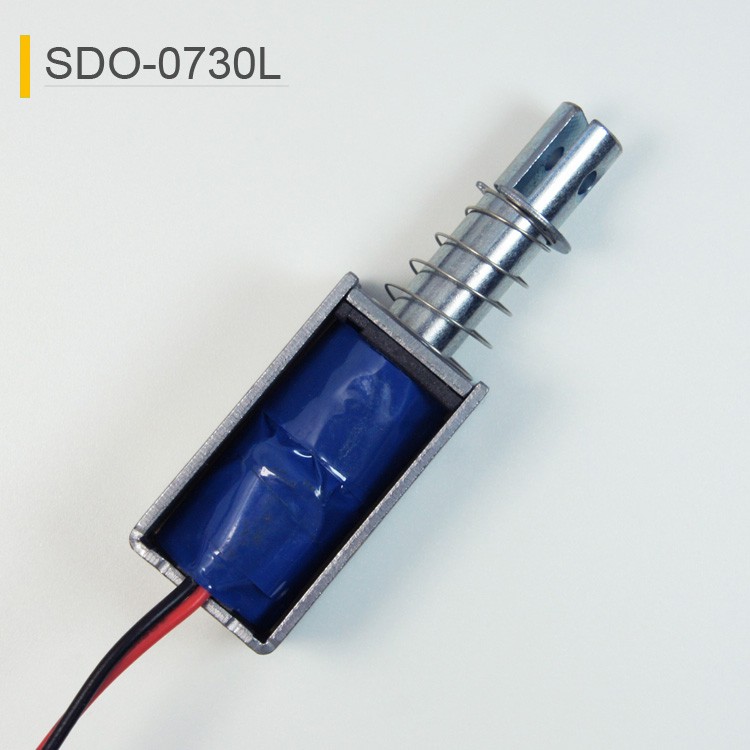

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

Size: 30*16*14mm

Plunger: φ7mm

Voltage: DC12V

Stroke: 0-5mm

Force: 1-4.5N

Power: 28.8W

Current: 2.4A

Resistance: 5Ω

Life: ≥500,000 times

Working Cycle: 0.5s On, 2s Off


Specification download:

PDF

横线

Model: SDO-0730L-12A05


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.


SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine


SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine


Size: 30*16*14mm

Plunger: φ7mm

Voltage: DC12V

Stroke: 0-5mm

Force: 1-4.5N

Power: 28.8W

Current: 2.4A

Resistance: 5Ω

Life: ≥500,000 times

Working Cycle: 0.5s On, 2s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.


SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine

SDO-0730L Pull Push Solenoid For Automatic Drug Delivery Machine
