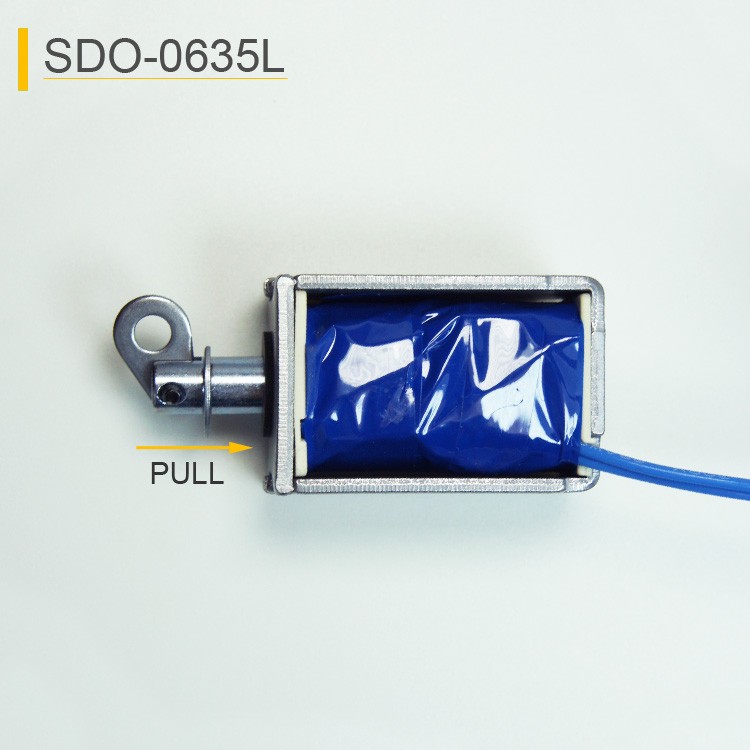

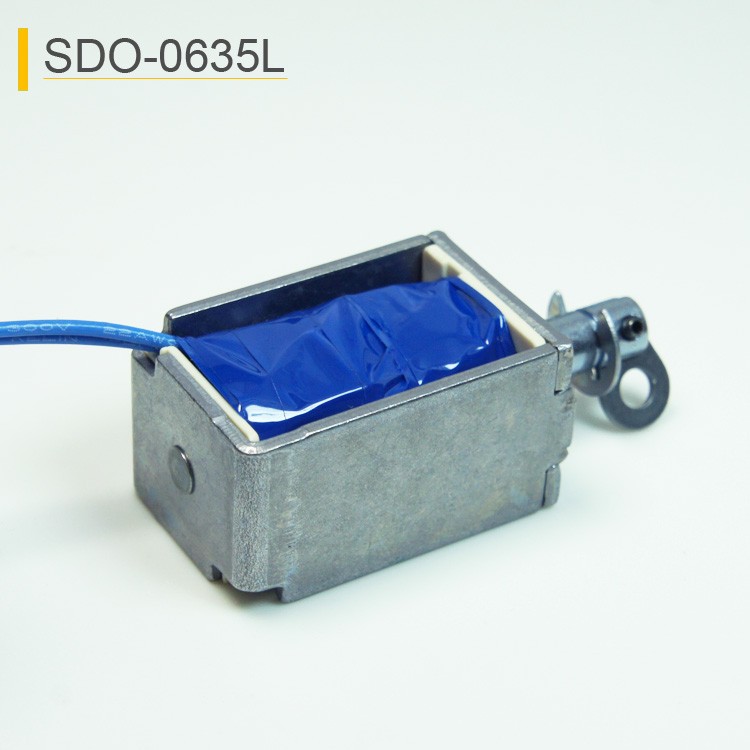

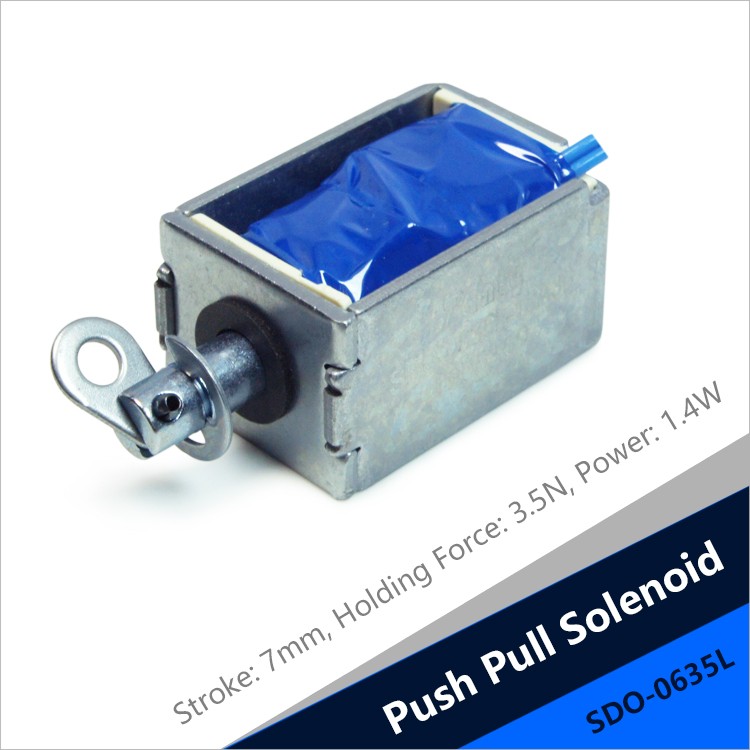

SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker
SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker
SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker
SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker
SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker
SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker

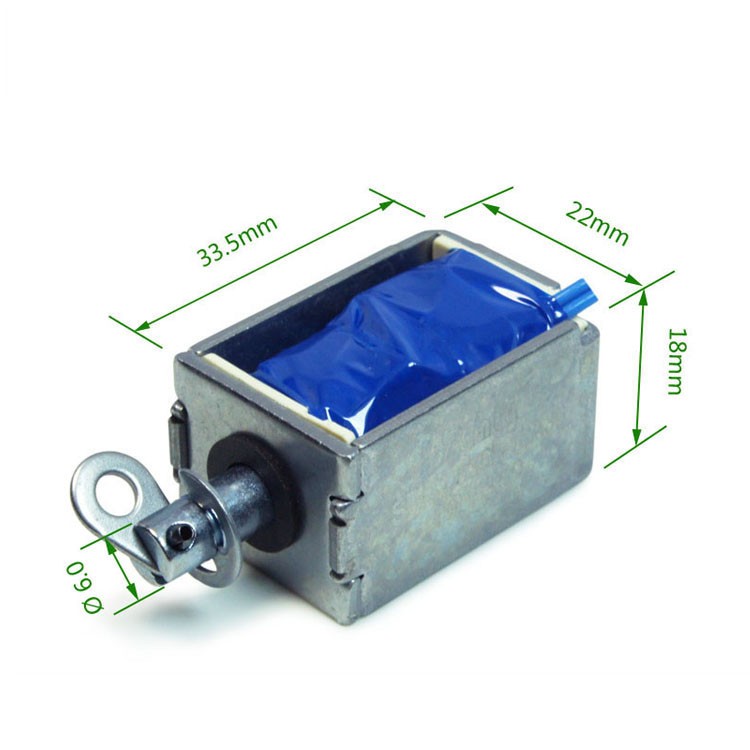

Size: 33*22*18mm

Plunger: φ6mm

Voltage: DC18V

Stroke: 0-7mm

Force: 1-3.5N

Power: 1.4W

Current: 0.5A

Resistance: 36Ω

Life: ≥200,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDO-0635L-18A36


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.


pull type solenoid


solenoid


Pull Push Solenoid

Pull Solenoid

push pull solenoid

open frame solenoid


Size: 33*22*18mm

Plunger: φ6mm

Voltage: DC18V

Stroke: 0-7mm

Force: 1-3.5N

Power: 1.4W

Current: 0.5A

Resistance: 36Ω

Life: ≥200,000 times

Working Cycle: Continuous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



SDO-0635L Linear Pull Push Solenoid For Electric Pressure CookerOpen Frame Solenoid SDO-0635L_Specification.pdf     SDO-0635L Linear Pull Push Solenoid For Electric Pressure Cooker





solenoid


force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Electric Pressure Cooker


applications of solenoid
