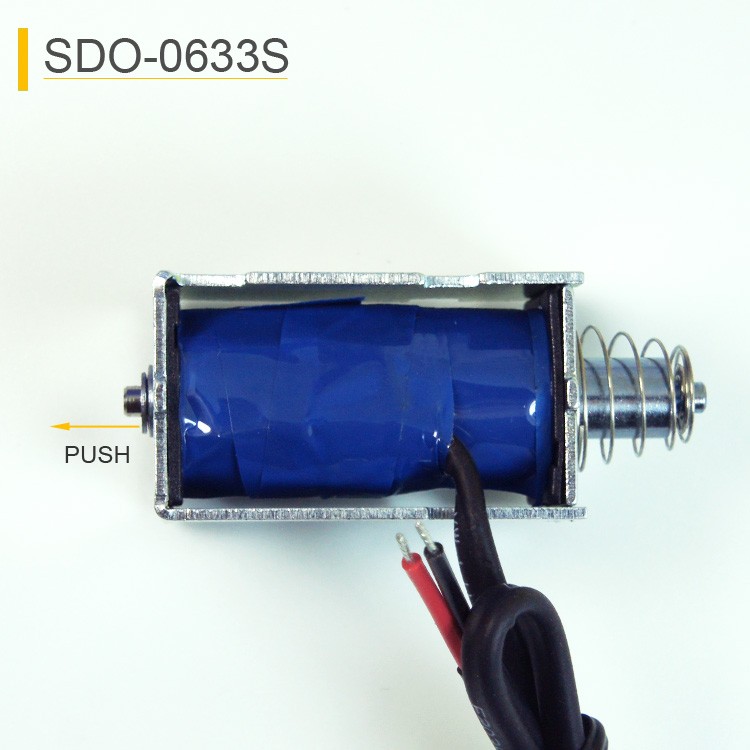

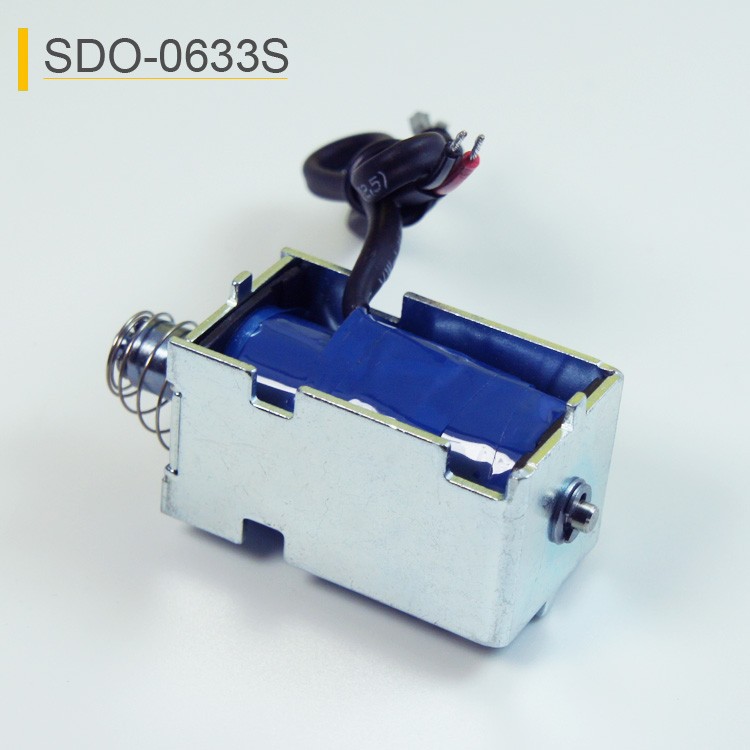

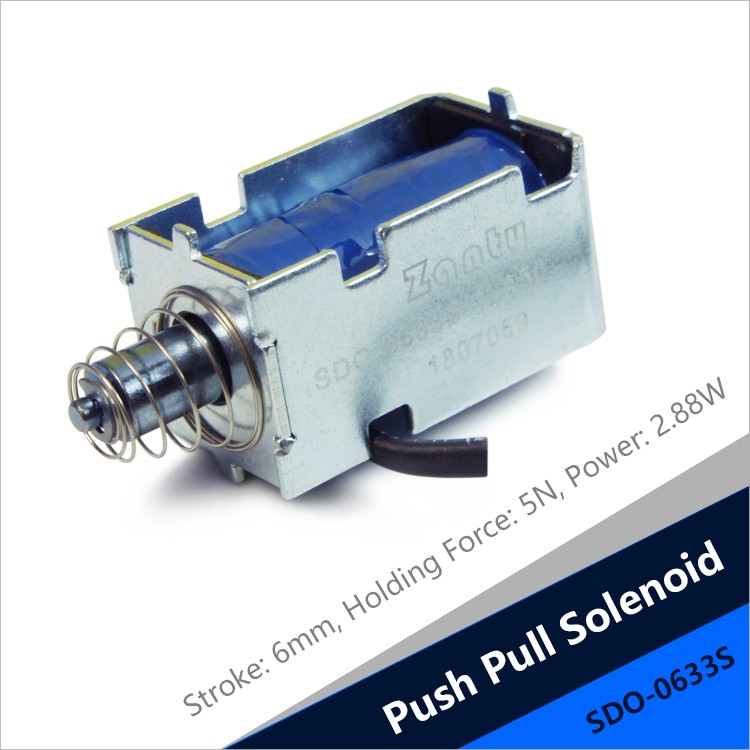

SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock
SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock
SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock
SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock
SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock
SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock

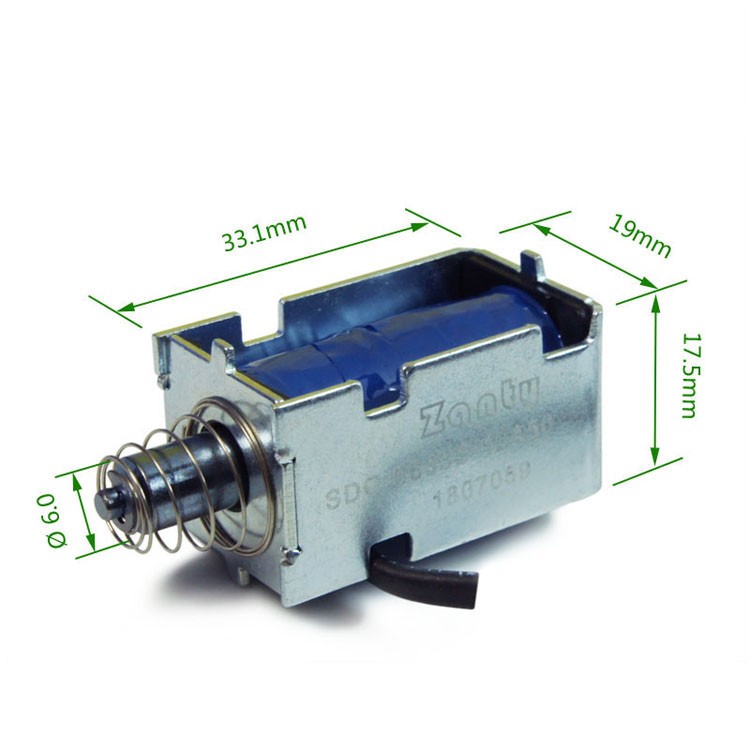

Size: 33.1*19*17.5mm

Plunger: φ6mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.5-5N

Power: 2.88W

Current: 0.24A

Resistance: 50Ω

Life: ≥100,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDO-0633S-12A50


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.


push solenoid


Push Solenoid For Hotel Room Door Lock


push pull solenoid

open frame solenoid

linear push solenoid

small solenoid




Size: 33.1*19*17.5mm

Plunger: φ6mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.5-5N

Power: 2.88W

Current: 0.24A

Resistance: 50Ω

Life: ≥100,000 times

Working Cycle: Continuous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door LockOpen Frame Solenoid SDO-0633S_Specification.pdf     SDO-0633S Open Frame Push-pull Solenoid For Hotel Room Door Lock


solenoid

force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


SDO-0633S Push Solenoid For Hotel Room Door Lock


application of solenoid
