SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker
SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker
SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker
SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker
SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker
SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker

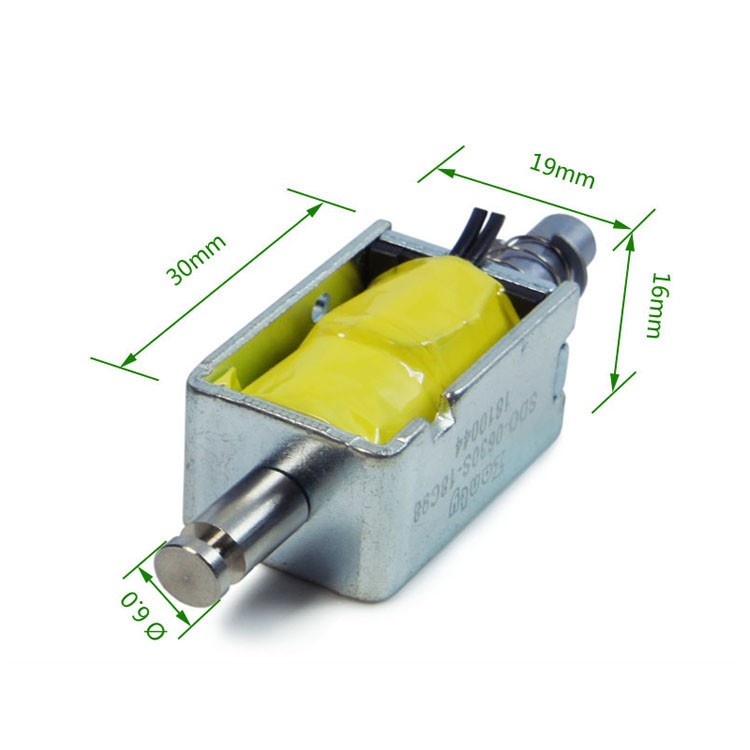

Size: 30*19*16mm

Plunger: φ6mm

Voltage: DC18V

Stroke: 0-6mm

Force: 0.5-5N

Power: 3.3W

Current: 0.18A

Resistance: 98Ω

Life: ≥200,000 times

Working Cycle: 1s On, 2s Off


Specification download:

横线

Model: SDO-0628L-24A28.8


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


push solenoid




  Demo video of solenoid in YouTube


DC push type solenoid

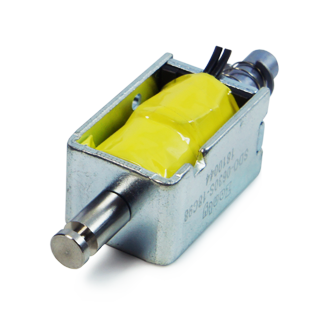

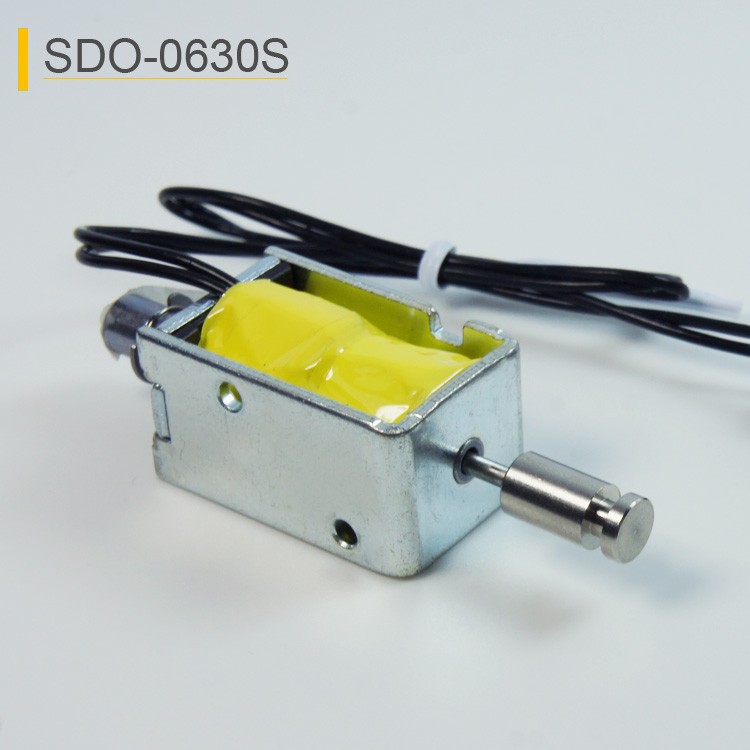

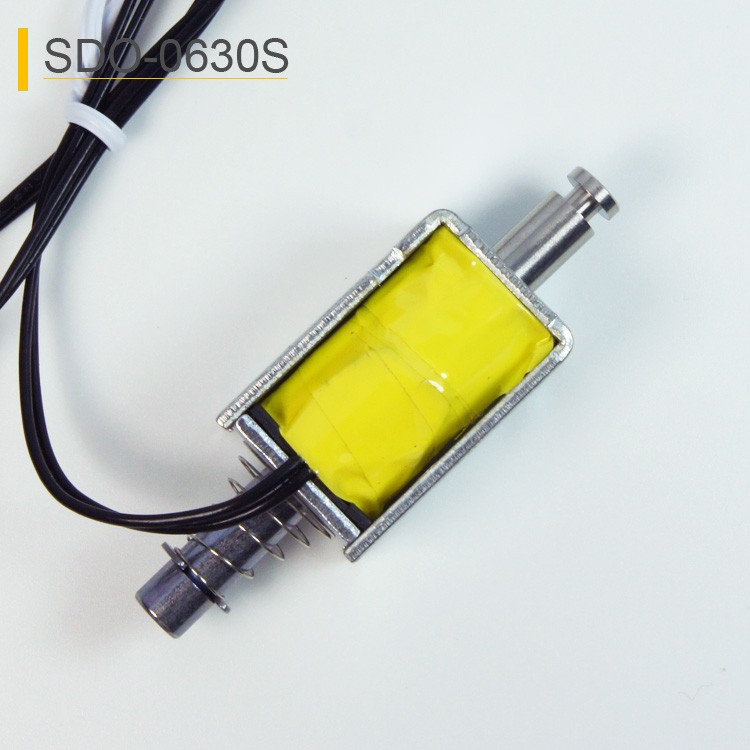

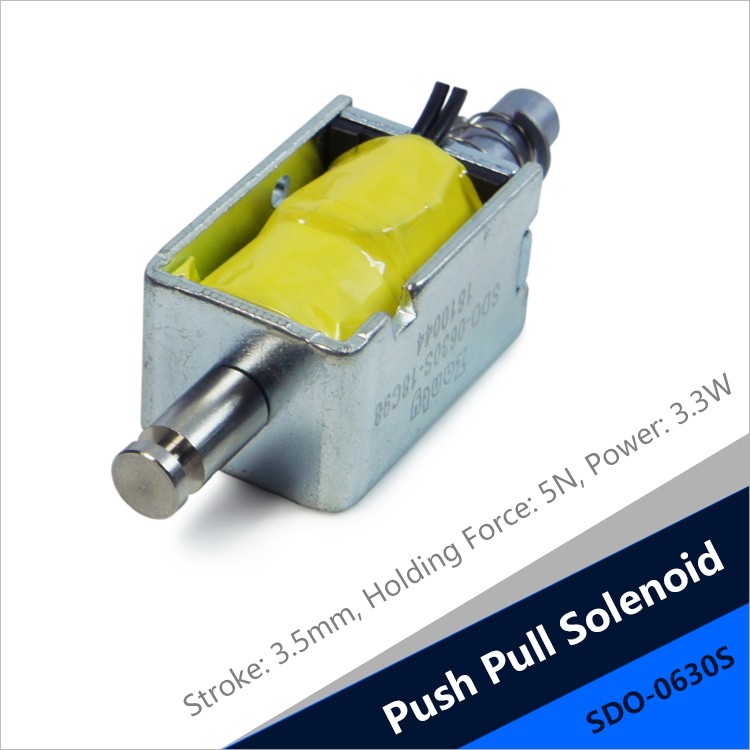

  Real photos of solenoid


push pull solenoid

Push Solenoid For Electric Pressure Cooker

open frame solenoid

linear push solenoid

Solenoid


Size: 30*19*16mm

Plunger: φ6mm

Voltage: DC18V

Stroke: 0-6mm

Force: 0.5-5N

Power: 3.3W

Current: 0.18A

Resistance: 98Ω

Life: ≥200,000 times

Working Cycle: 1s On, 2s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker  Open Frame Solenoid SDO-0630S_Specification.pdf     SDO-0630S Open Fram Push-pull Solenoid For Electric Pressure Cooker




  Drawing of solenoid


open frame solenoid




  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Push Solenoid For Electric Pressure Cooker


application of solenoid
