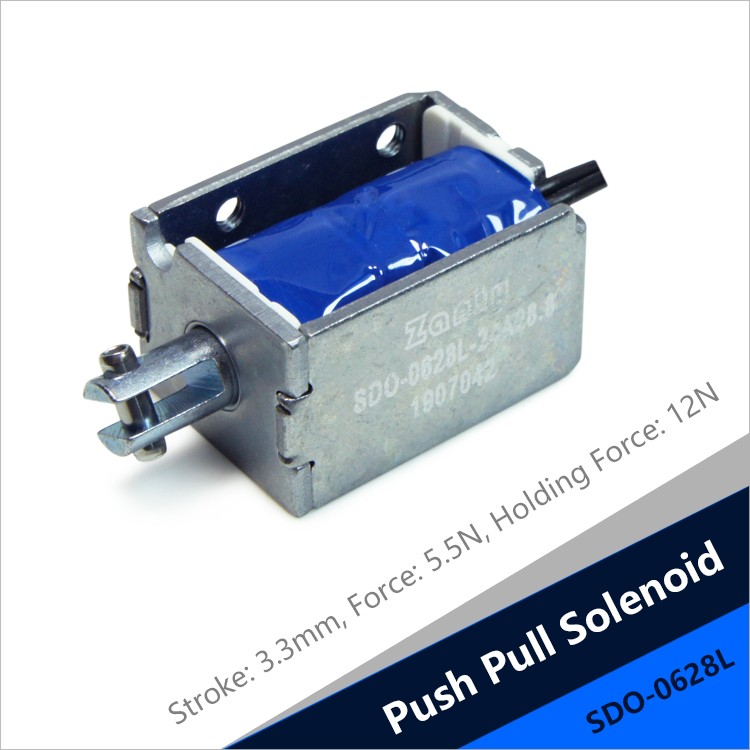

SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine
SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine
SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine
SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine
SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine
SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine

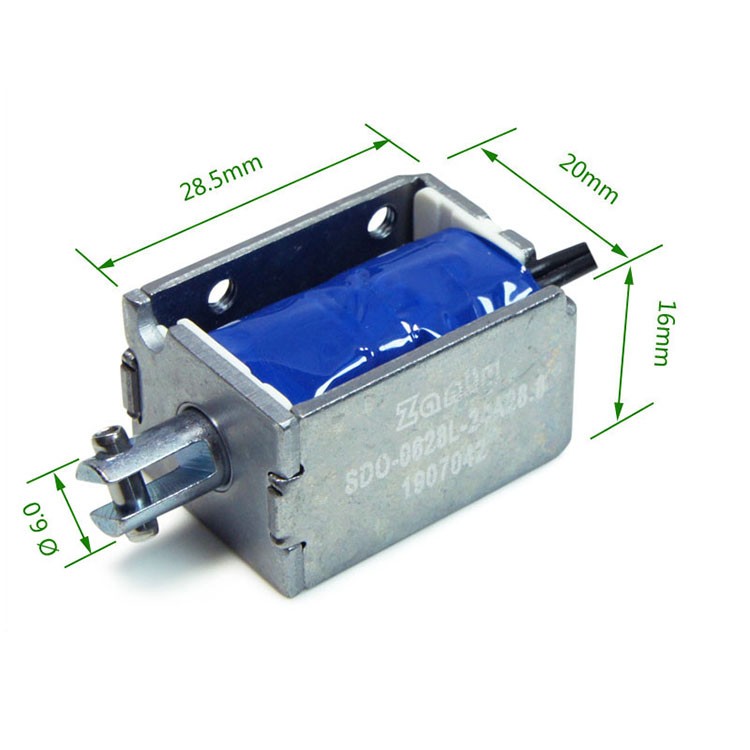

Size: 28.5*20*16mm

Plunger: φ6mm

Voltage: DC24V

Stroke: 0-5mm

Force: 3-10N

Power: 20W(Start) 5W(Hold)

Current: 0.83A(Start) 0.21(Hold)

Resistance: 28.8Ω

Working Cycle: Continous Power


Specification download:

PDF

横线

Model: SDO-0628L-24A28.8


The frame linear push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull type solenoid




  Demo video of solenoid in YouTube


Pull Solenoid




  Real photos of solenoid


push pull solenoid

Solenoid For Pinball Game Machine

open frame solenoid


Size: 28.5*20*16mm

Plunger: φ6mm

Voltage: DC24V

Stroke: 0-5mm

Force: 3-10N

Power: 20W(Start) 5W(Hold)

Current: 0.83A(Start) 0.21(Hold)

Resistance: 28.8Ω

Working Cycle: Continous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine  Open Frame Solenoid SDO-0628L_Specification.pdf     SDO-0628L Linear Push Pull Solenoid For Pinball Game Machine




  Drawing of solenoid


open frame pull solenoid



  Force and stroke of solenoid

force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


SDO-0628L Pull Solenoid For Pinball Game Machine
