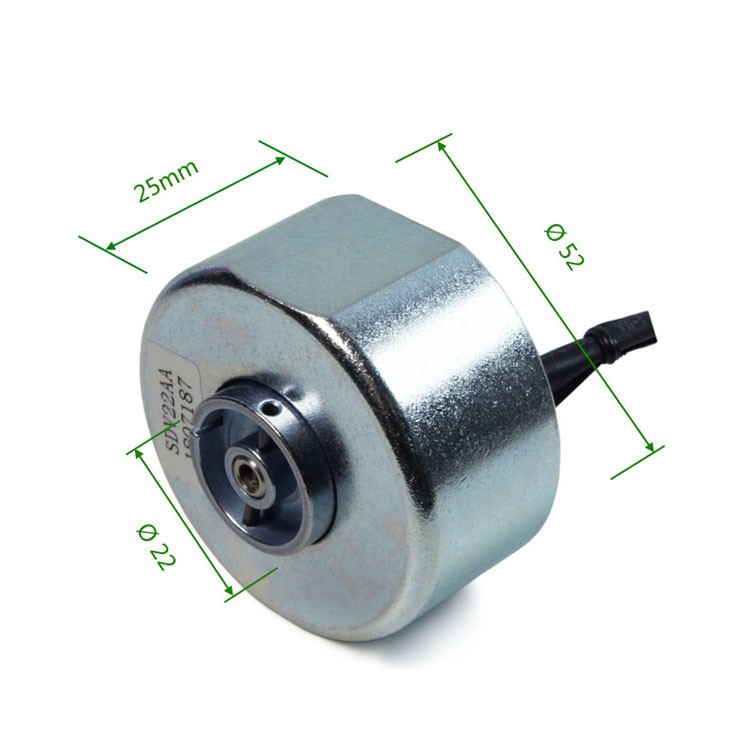

Size: φ52*25mm

Plunger: φ22mm

Voltage: DC8V

Stroke: 0-2mm

Force: 10-30N

Power: 6W

Current: 0.75A

Resistance: 10.6Ω

Frequency: 5000/Min

Working Cycle: Continuous Power


Specification download:

横线

Model: SDT-5225S-08A10.6


The high-frequency pulse solenoid is developed on the basis of tubular solenoid, special imported magnetic material and special design structure are used. It operates more than 5000 times per minute with fast response speed. It is used in high-speed operation equipment, such as placement machines and so on.



  Gif animation of solenoid

push solenoid



  Demo video of solenoid in YouTube

dc 8v solenoid

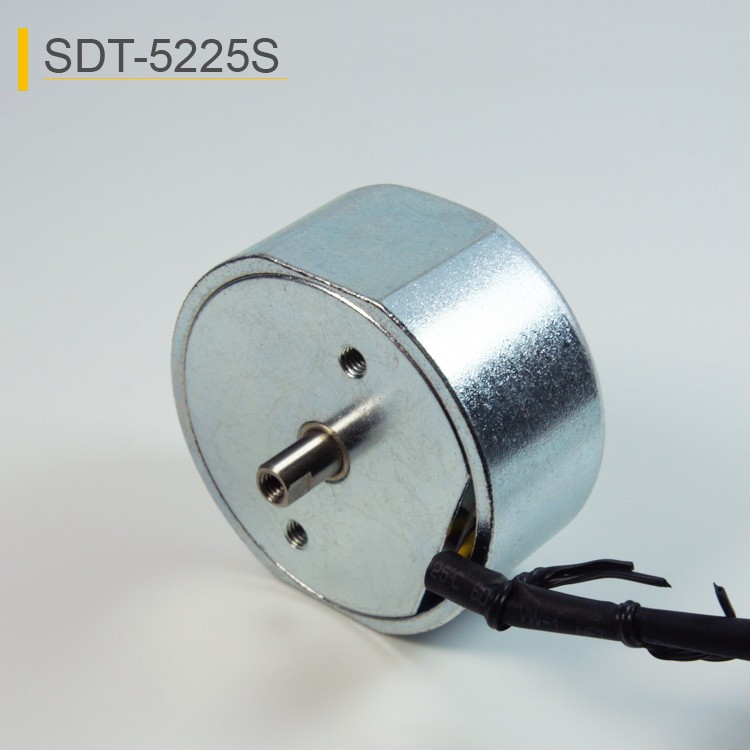

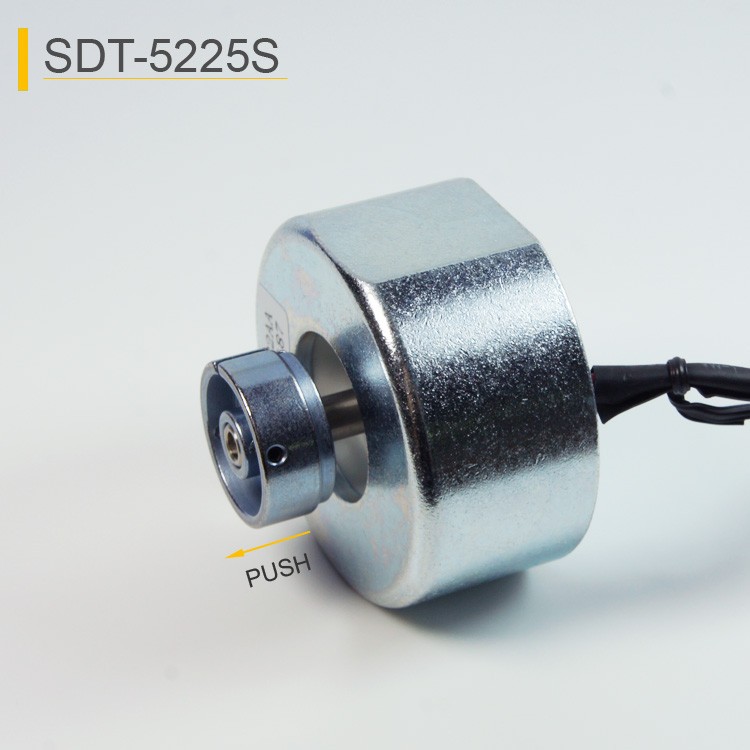

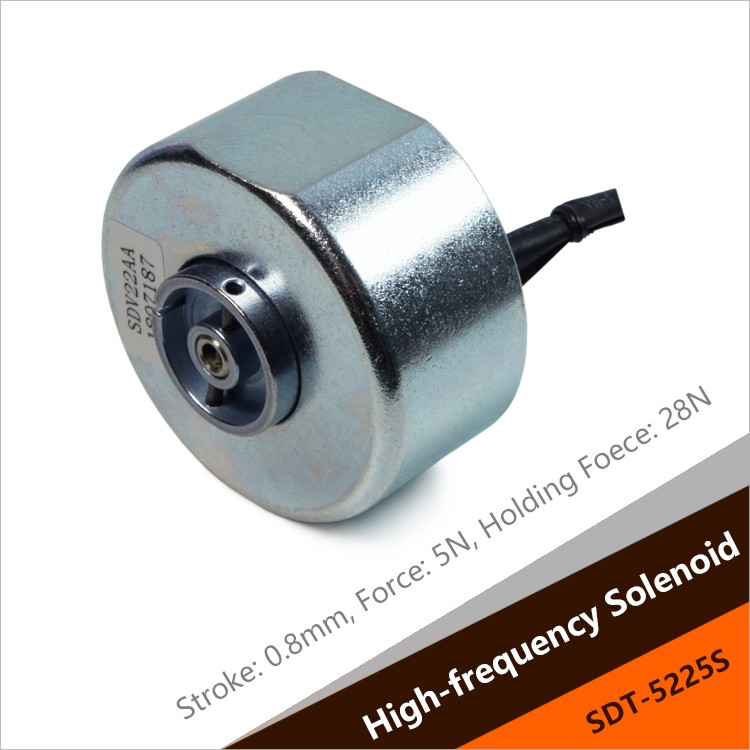

  Real photos of solenoid

High Frequency Solenoid

tubular solenoid

push solenoid

solenoid

tubular solenoid


Size: φ52*25mm

Plunger: φ22mm

Voltage: DC8V

Stroke: 0-2mm

Force: 10-30N

Power: 6W

Current: 0.75A

Resistance: 10.6Ω

Frequency: 5000/Min

Working Cycle: Continuous Power


The high frequency solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



size of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


High Frequency Solenoid For High-speed Placement Machine


application of solenoid
