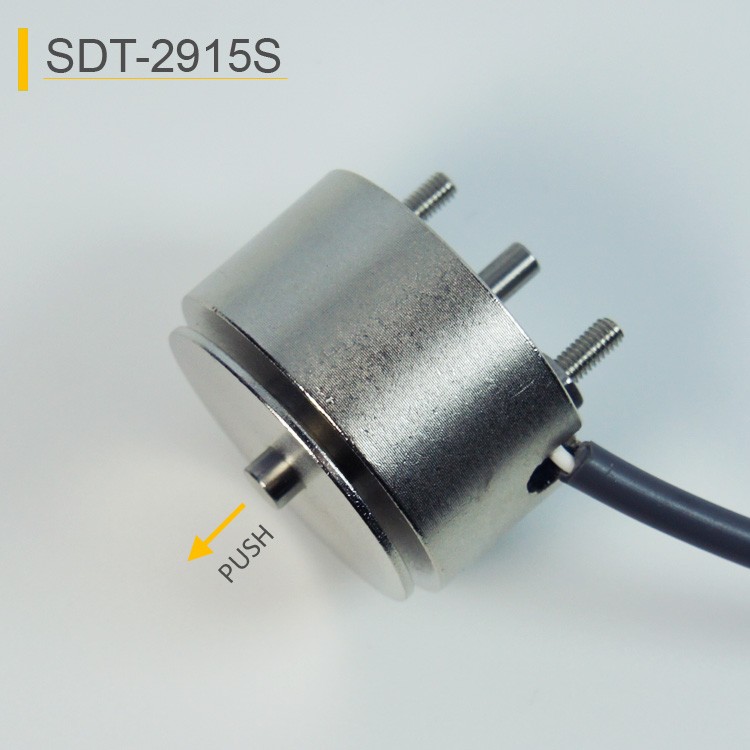

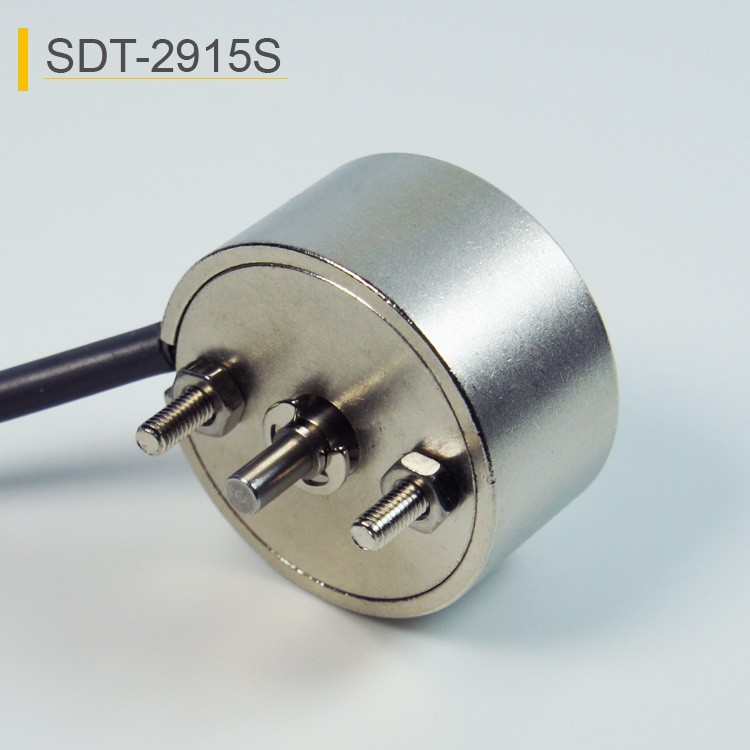

SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine
SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine
SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine
SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine
SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine
SDT-2915S High Frequency Solenoid For Super High-speed Placement Machine

Size: φ28.6*15mm

Plunger: φ8mm

Voltage: DC13V

Stroke: 0-1mm

Force: 5-30N

Power: 1.8W

Current: 0.14A

Resistance: 94Ω

Frequency: 5000/Min

Working Cycle: 0.02s On, 0.1s Off


Specification download:

横线

Model: SDT-2915S-13A94

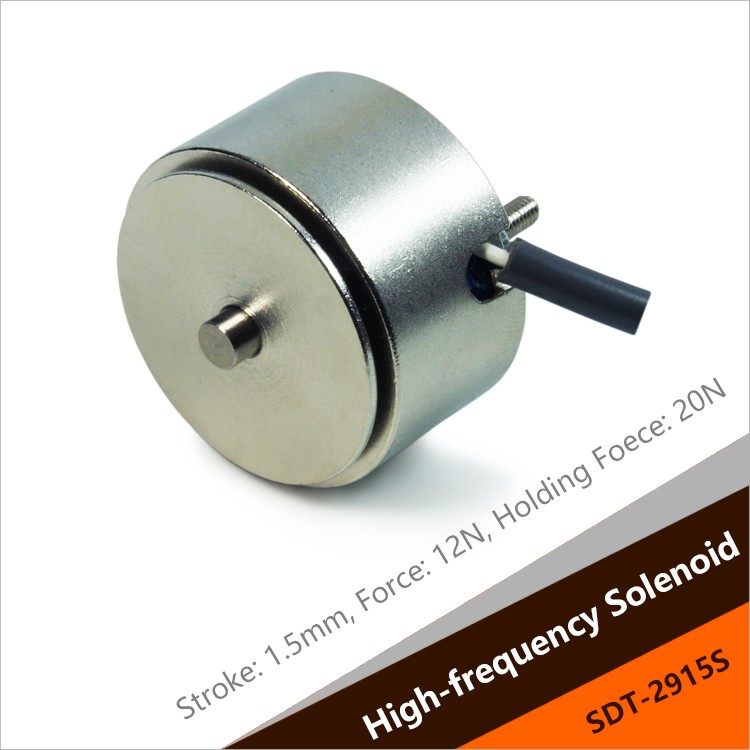

The high-frequency pulse solenoid is developed on the basis of tubular solenoid, special imported magnetic material and special design structure are used. It operates more than 5000 times per minute with fast response speed. It is used in high-speed operation equipment, such as placement machines and so on.



High Frequency Solenoid

push solenoid

tubular solenoid

pull solenoid

small solenoid


Size: φ28.6*15mm

Plunger: φ8mm

Voltage: DC13V

Stroke: 0-1mm

Force: 5-30N

Power: 1.8W

Current: 0.14A

Resistance: 94Ω

Frequency: 5000/Min

Working Cycle: 0.02s On, 0.1s Off


The high frequency solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



size of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Super High-speed Placement Machine


application of solenoid
