SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals
SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals
SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals
SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals
SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals
SDT-5831S High Frequency Solenoid For Medical Equipment In Pet Hospitals

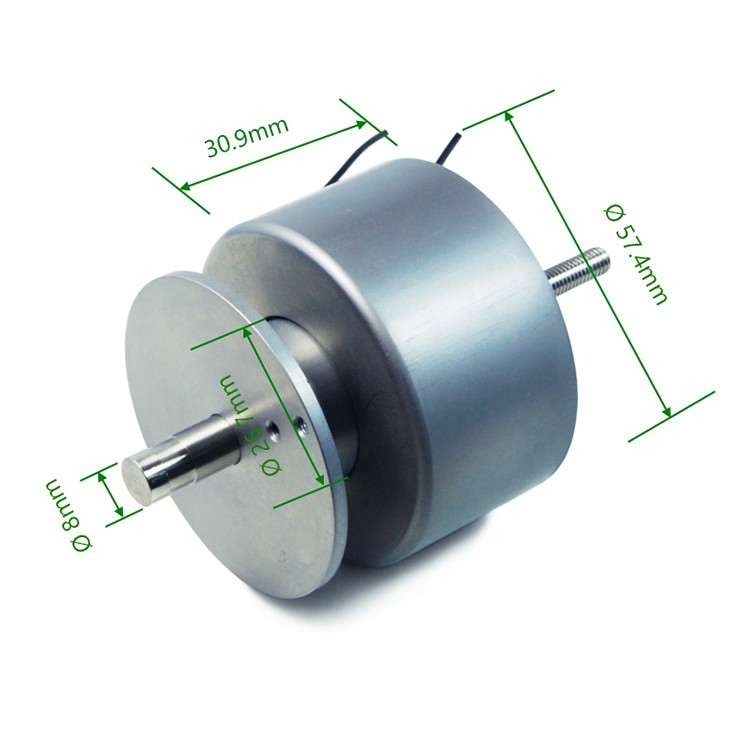

Size: φ57.4*30.9mm

Plunger: φ26.7mm

Voltage: DC35.1V

Stroke: 0-15mm

Force: 7-30N

Power: 94.8W

Current: 2.7A

Resistance: 13Ω

Working Cycle: 10s On, 600s Off


Specification download:

横线

Model: SDT-5831S-48A13


The high-frequency pulse solenoid is developed on the basis of tubular solenoid, special imported magnetic material and special design structure are used. It operates more than 5000 times per minute with fast response speed. It is used in high-speed operation equipment, such as placement machines and so on.



  Gif animation of solenoid

push solenoid



  Demo video of solenoid in YouTube

push tubular solenoid

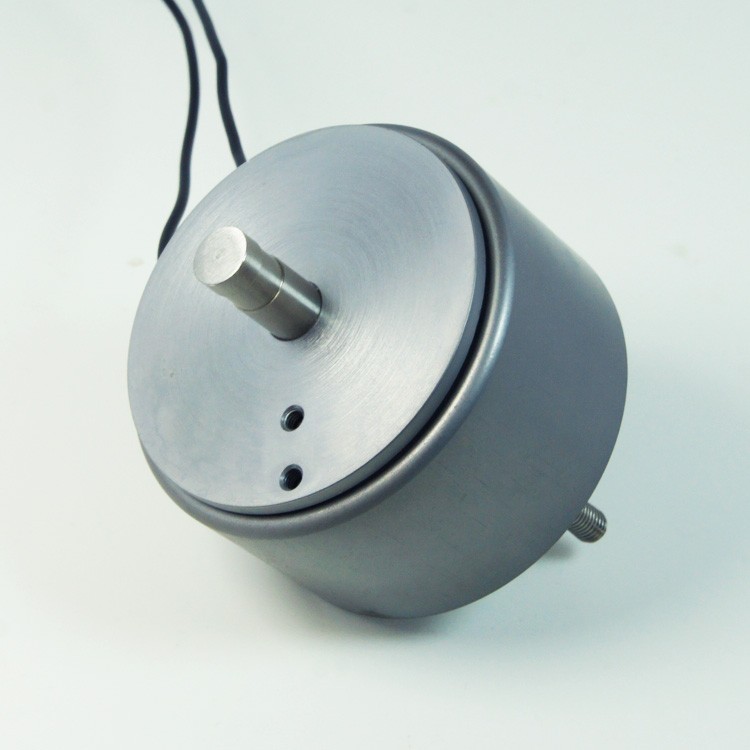

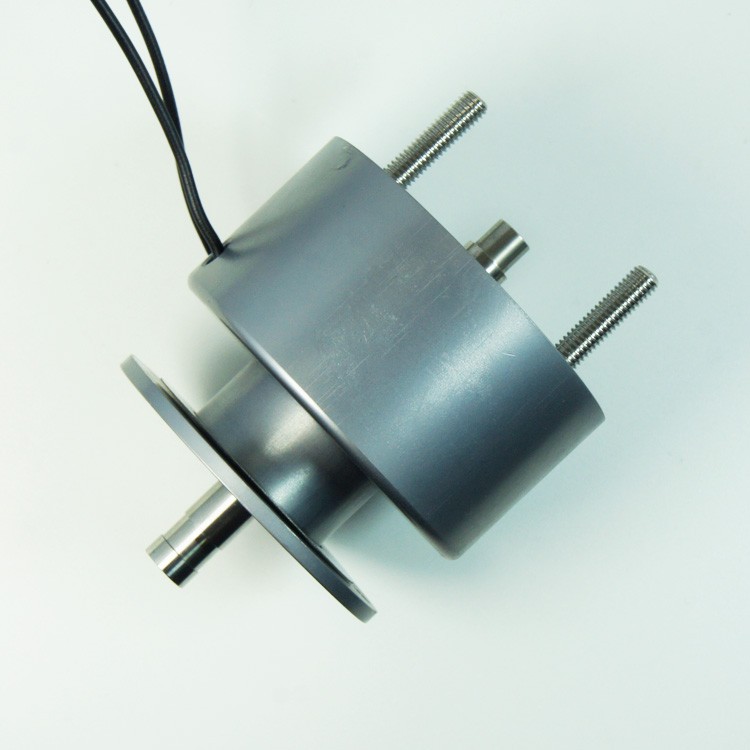

  Real photos of solenoid

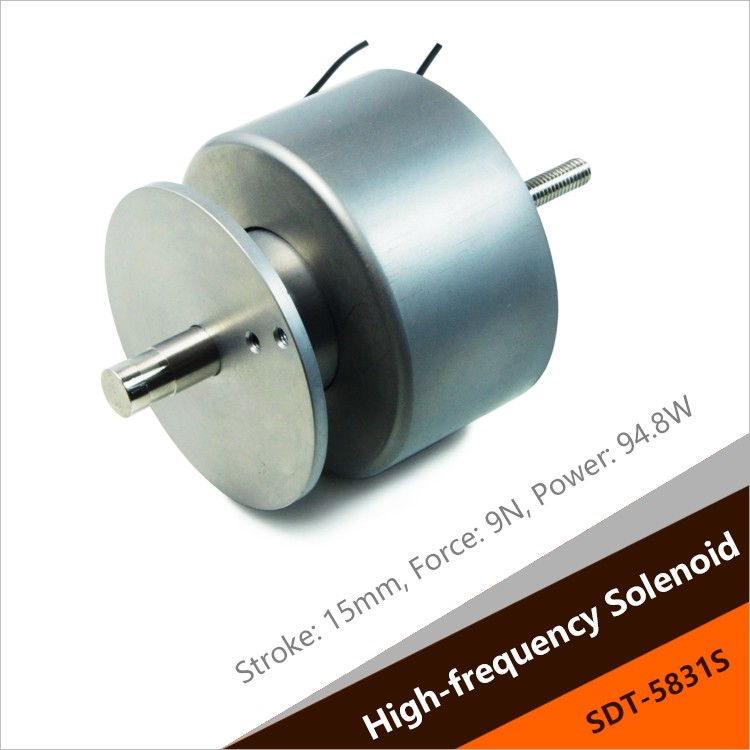

High Frequency Solenoid

push solenoid

tubular solenoids

solenoid


Size: φ57.4*30.9mm

Plunger: φ26.7mm

Voltage: DC35.1V

Stroke: 0-15mm

Force: 7-30N

Power: 94.8W

Current: 2.7A

Resistance: 13Ω

Working Cycle: 10s On, 600s Off


The high frequency solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



size of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



application of solenoid
