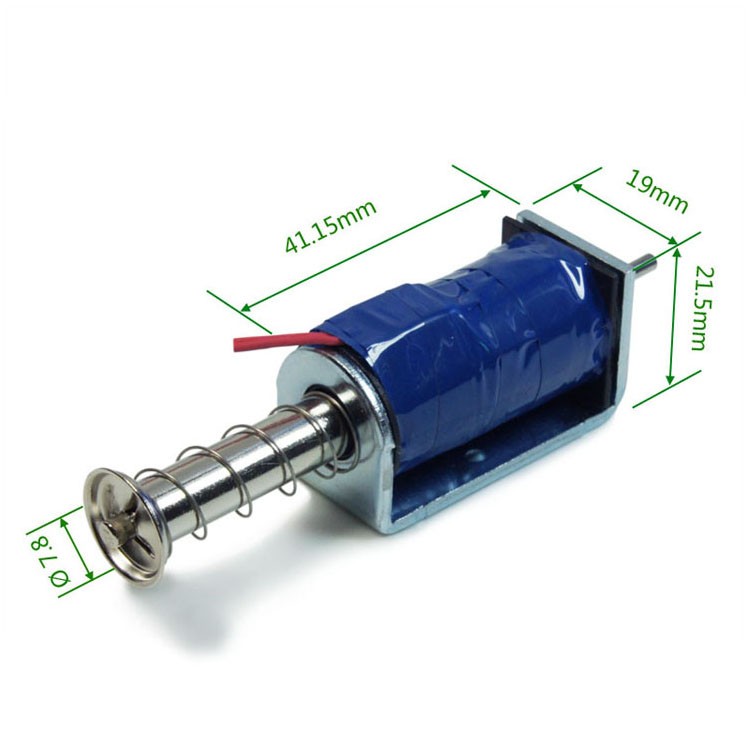

Size: 41.15*19*21.5mm

plunger：φ7.8mm

Voltage: DC34V

Stroke: 0-15mm

Force: 2-9N

Power : 144W

Current: 4.25A

Resistance: 8Ω

Working Cycle: 0.05s On, 0.5s Off


Specification download:

PDF

横线

Model: SDC-0841S-34A08


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.



  Gif animation of solenoid


push solenoid



  Demo video of solenoid in YouTube


dc 34v solenoid

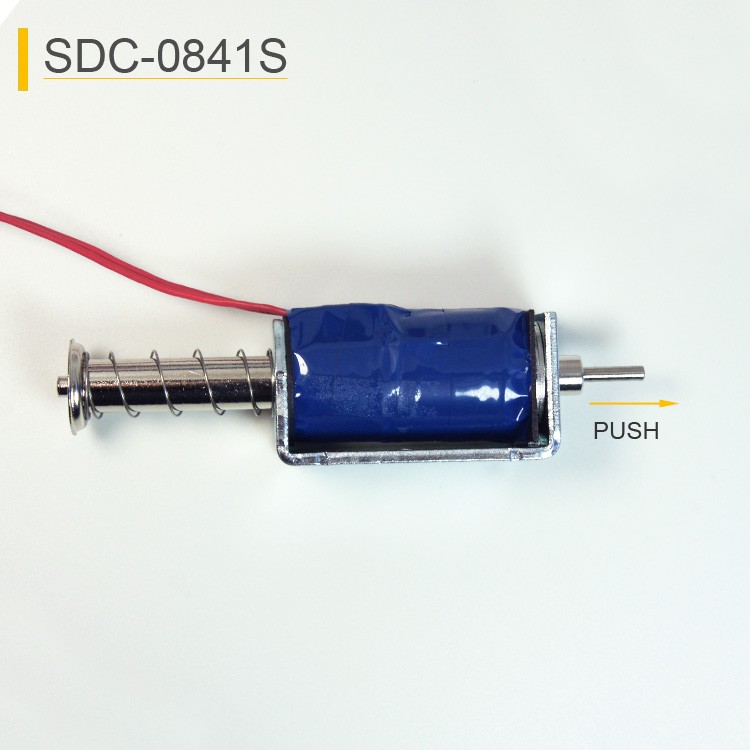

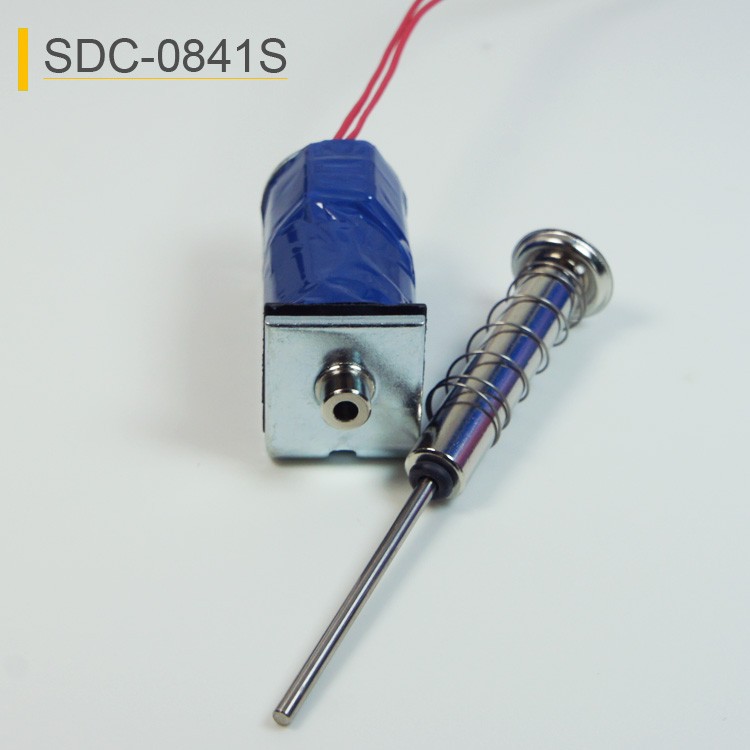

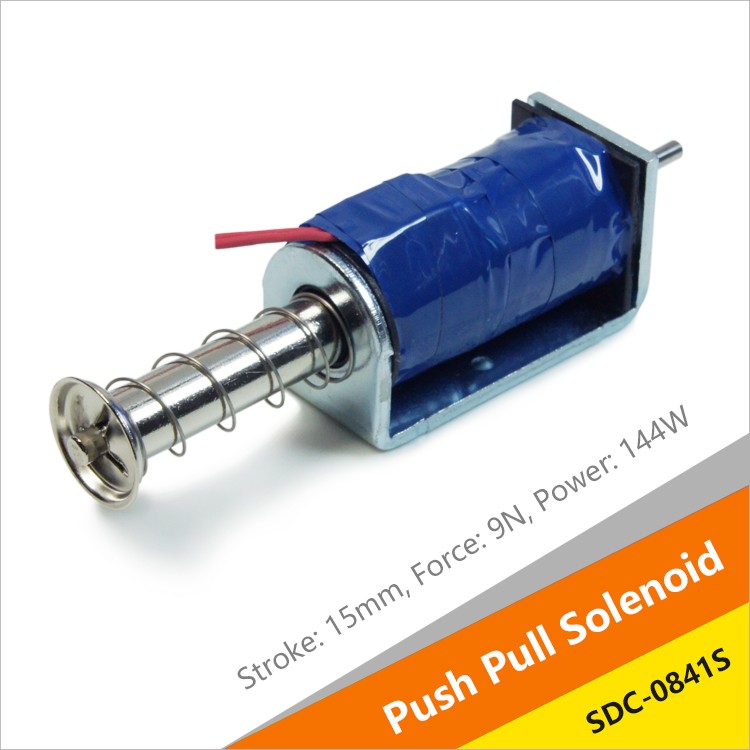

  Real photos of solenoid


push pull solenoid

push type solenoid

pull solenoid

open frame solenoid

linear solenoid


Size: 41.15*19*21.5mm

plunger：φ7.8mm

Voltage: DC34V

Stroke: 0-15mm

Force: 2-9N

Power : 144W

Current: 4.25A

Resistance: 8Ω

Working Cycle: 0.05s On, 0.5s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Vending Machine


application of solenoid
