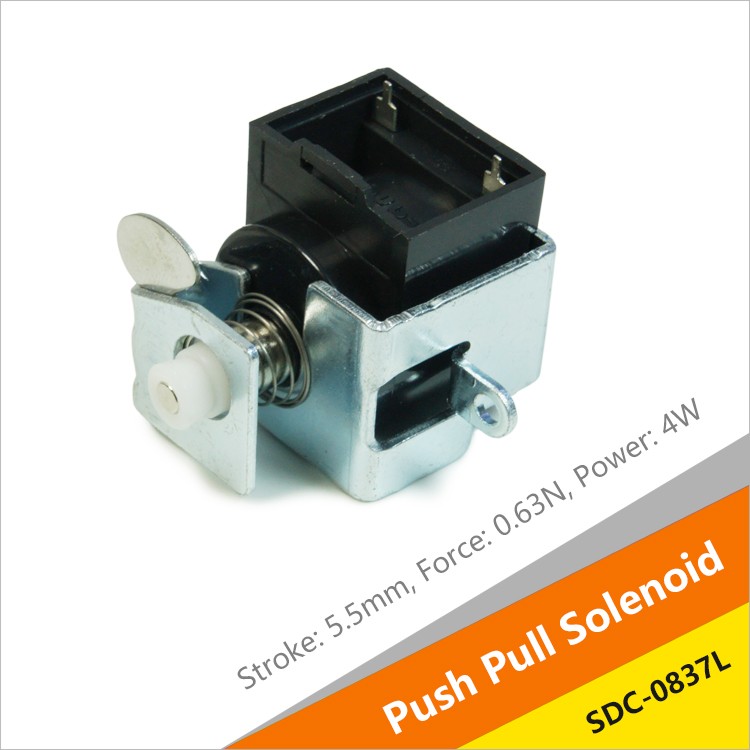

SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet
SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet
SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet
SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet
SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet
SDC-0837L Linear Push Pull Solenoid For Gun Anti-theft Cabinet

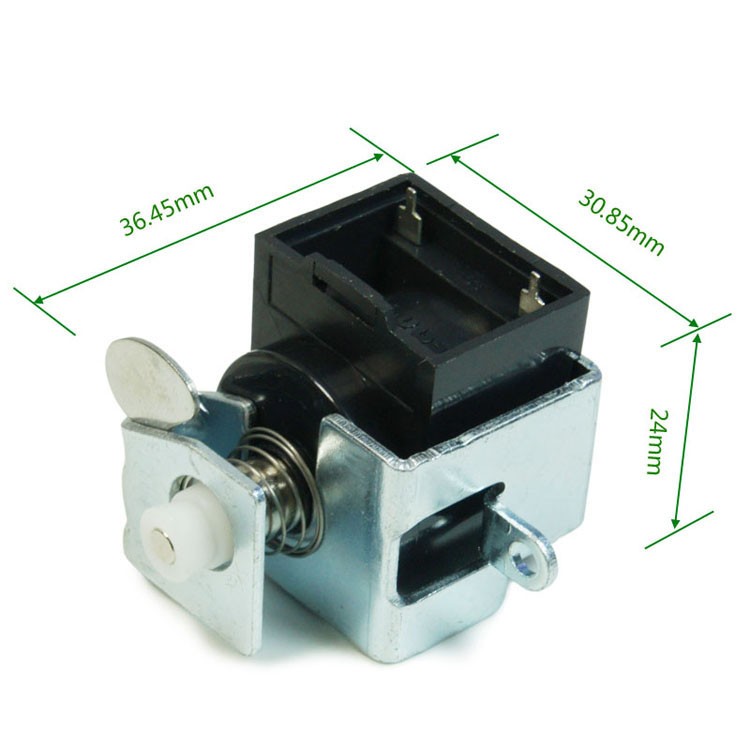

Size: 36.45*30.85*24mm

plunger:φ8mm

Voltage: DC6V

Stroke: 0-6mm

Force: 0.6-8N

Power : 4W

Current: 0.67A

Resistance: 9Ω

Working Cycle: 1s On, 1s Off


Specification download:

横线

Model: SDC-0837L-06C09


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull solenoid



  Demo video of solenoid in YouTube


dc 6v solenoid

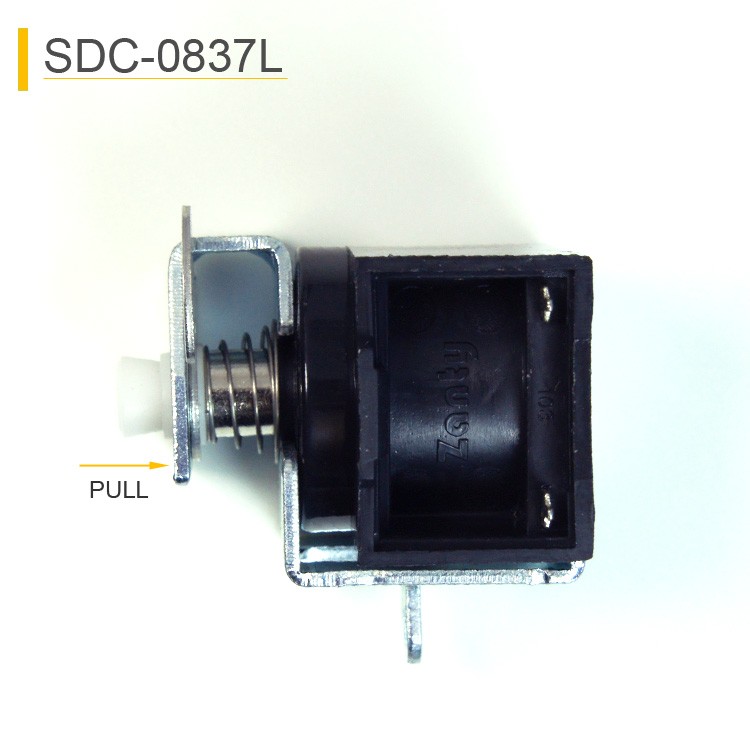

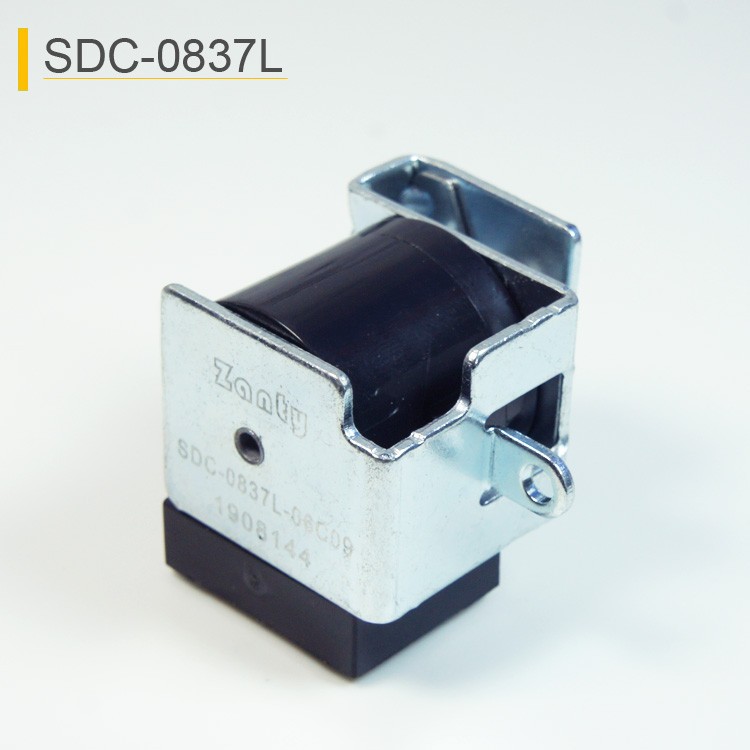

  Real photos of solenoid


push pull solenoid

frame type solenoid

push solenoid

linear solenoid

solenoid


Size: 36.45*30.85*24mm

plunger:φ8mm

Voltage: DC6V

Stroke: 0-6mm

Force: 0.6-8N

Power : 4W

Current: 0.67A

Resistance: 9Ω

Working Cycle: 1s On, 1s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Gun Anti-theft Cabinet




application of solenoid
