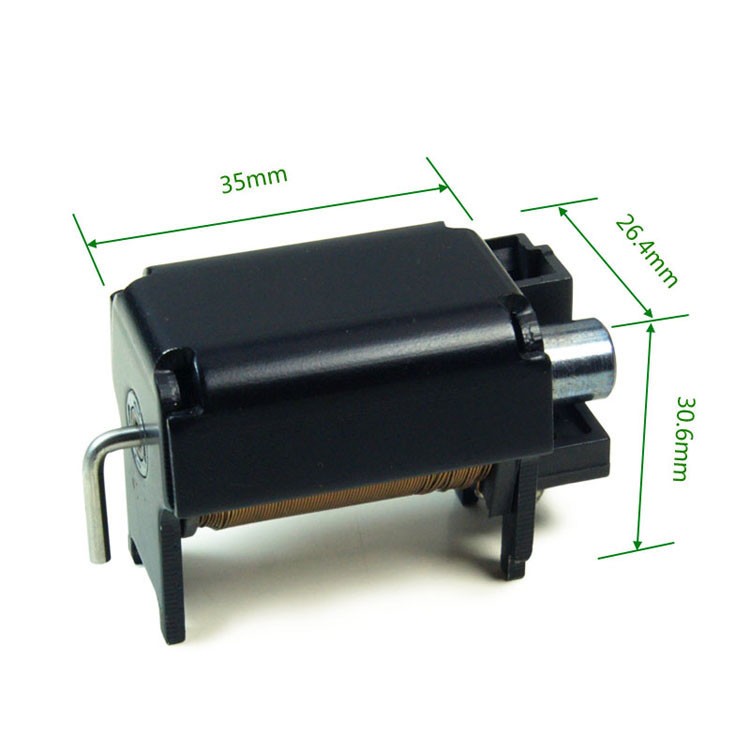

Size: 35*26.4*30.6mm

plunger:φ8mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.3-3N

Power : 6.7W

Current: 0.57A

Resistance: 21Ω

Working Cycle: Continuous Power


Specification download:

横线

Model: SDC-0835S-12A21


The frame push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid

push type solenoid




  Demo video of solenoid in YouTube


dc 12v solenoid

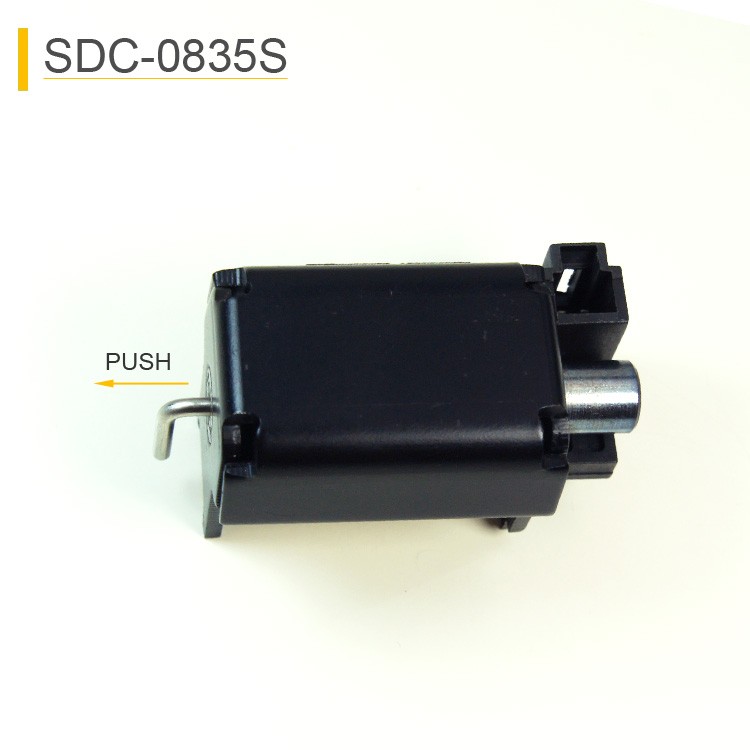

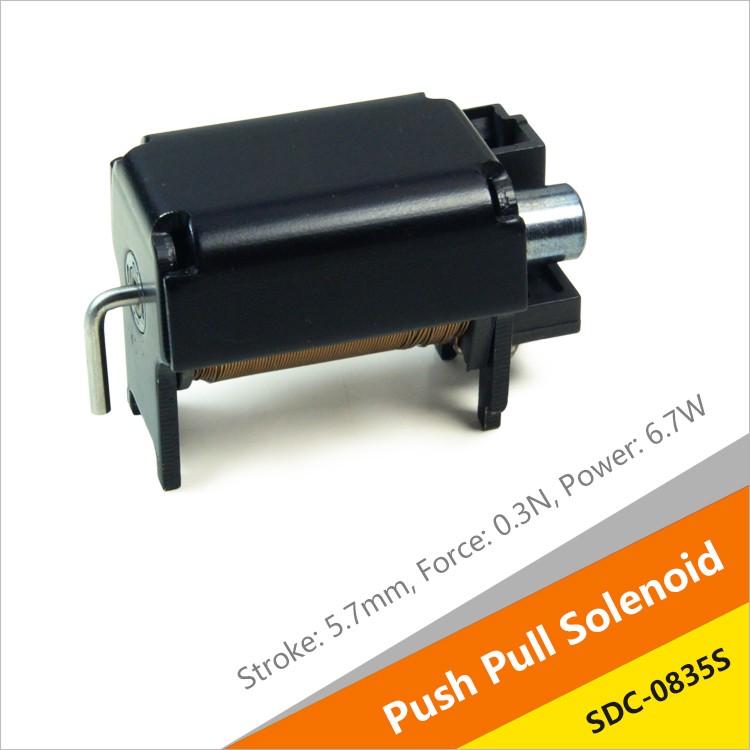

  Real photos of solenoid

push pull solenoid

push solenoid

open frame solenoid

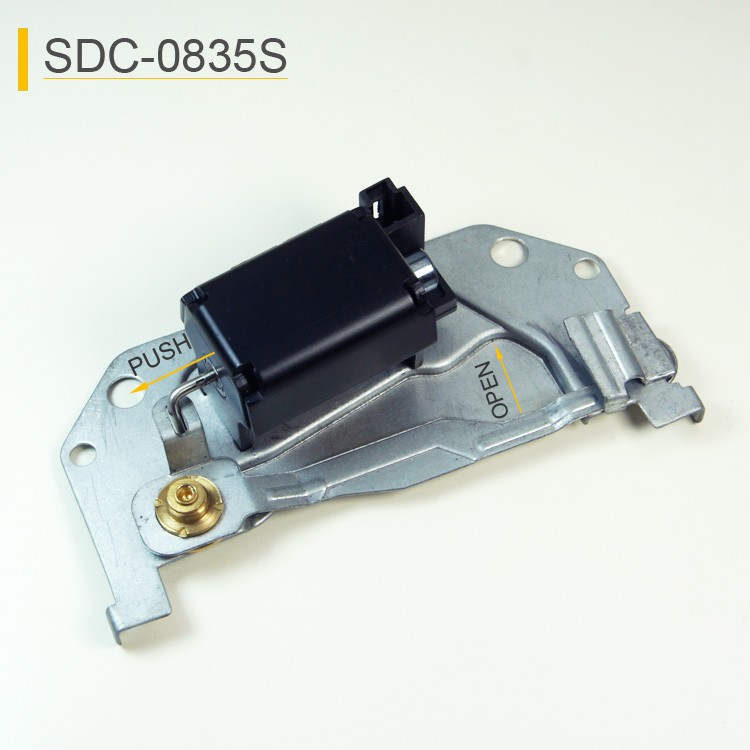

Solenoid For Automobile Far And Near Lights Switching

solenoids


Size: 35*26.4*30.6mm

plunger:φ8mm

Voltage: DC12V

Stroke: 0-6mm

Force: 0.3-3N

Power : 6.7W

Current: 0.57A

Resistance: 21Ω

Working Cycle: Continuous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.





  Drawing of solenoid


size of solenoid



  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
