SDC-0844L Linear Push Pull Solenoid For Vending Machine
SDC-0844L Linear Push Pull Solenoid For Vending Machine
SDC-0844L Linear Push Pull Solenoid For Vending Machine
SDC-0844L Linear Push Pull Solenoid For Vending Machine
SDC-0844L Linear Push Pull Solenoid For Vending Machine
SDC-0844L Linear Push Pull Solenoid For Vending Machine

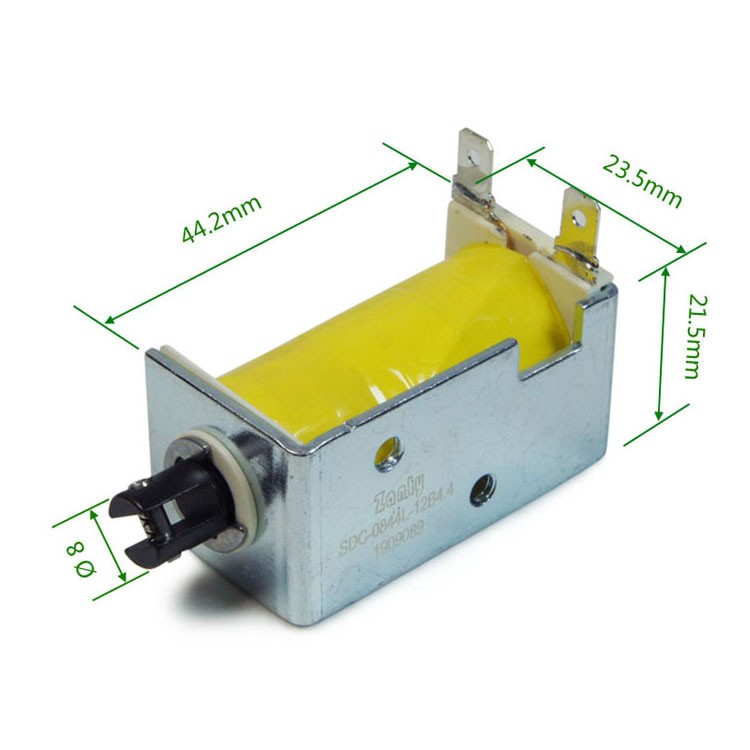

Size: 44.2*23.5*21.5mm

plunger:φ8mm

Voltage: DC12V

Stroke: 0-12mm

Force: 1-15N

Power : 32.7W

Current: 2.73A

Resistance: 4.4Ω

Working Cycle: 1s On, 3s Off


Specification download:

横线

Model: SDC-0844L-12B4.4


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.



  Gif animation of solenoid

pull type solenoid



  Demo video of solenoid in YouTube

dc 12v solenoid

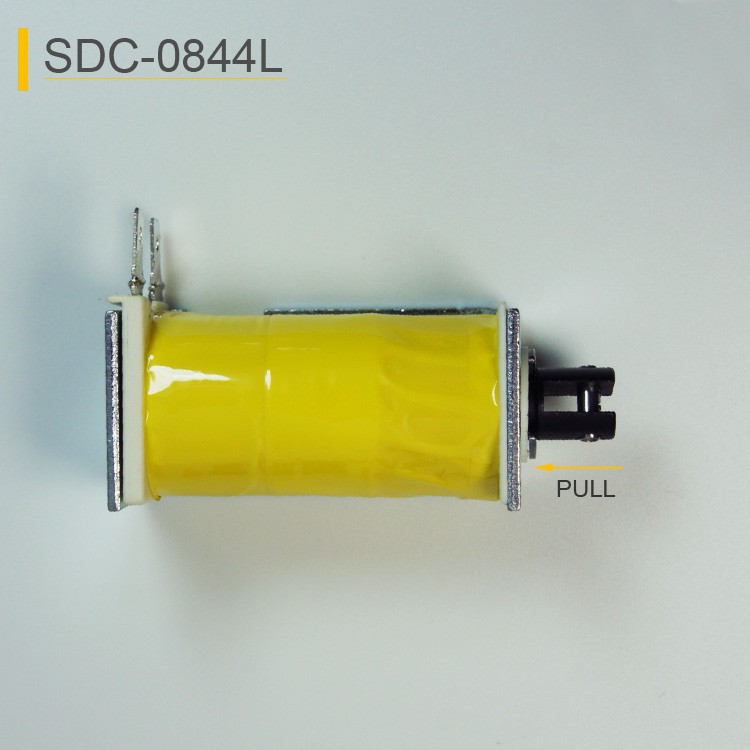

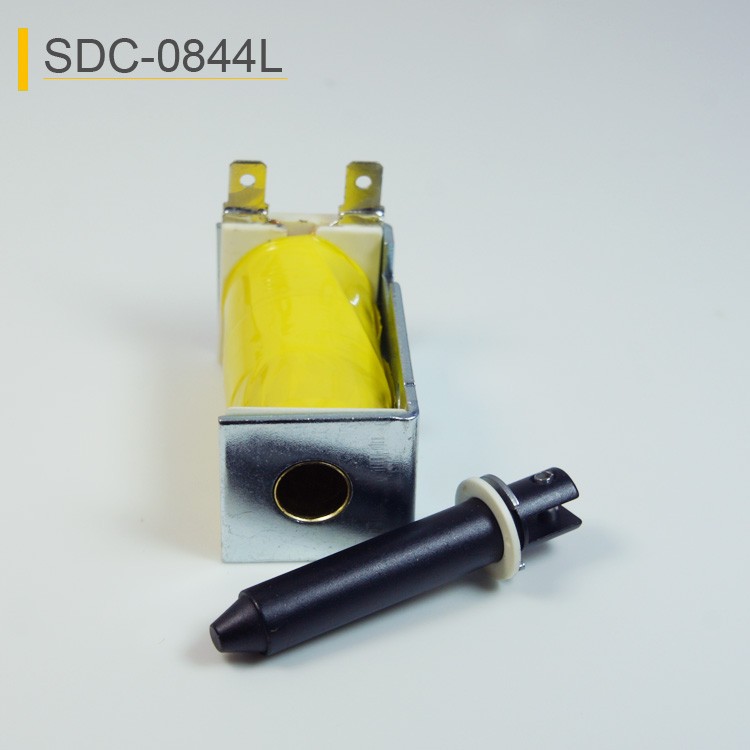

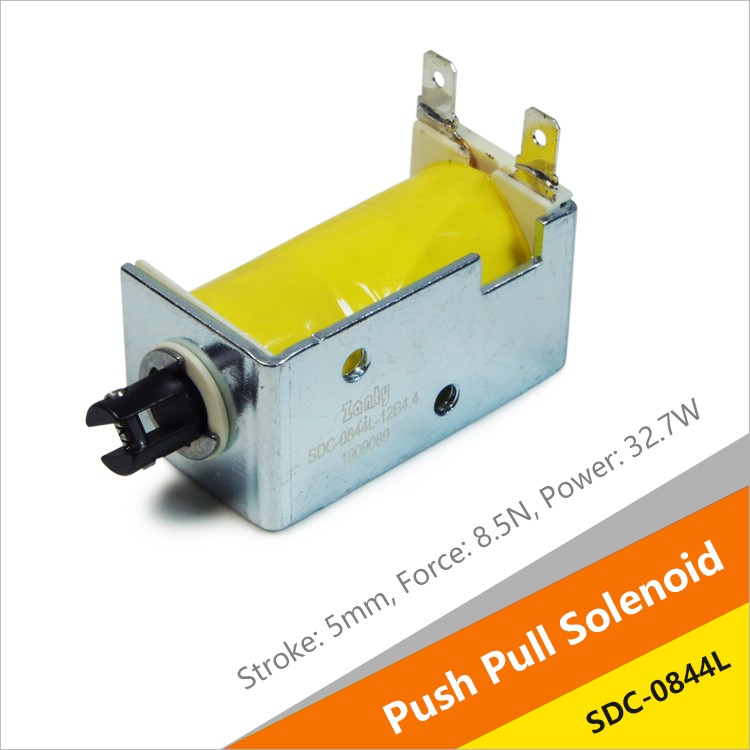

  Real photos of solenoid

push-pull solenoid

pull solenoid

push solenoid

linear solenoid

open frame solenoid


Size: 44.2*23.5*21.5mm

plunger:φ8mm

Voltage: DC12V

Stroke: 0-12mm

Force: 1-15N

Power : 32.7W

Current: 2.73A

Resistance: 4.4Ω

Working Cycle: 1s On, 3s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid



  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Vending Machine


application of solenoid
