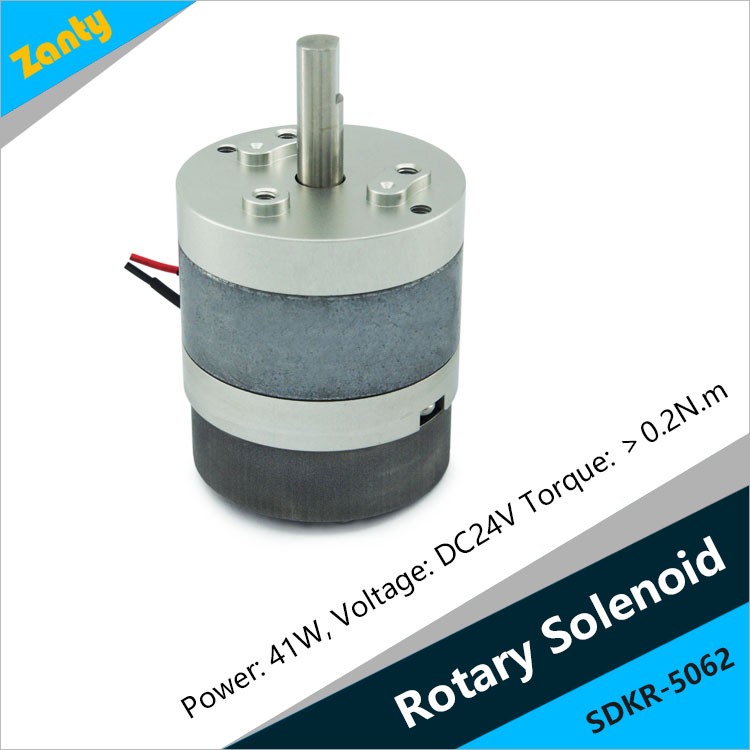

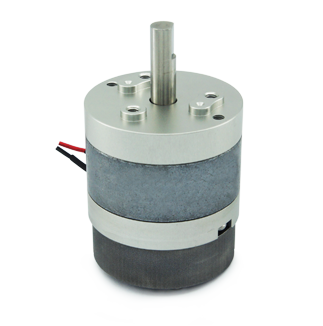

SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security
SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security
SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security
SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security
SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security
SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security

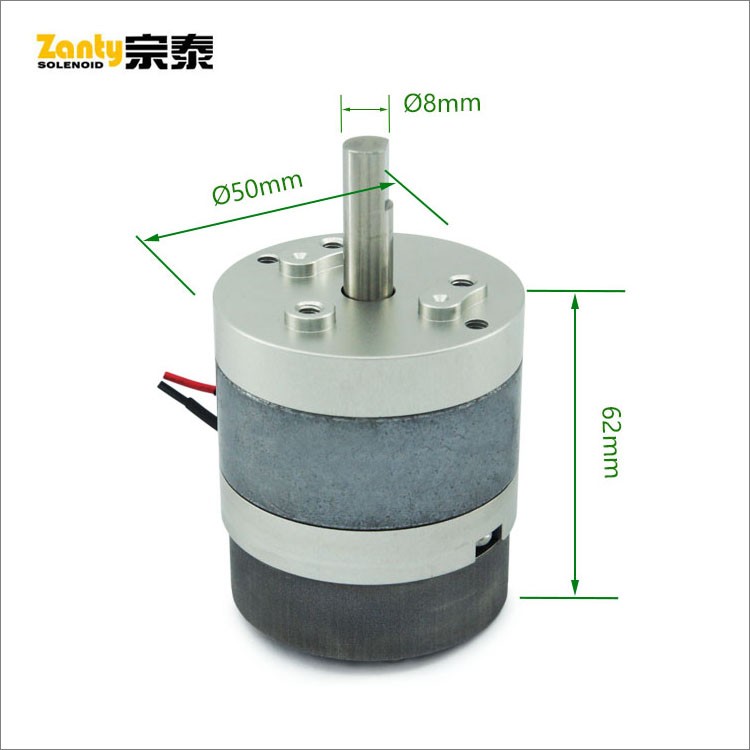

Size: φ50*62mm

Voltage: DC24V

Power : 41W

Current: 1.7A

Resistance: 14Ω

Rotation angle: 0-60°

Twisting force: ≥0.2N.m

Life: ≥7000,000 times

Working cycle: 0.03s on, 0.12s off


Specification download:

横线

Model: SDKR-5062-24A14


Bistable Rotary Solenoids are especially well suited to paper transportation and sorting systems: for example, ATM machines and other banknote sorting mechanisms. These versatile rotary solenoids can be driven in either direction and hold in either end position with no current applied.


Characteristics of Bistable Rotary Solenoids:


• Rotary angle up to +/-55° around center position

• Torque up to 0.4Nm

• High life expectancy due to ball bearings

• No axial travel

• Fast response: Cycle times<5ms possible

• No integral mechanical endstops (must be supplied either in the customer mechanics or as a custom option)

• Options: Viscous damping with ferro-fluids: smooth operation, soft mechanical endstop, less noise



SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security


SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security

SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security

SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security


Size: φ50*62mm

Voltage: DC24V

Power : 41W

Current: 1.7A

Resistance: 14Ω

Rotation angle: 0-60°

Twisting force: ≥0.2N.m

Life: ≥7000,000 times

Working cycle: 0.03s on, 0.12s off


The  bistable rotary solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!




SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security

SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security

SDKR-5062 Bistable Rotary Solenoid applied to optical gate network data security


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
