Model: SDR-6042-24A15

Bistable Rotary Solenoids are especially well suited to paper transportation and sorting systems: for example, ATM machines and other banknote sorting mechanisms. These versatile rotary solenoids can be driven in either direction and hold in either end position with no current applied.

Characteristics of Bistable Rotary Solenoids:

• Rotary angle up to +/-55° around center position

• Torque up to 0.4Nm

• High life expectancy due to ball bearings

• No axial travel

• Fast response: Cycle times<5ms possible

• No integral mechanical endstops (must be supplied either in the customer mechanics or as a custom option)

• Options: Viscous damping with ferro-fluids: smooth operation, soft mechanical endstop, less noise

  Gif animation of solenoid

  Demo video of solenoid in YouTube

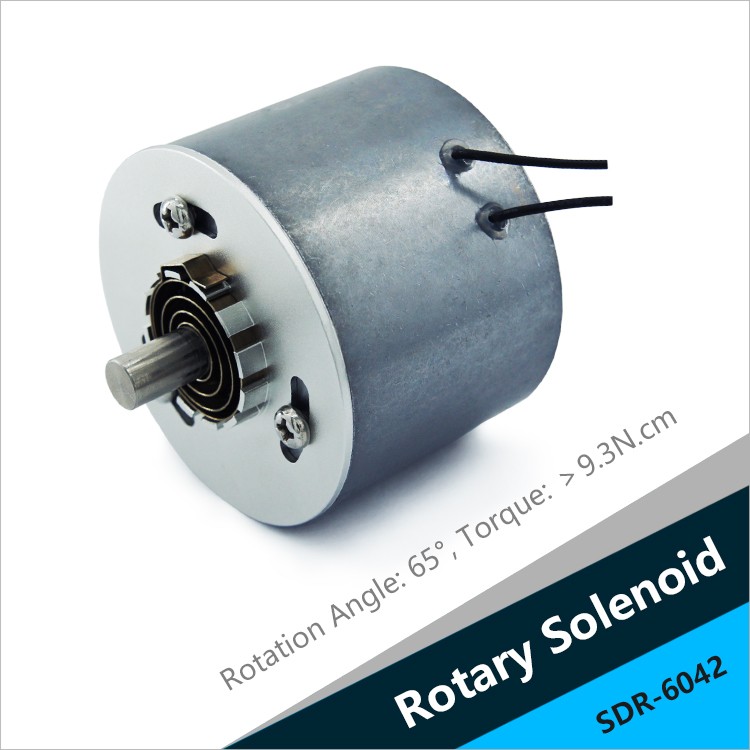

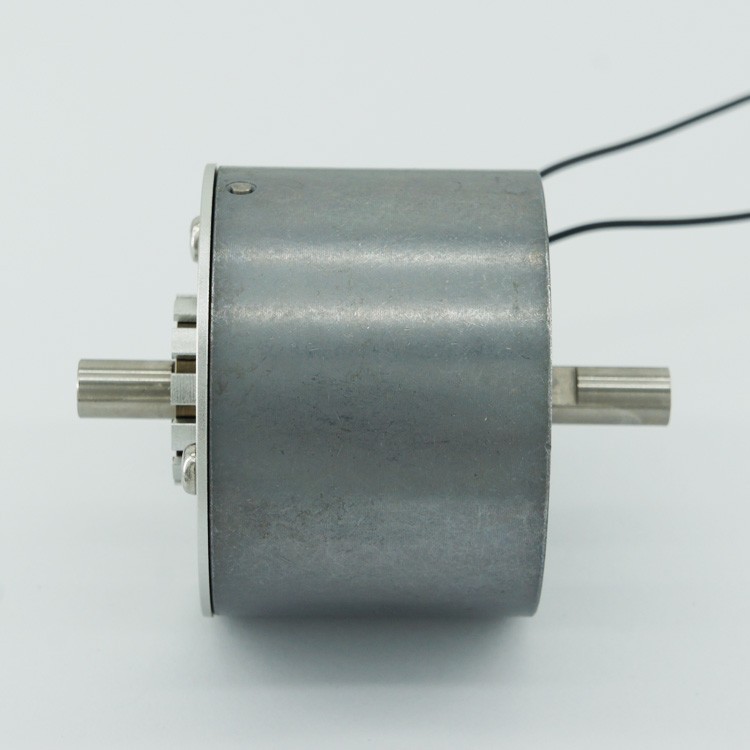

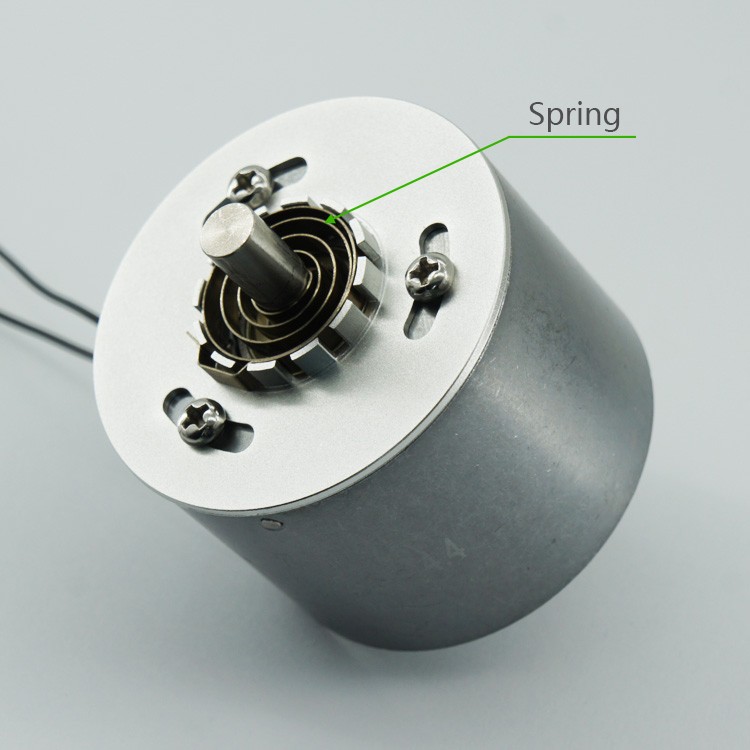

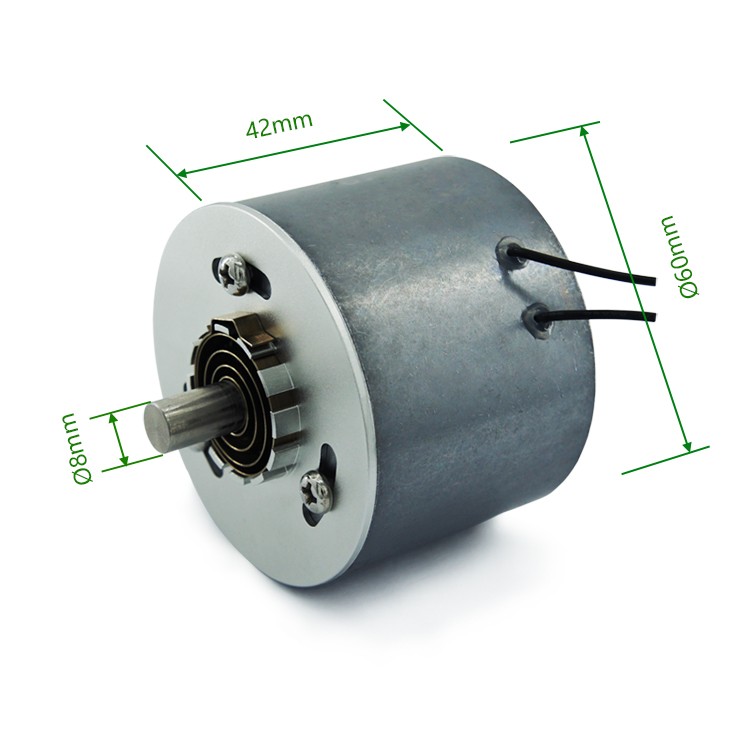

  Real photos of solenoid
