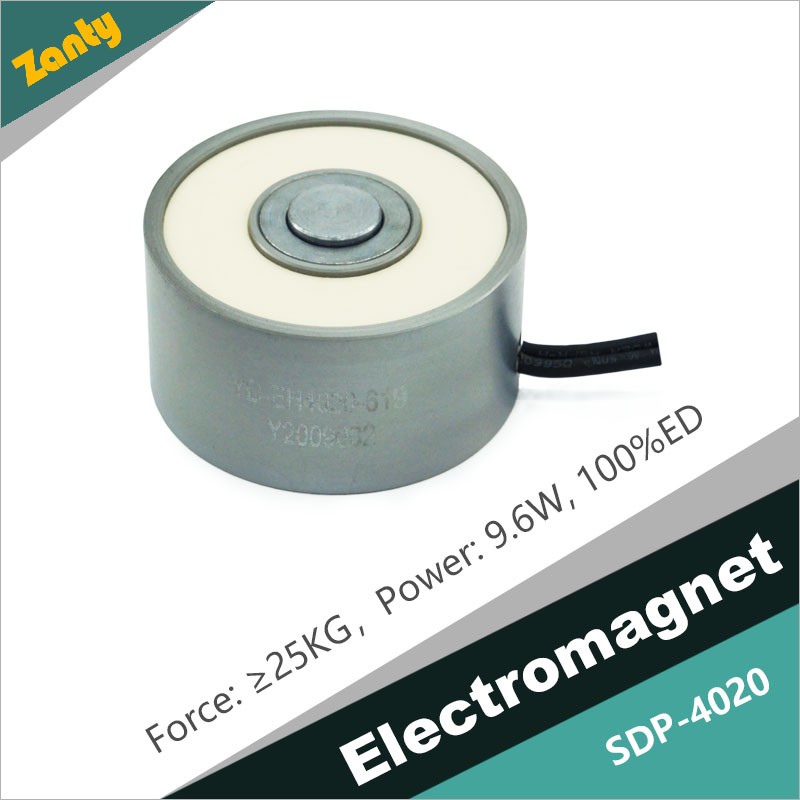

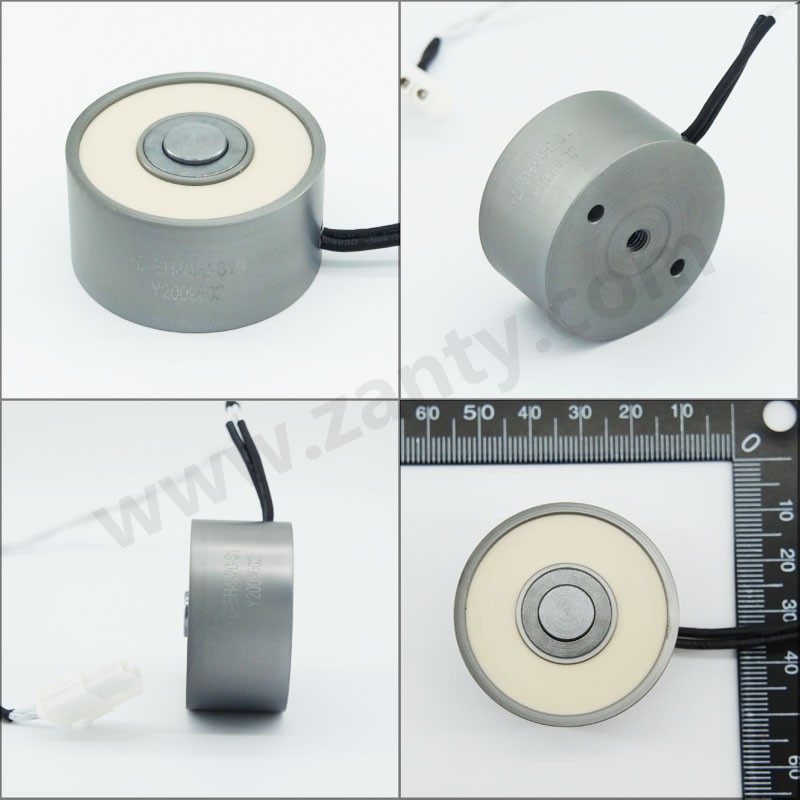

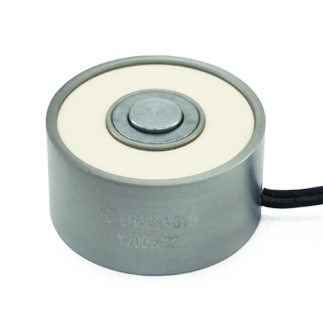

SDP-4020 Electromagnets applied to automatic production line
SDP-4020 Electromagnets applied to automatic production line
SDP-4020 Electromagnets applied to automatic production line
SDP-4020 Electromagnets applied to automatic production line
SDP-4020 Electromagnets applied to automatic production line
SDP-4020 Electromagnets applied to automatic production line

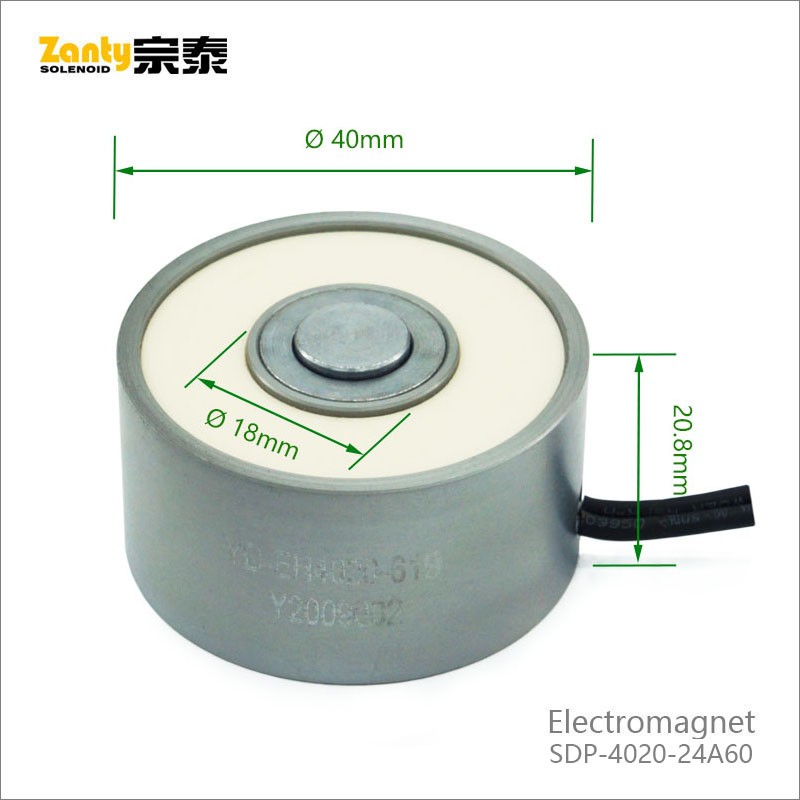

Size: φ40*20.8mm

Voltage: DC24V

Power: 9.6W

Current: 0.4A

Resistance: 60Ω

Force: ≥25KG

Life: ≥1000,000 times

Working cycle: 100%ED


Specification download:

横线

Model: SDP-4020-24A60


The electromagnet can produce strong adsorption force when it is energized, and can stop or move the adsorbed object when it is installed in the automation equipment. It is applied to the transportation and transmission of materials or products on automatic distribution production lines, sorting machines, manipulators, experimental equipment, grinding and other automatic processing production lines. It is simple to control, labor-saving and power saving, and can be remotely operated.




SDP-4020 Electromagnets applied to automatic production line

SDP-4020 Electromagnets applied to automatic production line

SDP-4020 Electromagnets applied to automatic production line


Size: φ40*20.8mm

Voltage: DC24V

Power: 9.6W

Current: 0.4A

Resistance: 60Ω

Force: ≥25KG

Life: ≥1000,000 times

Working cycle: 100%ED


The electromagnets (solenoids) are non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!




SDP-4020 Electromagnets applied to automatic production line

SDP-4020 Electromagnets applied to automatic production line


Our electromagnets (solenoids) are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
