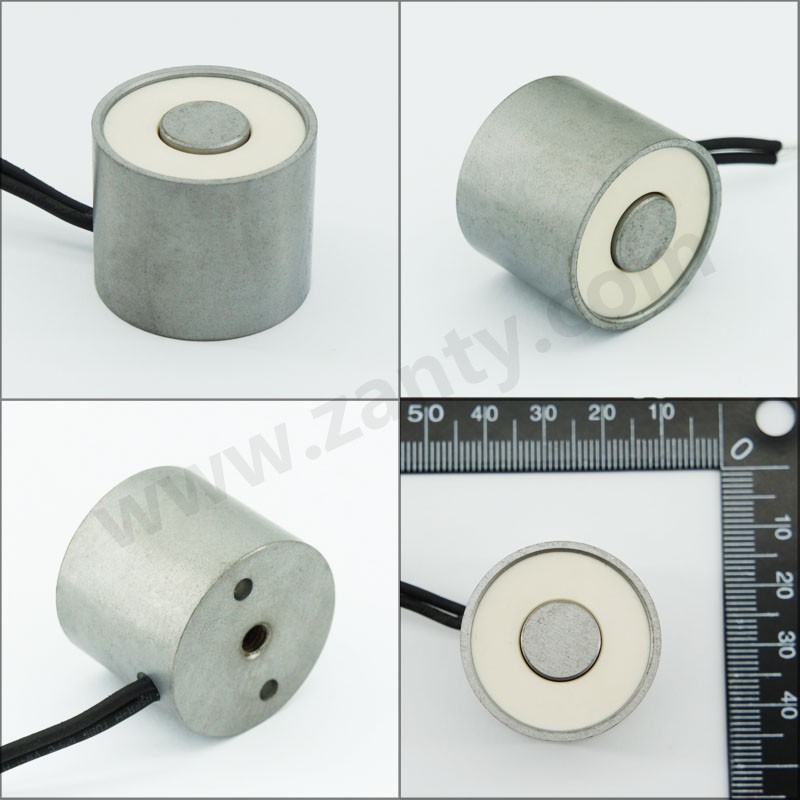

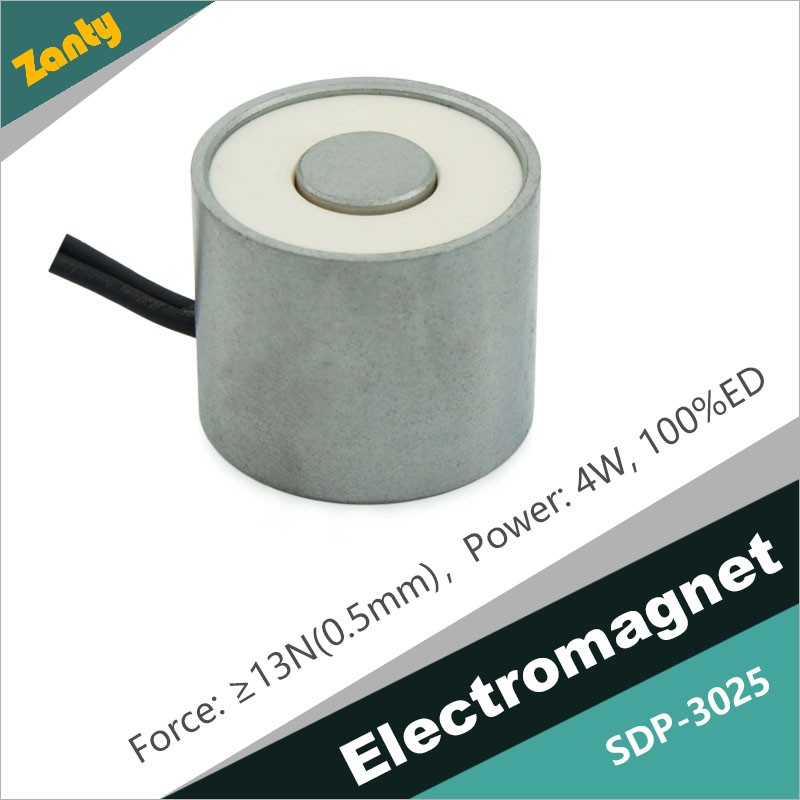

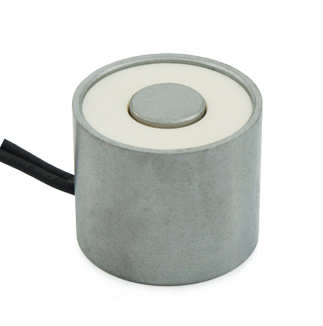

SDP-3025 Electromagnets applied to mechanical arm
SDP-3025 Electromagnets applied to mechanical arm
SDP-3025 Electromagnets applied to mechanical arm
SDP-3025 Electromagnets applied to mechanical arm
SDP-3025 Electromagnets applied to mechanical arm
SDP-3025 Electromagnets applied to mechanical arm

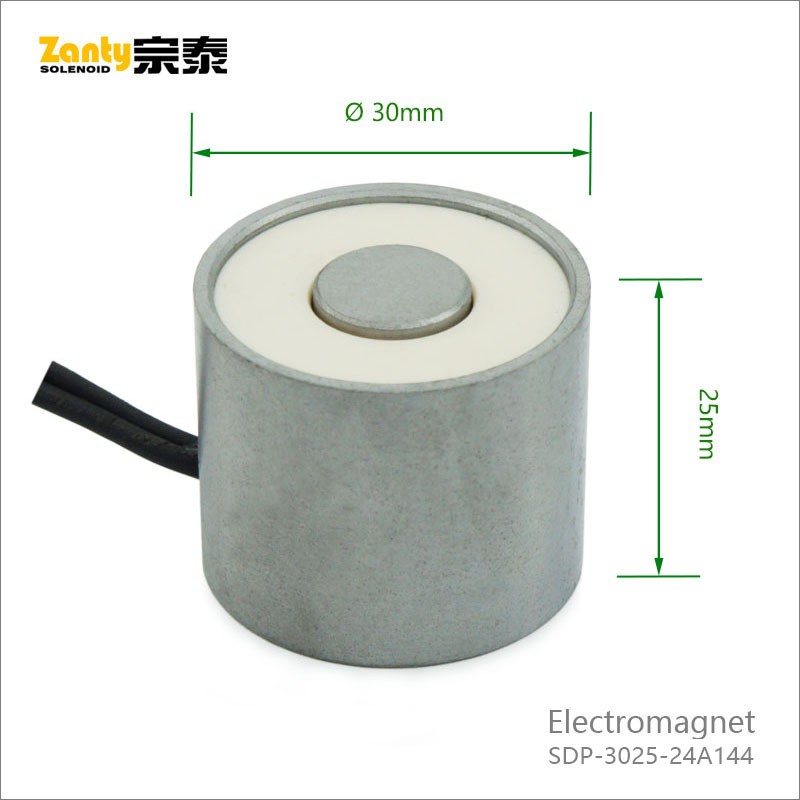

Size: φ30*25mm

Voltage: DC24V

Power: 4W

Current: 0.4A

Resistance: 144Ω

Force: ≥13N(0.5mm)

Life: ≥1000,000 times

Working cycle: 100%ED


Specification download:

横线

Model: SDP-3025-24A144


The electromagnet can produce strong adsorption force when it is energized, and can stop or move the adsorbed object when it is installed in the automation equipment. It is applied to the transportation and transmission of materials or products on automatic distribution production lines, sorting machines, manipulators, experimental equipment, grinding and other automatic processing production lines. It is simple to control, labor-saving and power saving, and can be remotely operated.



SDP-3025 Electromagnets applied to mechanical arm

SDP-3025 Electromagnets applied to mechanical arm

SDP-3025 Electromagnets applied to mechanical arm


Size: φ30*25mm

Voltage: DC24V

Power: 4W

Current: 0.4A

Resistance: 144Ω

Force: ≥13N(0.5mm)

Life: ≥1000,000 times

Working cycle: 100%ED


The electromagnets (solenoids) are non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!




SDP-3025 Electromagnets applied to mechanical arm

SDP-3025 Electromagnets applied to mechanical arm



Our electromagnets (solenoids) are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
