Size: 32*26*22mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-5mm

Force: 1-5N

Power: 3.1W

Current: 0.13A

Resistance: 186Ω

Life: ≥300,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDO-0832S-24A186


The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.



  Gif animation of solenoid

SDO-0832S Push Pull Solenoid For Embroidery And Textile Machines



  Demo video of solenoid in YouTube

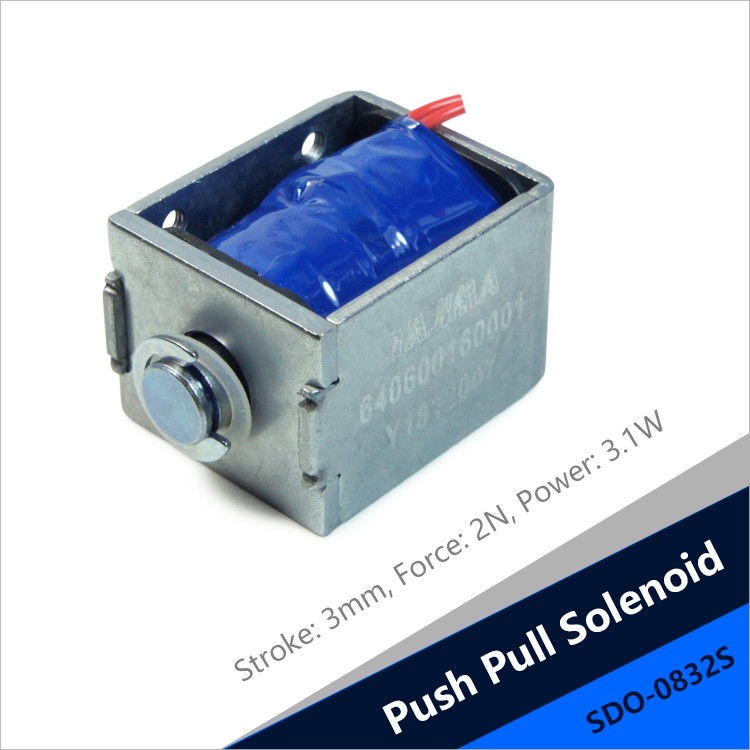

Push Pull Solenoid

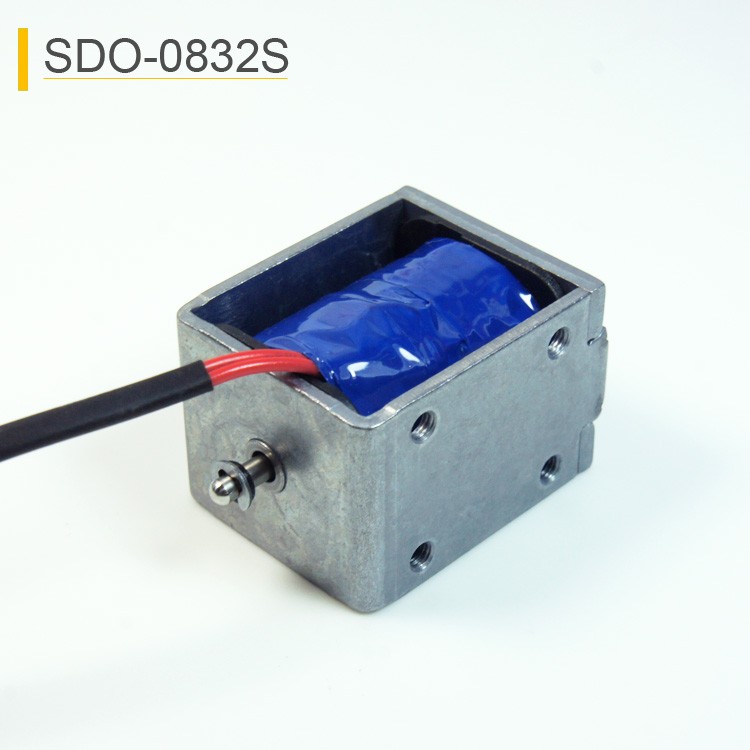

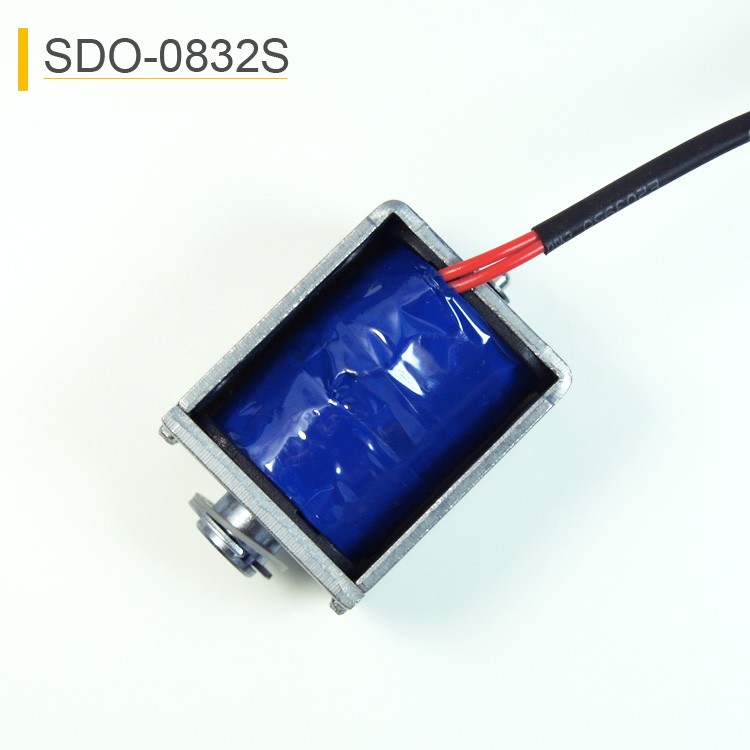

  Real photos of solenoid

solenoid

push solenoid

open frame solenoid

pull solenoid

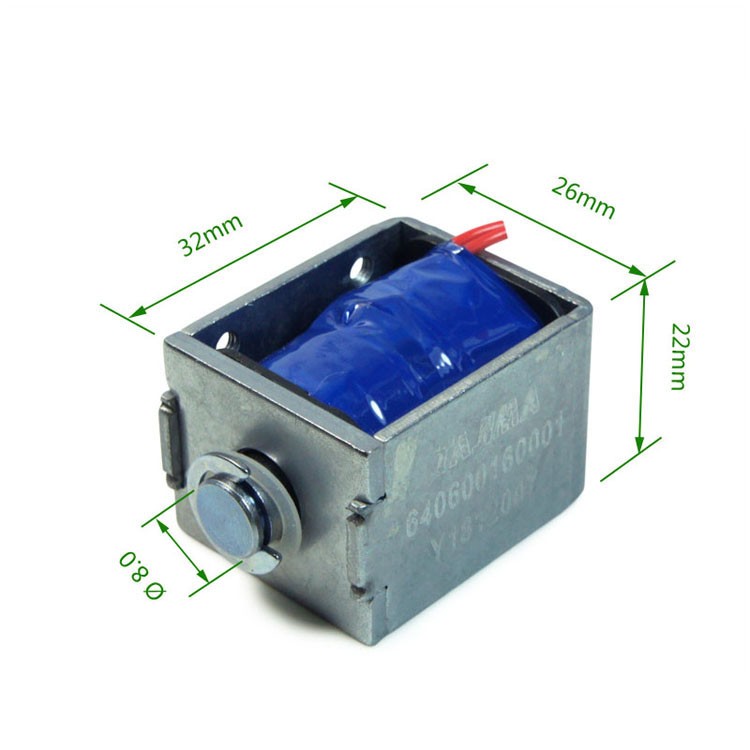

size of solenoid


Size: 32*26*22mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-5mm

Force: 1-5N

Power: 3.1W

Current: 0.13A

Resistance: 186Ω

Life: ≥300,000 times

Working Cycle: Continuous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


linear solenoid




 Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.

Solenoid For Textile Machines


application of solenoid
