SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine
SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine
SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine
SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine
SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine
SDT-1327S Tubular Solenoid For Textile Machine Embroidery Machine

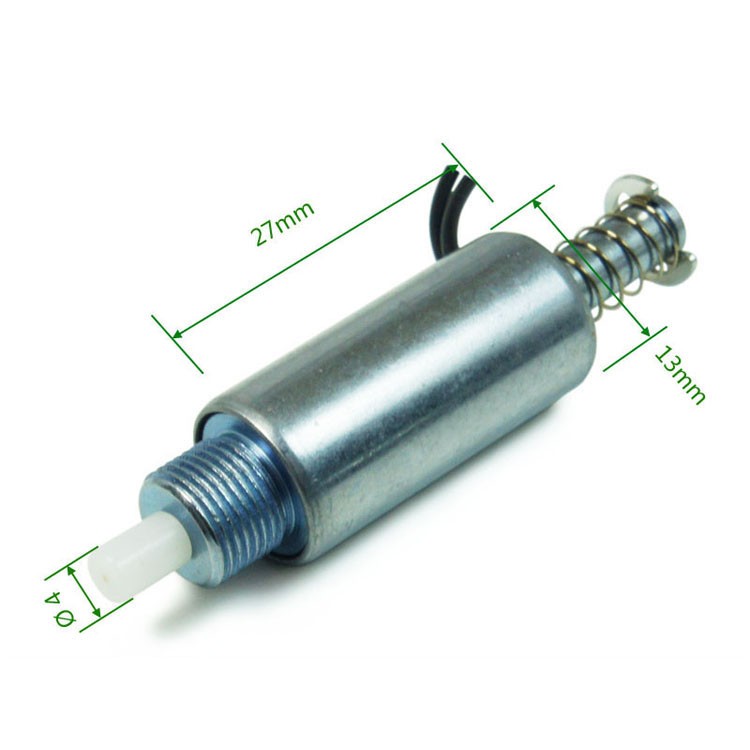

Size: φ13*27mm

plunger:φ5mm

Voltage: DC24V

Stroke: 0-10mm

Force: 1-5N

Power : 24W

Current: 1A

Resistance: 24Ω

Life: ≥1000,000 times

Working Cycle: 0.01s On, 0.10s Off


Specification download:

横线

Model: SDT-1327S-24A24


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



  Gif animation of solenoid

push type solenoid



  Demo video of solenoid in YouTube

dc 24v solenoid

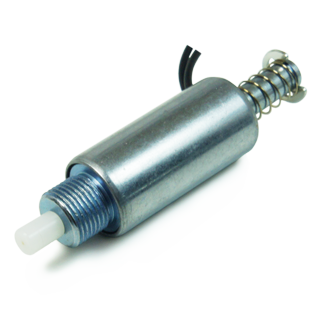

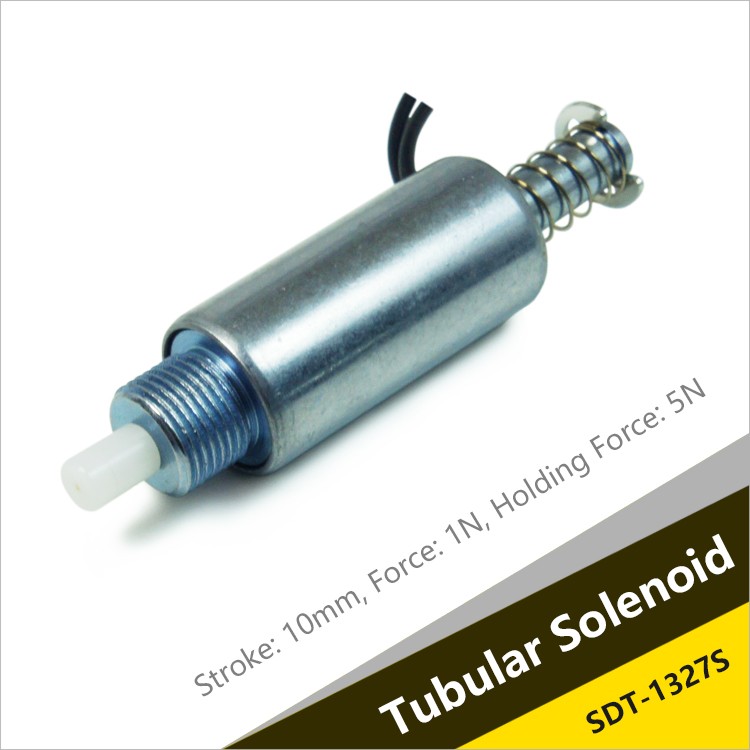

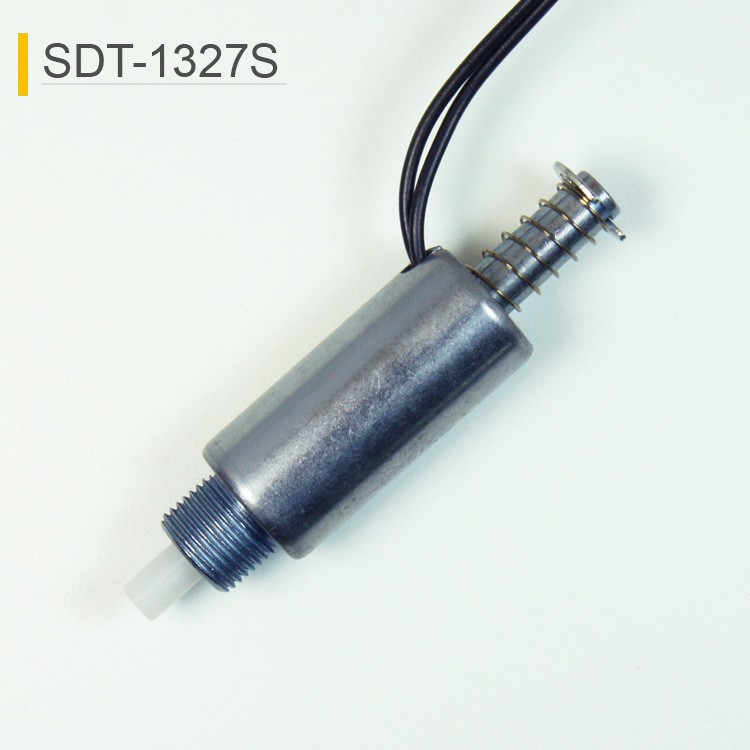

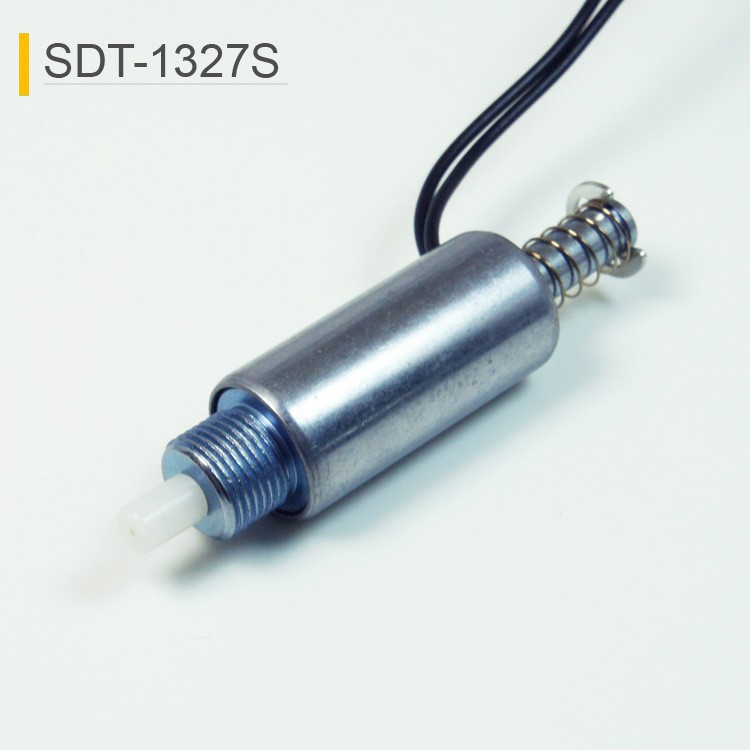

  Real photos of solenoid

tubular solenoid

push tubular solenoid

linear tubular solenoid

push solenoid

solenoid


Size: φ13*27mm

plunger:φ5mm

Voltage: DC24V

Stroke: 0-10mm

Force: 1-5N

Power : 24W

Current: 1A

Resistance: 24Ω

Life: ≥1000,000 times

Working Cycle: 0.01s On, 0.10s Off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.



Solenoid For Textile Machine Embroidery Machine


application of solenoid
