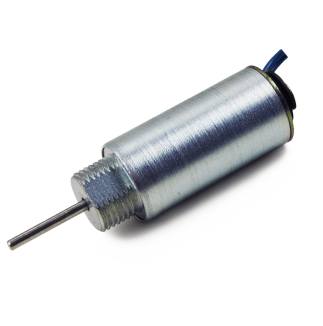

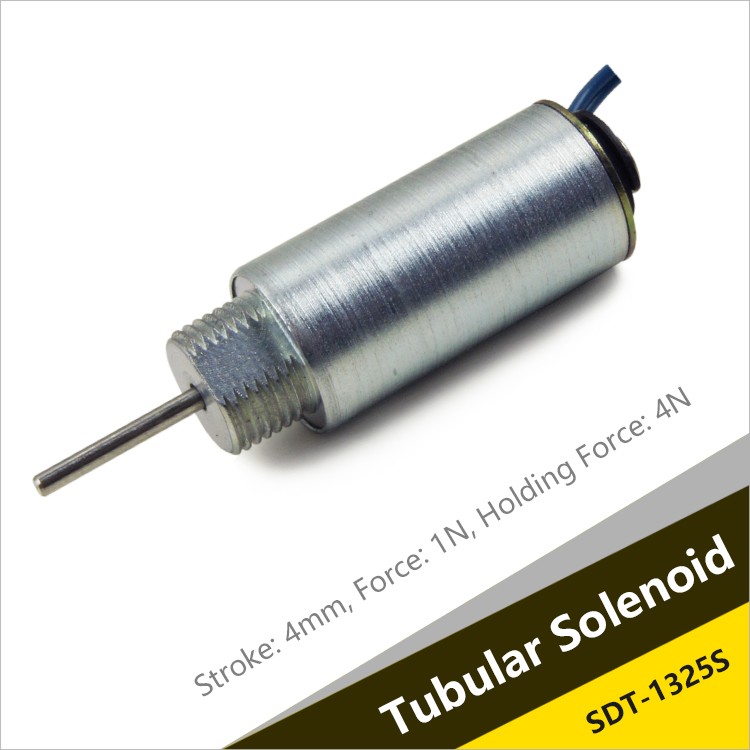

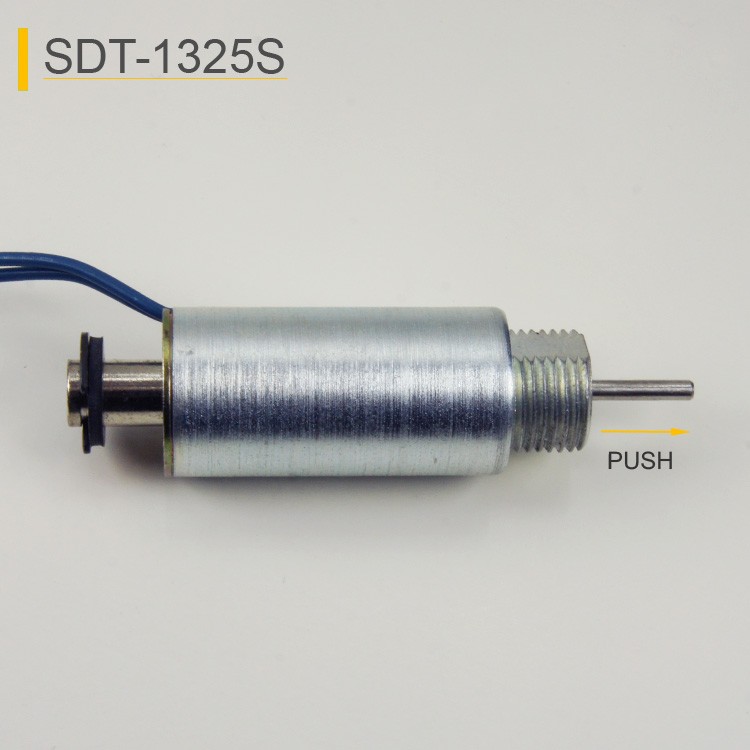

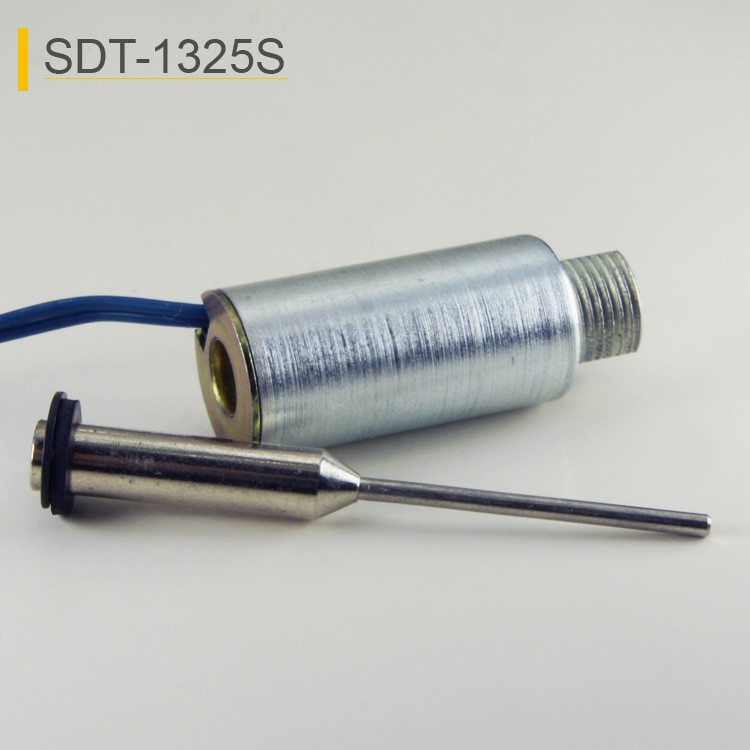

SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine
SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine
SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine
SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine
SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine
SDT-1325S Tubular Push Solenoid For Textile / Embroidery Machine

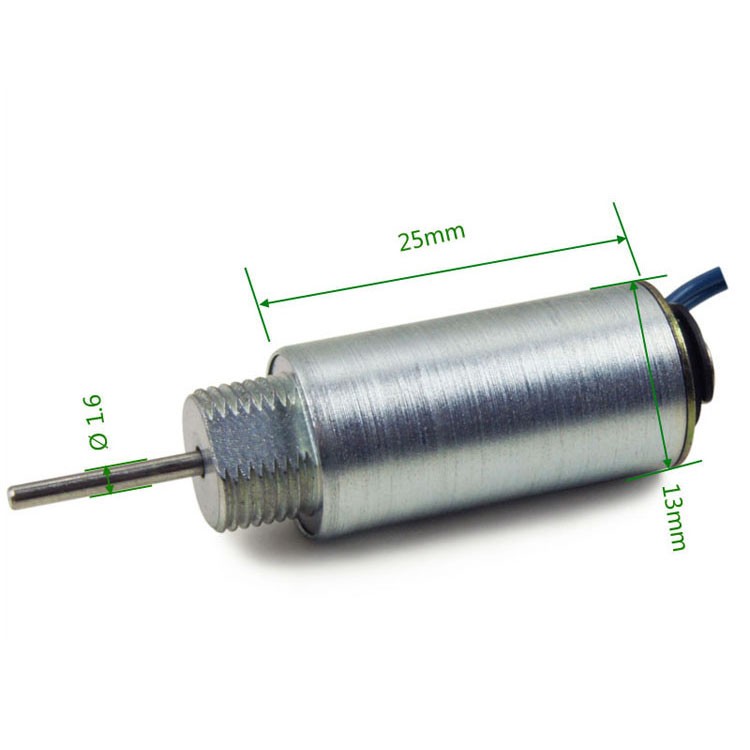

Size: φ13*25mm

plunger:φ5mm

Voltage: DC13.6V

Stroke: 0-5mm

Force: 1-5N

Power : 4.18W

Current: 0.31A

Resistance: 44.2Ω

Life: ≥1000,000 times

Working Cycle: 0.01s On, 0.10s Off


Specification download:

横线

Model: SDT-1325S-13.6A44.2


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



tubular solenoid

push solenoid

Tubular Push Solenoid

linear tubular solenoid

mini tubular solenoid


Size: φ13*25mm

plunger:φ5mm

Voltage: DC13.6V

Stroke: 0-5mm

Force: 1-5N

Power : 4.18W

Current: 0.31A

Resistance: 44.2Ω

Life: ≥1000,000 times

Working Cycle: 0.01s On, 0.10s Off


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid

size of solenoid


  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Textile / Embroidery Machine


application of solenoid
