SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun
SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun
SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun
SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun
SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun
SDK2-0734S Double Holding Solenoid For Electronic Lock Of Charging Gun

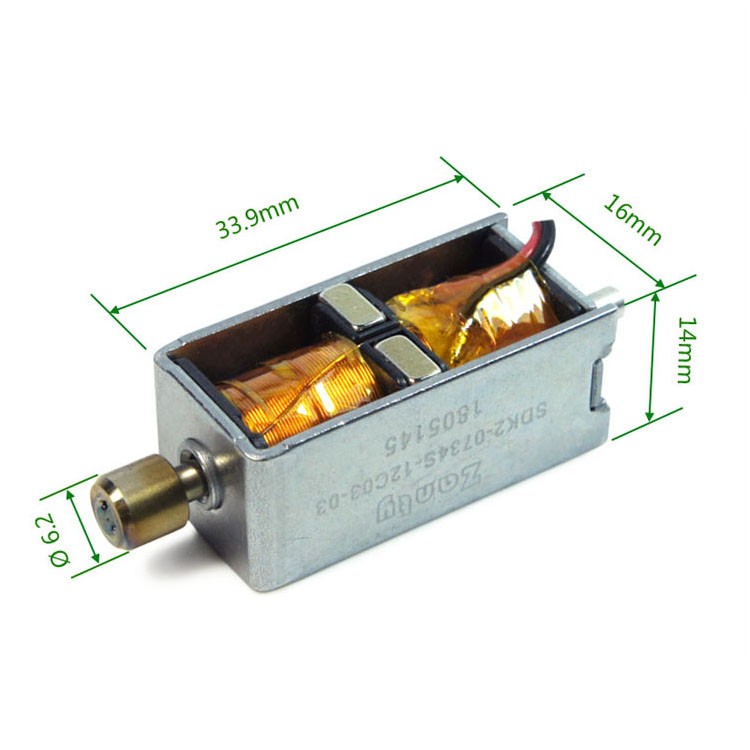

Size: 33.9*16*14mm

plunger:φ7mm

Voltage: DC12V

Stroke: 0-6mm

Force: 2-4N

Holding Force: 6-10N

Power : 24W

Current: 2A

Resistance: 6Ω

Life: ≥100,000 times

Working  Cycle: 0.2s on, 2s off


Specification download:

横线

Model: SDK2-0734S-12C03-03


The holding solenoid make the plunger stay at the end position after power is off with the magnetic force of permanent magnet. There are two types of holding solenoids: one-way and two-way self-holding, once power-on, the plunger moves to side of iron core, otherwise, it moves to another side, it is used in electronic locks and charging guns.




  Gif animation of solenoid

Double Holding Solenoid



  Demo video of solenoid in YouTube

dc 12v solenoid

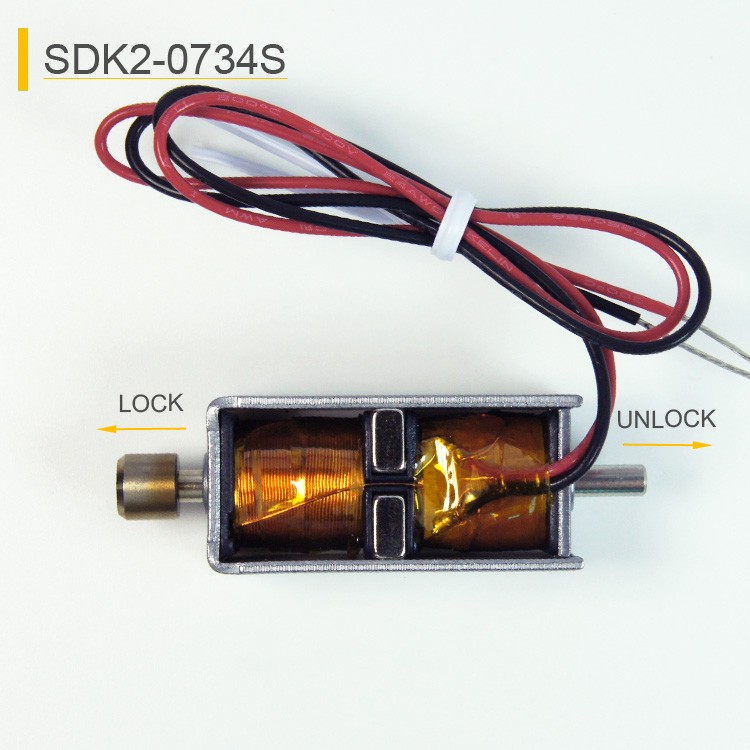

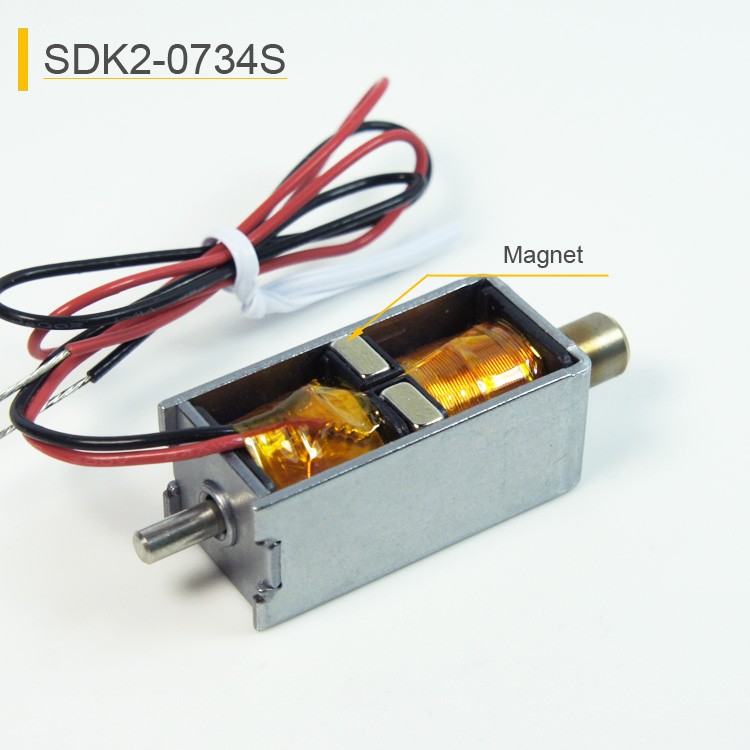

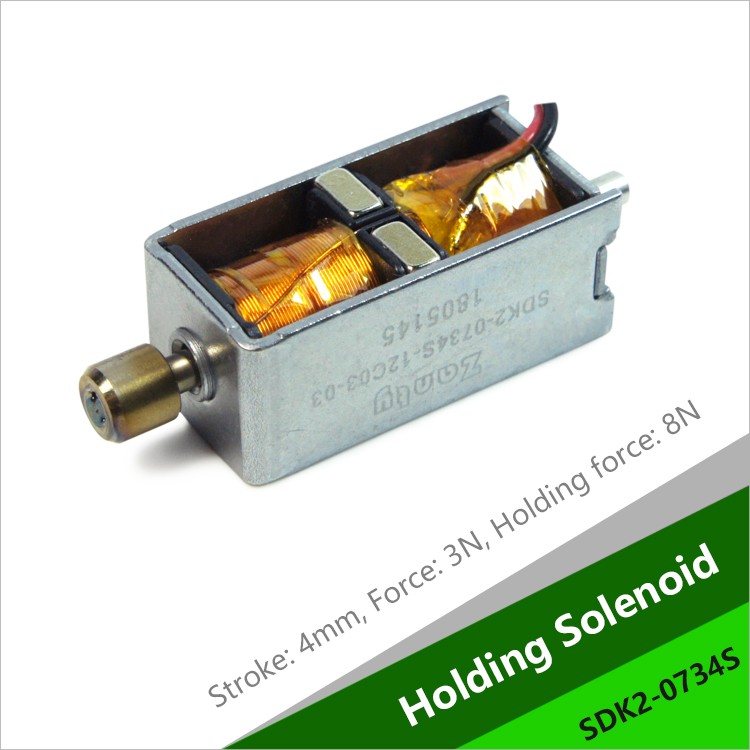

  Real photos of solenoid

Holding Solenoid

open frame solenoid

linear solenoid

push pull solenoid

solenoid

  Details of solenoid


description of solenoid

Size: 33.9*16*14mm

plunger:φ7mm

Voltage: DC12V

Stroke: 0-6mm

Force: 2-4N

Holding Force: 6-10N

Power : 24W

Current: 2A

Resistance: 6Ω

Life: ≥100,000 times

Working  Cycle: 0.2s on, 2s off


The double holding solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid



  Working principle of solenoid

principle of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.




application of solenoid


Solenoid For Lock Of Charging Gun
