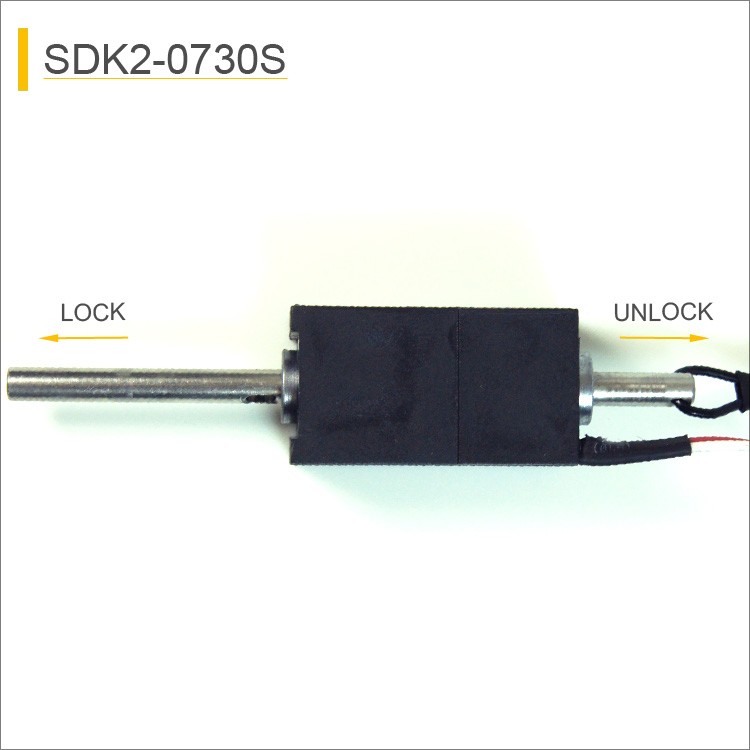

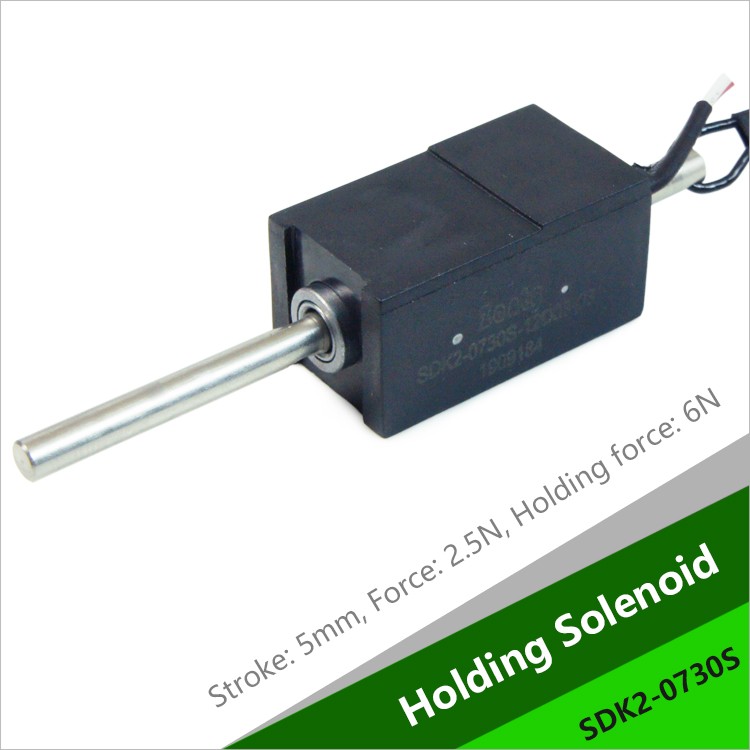

SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun
SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun
SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun
SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun
SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun
SDK2-0730S Injection Molded Double Holding Solenoid For Charging Gun

Size: 32.7*18*16.5mm

plunger:φ7mm

Voltage: DC12V

Stroke: 0-5mm

Force: 2-3N

Holding Force: 5-7N

Power : 24W

Current: 2A

Resistance: 6Ω

Life: ≥100,000 times

Working  Cycle: 0.2s on, 2s off


Specification download:

横线

Model: SDK2-0730S-12D03-03


The holding solenoid make the plunger stay at the end position after power is off with the magnetic force of permanent magnet. There are two types of holding solenoids: one-way and two-way self-holding, once power-on, the plunger moves to side of iron core, otherwise, it moves to another side, it is used in electronic locks and charging guns.




  Gif animation of solenoid


double holding solenoid




  Demo video of solenoid in YouTube


dc 12v solenoid




  Real photos of solenoid


Injection Molded Holding Solenoid

Electronic lock

Solenoid For Charging Gun

push solenoid




  Details of solenoid

description of solenoid

Size: 32.7*18*16.5mm

plunger:φ7mm

Voltage: DC12V

Stroke: 0-5mm

Force: 2-3N

Holding Force: 5-7N

Power : 24W

Current: 2A

Resistance: 6Ω

Life: ≥100,000 times

Working  Cycle: 0.2s on, 2s off


The double holding solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Working principle of solenoid

principle of solenoid



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
