SDEF-1522 Electric Fingers For Medical Automation Equipment
SDEF-1522 Electric Fingers For Medical Automation Equipment
SDEF-1522 Electric Fingers For Medical Automation Equipment
SDEF-1522 Electric Fingers For Medical Automation Equipment
SDEF-1522 Electric Fingers For Medical Automation Equipment
SDEF-1522 Electric Fingers For Medical Automation Equipment

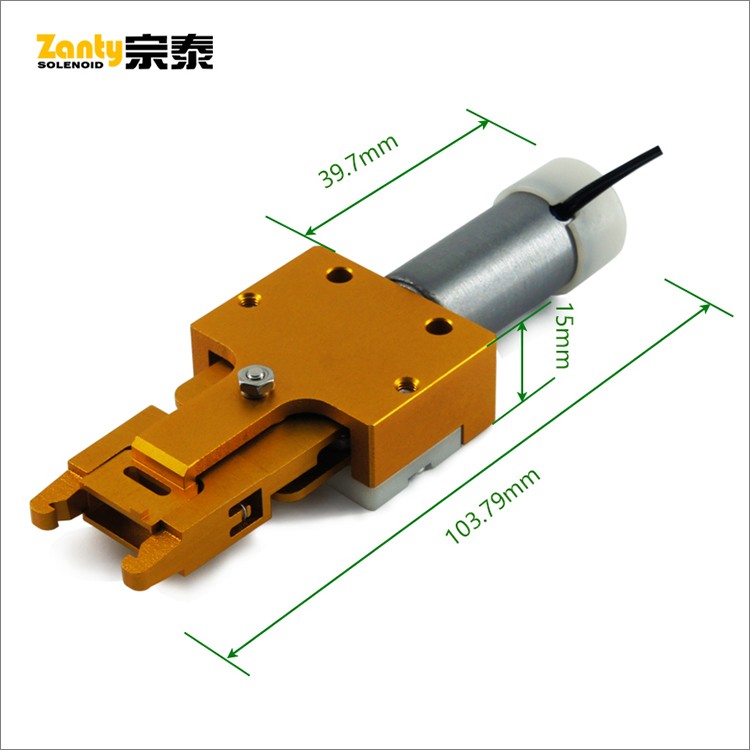

Size: 103.79*35*15mm

Voltage: DC24V

Clamping Force: >0.4N

Open range:15-22mm

Power : 15W

Current: 0.63A

Resistance: 38.4Ω

Transmission method: Solenoid+Rod

Life: ≥5000,000 times

Working cycle: 1s On, 3s Off


Specification download:

横线

Model: SDEF-1522-24A38.4


Electric fingers, also known as electric grippers, are driven by the solenoid to realize the contraction and release of the fingers, and can be controlled by the positioning point. In medical automation equipment, such as blood analyzers, biochemical analyzers, etc., the electric fingers will be used to adjust and carry the test tubes and their racks, as well as the manipulator end grippers.



  Gif animation of solenoid

Electric Fingers


  Demo video of solenoid in YouTube


Electric Fingers For Medical Automation Equipment

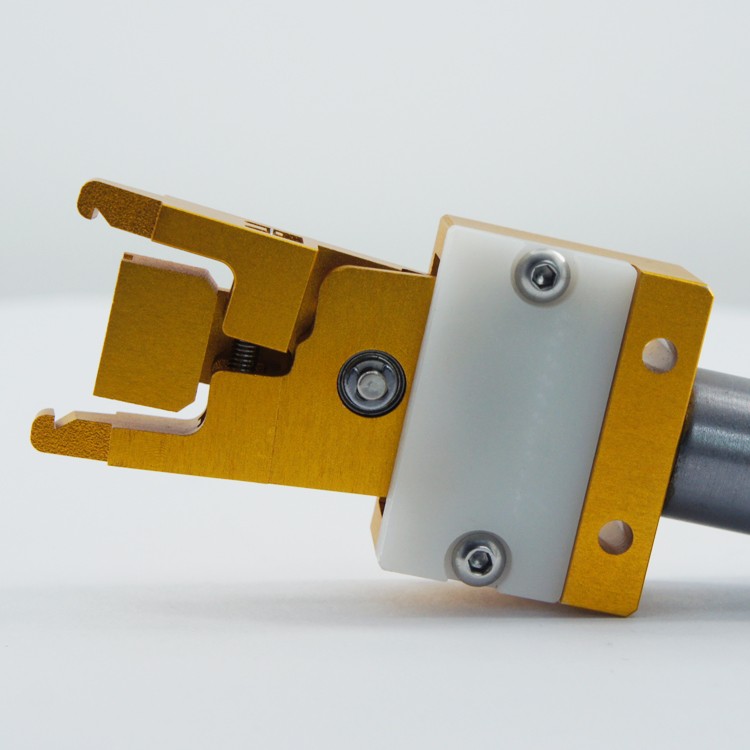

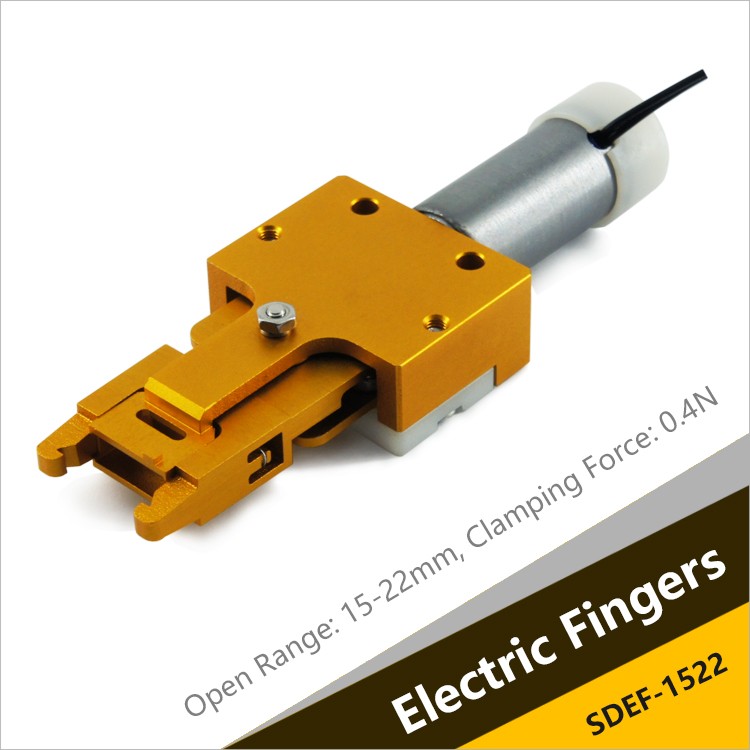

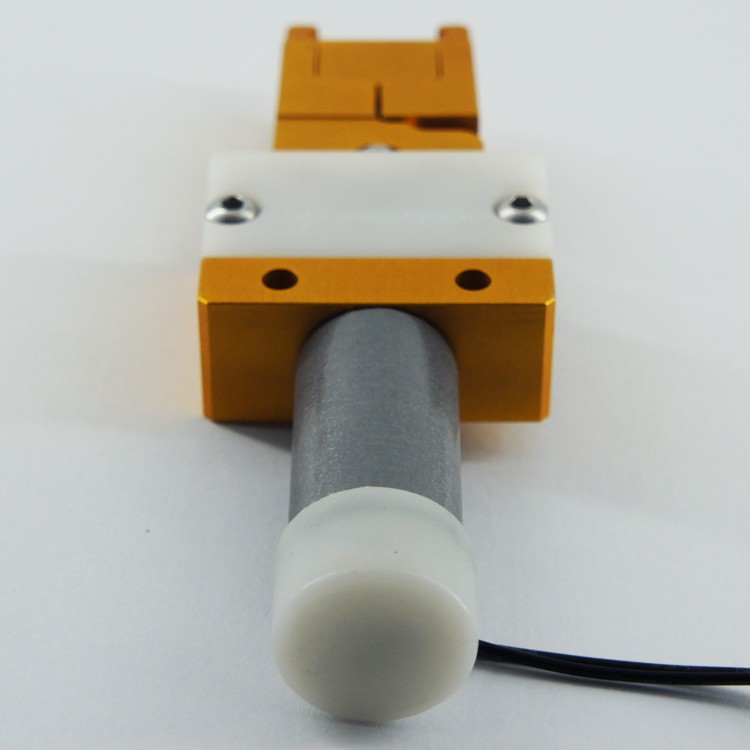

  Real photos of solenoid

Electric Fingers

solenoid

solenoid

Electric Fingers

Electric Fingers


Size: 103.79*35*15mm

Voltage: DC24V

Clamping Force: >0.4N

Open range:15-22mm

Power : 15W

Current: 0.63A

Resistance: 38.4Ω

Transmission method: Solenoid+Rod

Life: ≥5000,000 times

Working cycle: 1s On, 3s Off


The electric finger is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



Electric Fingers

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
