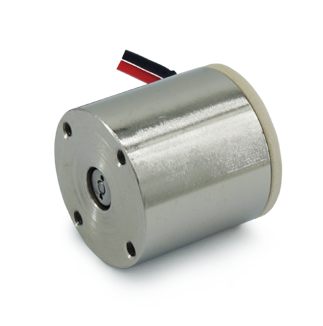

SDLM-3030 Voice Coil Motor Applied to Medical Ventilator
SDLM-3030 Voice Coil Motor Applied to Medical Ventilator
SDLM-3030 Voice Coil Motor Applied to Medical Ventilator
SDLM-3030 Voice Coil Motor Applied to Medical Ventilator
SDLM-3030 Voice Coil Motor Applied to Medical Ventilator
SDLM-3030 Voice Coil Motor Applied to Medical Ventilator

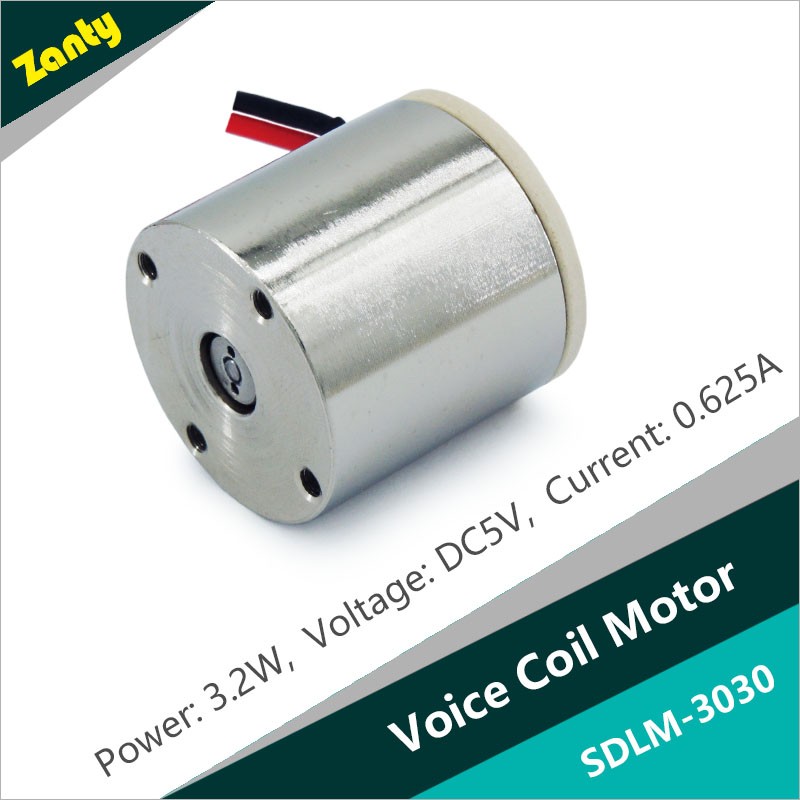

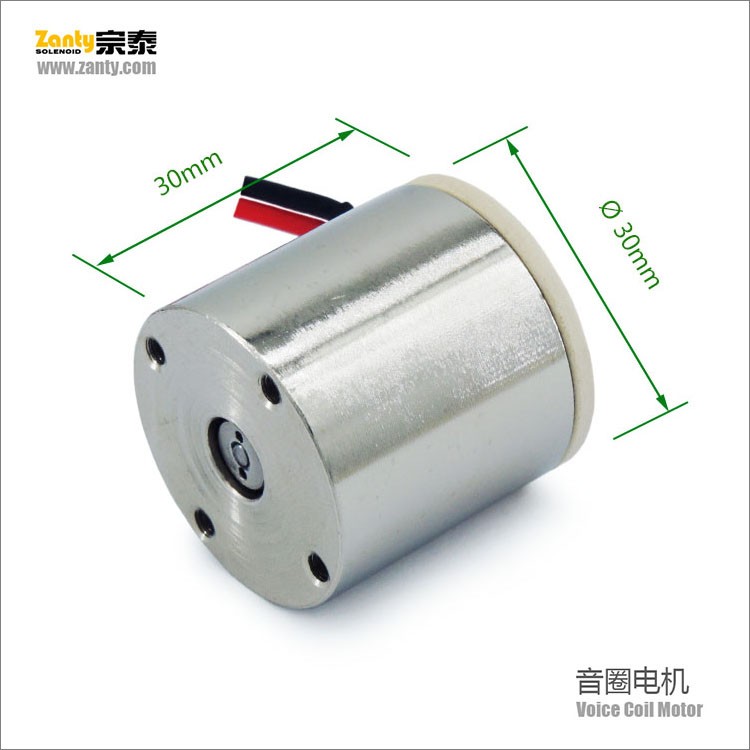

Size: φ30*30mm

Voltage: DC5V

Stroke: 0-5mm

Force: 2.8-3.2N

Power : 3.2W

Current: 0.625A

Resistance: 8Ω

Life: ≥100000,000 times

Working cycle: Continuous power


Specification download:

横线

Model: SDLM-3030-5A8


The voice coil motor generates force when the energized coil is placed in the magnetic field. The force is proportional to the current applied to the coil. With the characteristics of simple structure, high-precision, high-response, no cogging and no reversing, it is suitable for the short strokes, fast response and high-precision closed-loop servo control.



  Gif animation of solenoid

SDLM-3030 Voice Coil Motor Applied to Medical Ventilator

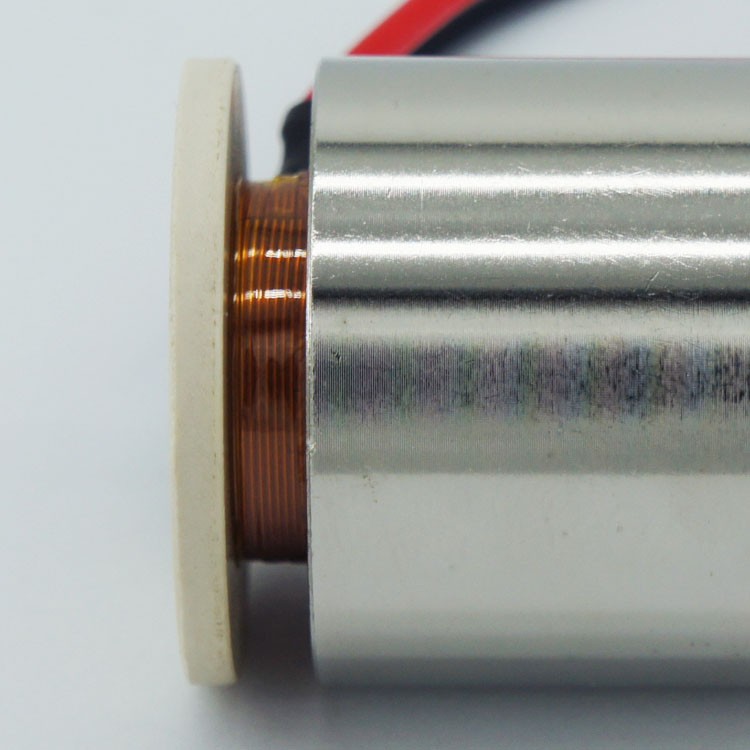

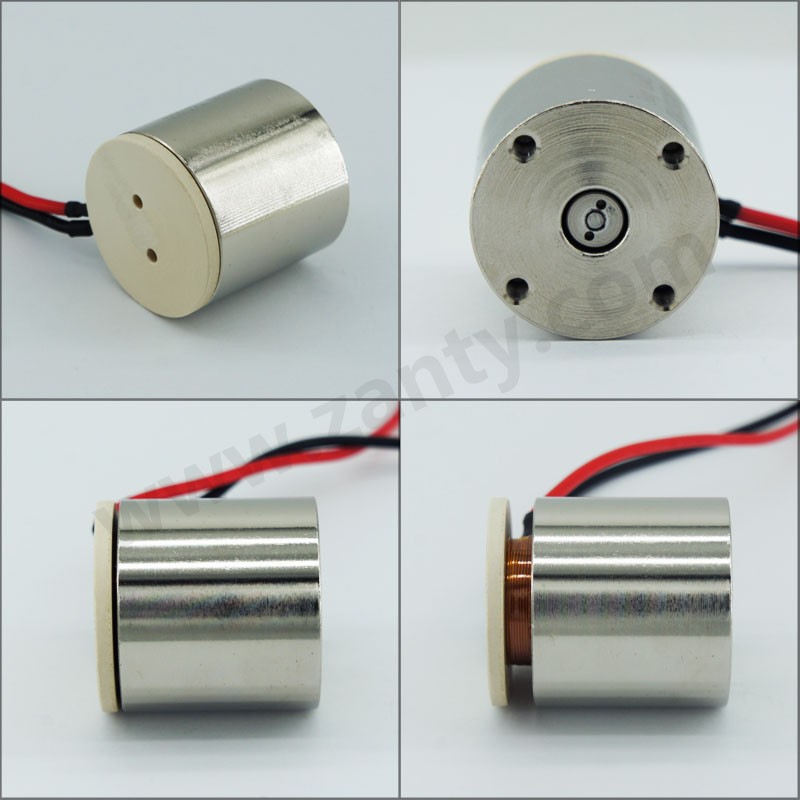

  Real photos of solenoid


SDLM-3030 Voice Coil Motor Applied to Medical Ventilator

SDLM-3030 Voice Coil Motor Applied to Medical Ventilator

SDLM-3030 Voice Coil Motor Applied to Medical Ventilator



Size: φ30*30mm

Voltage: DC5V

Stroke: 0-5mm

Force: 2.8-3.2N

Power : 3.2W

Current: 0.625A

Resistance: 8Ω

Life: ≥100000,000 times

Working cycle: Continuous power


The voice coil motor is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.



SDLM-3030 Voice Coil Motor Applied to Medical Ventilator

SDLM-3030 Voice Coil Motor Applied to Medical Ventilator



Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
