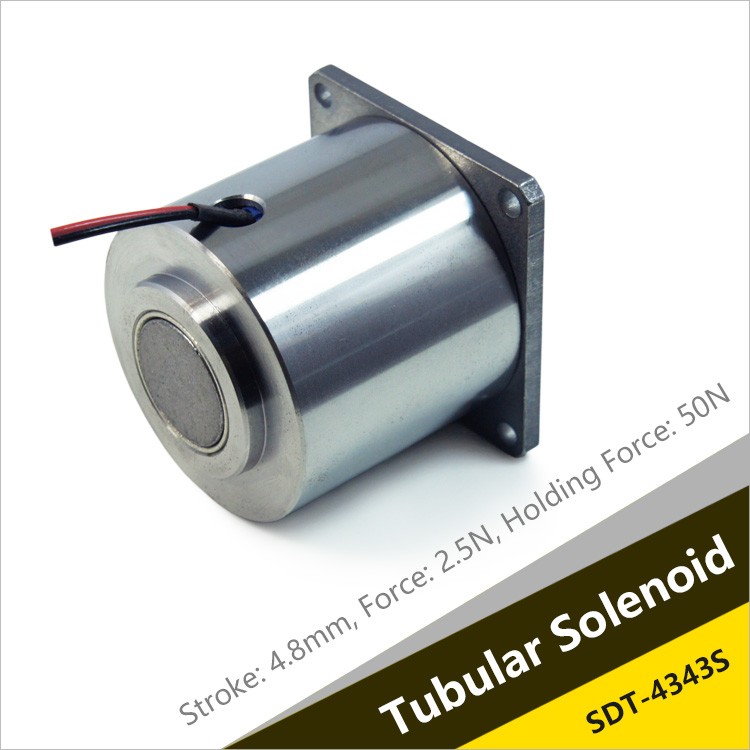

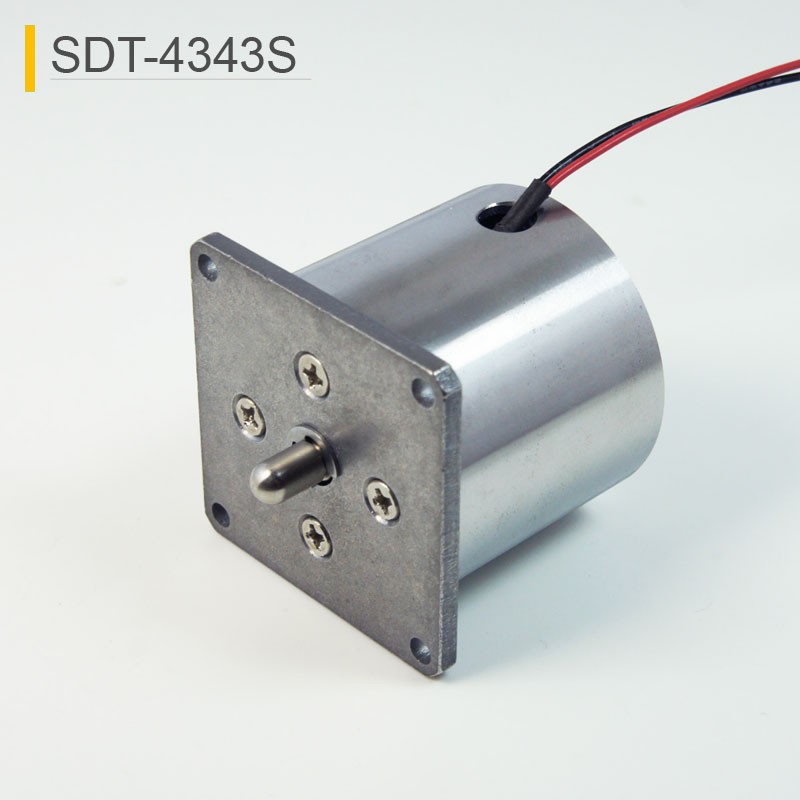

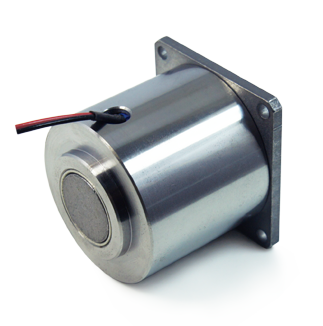

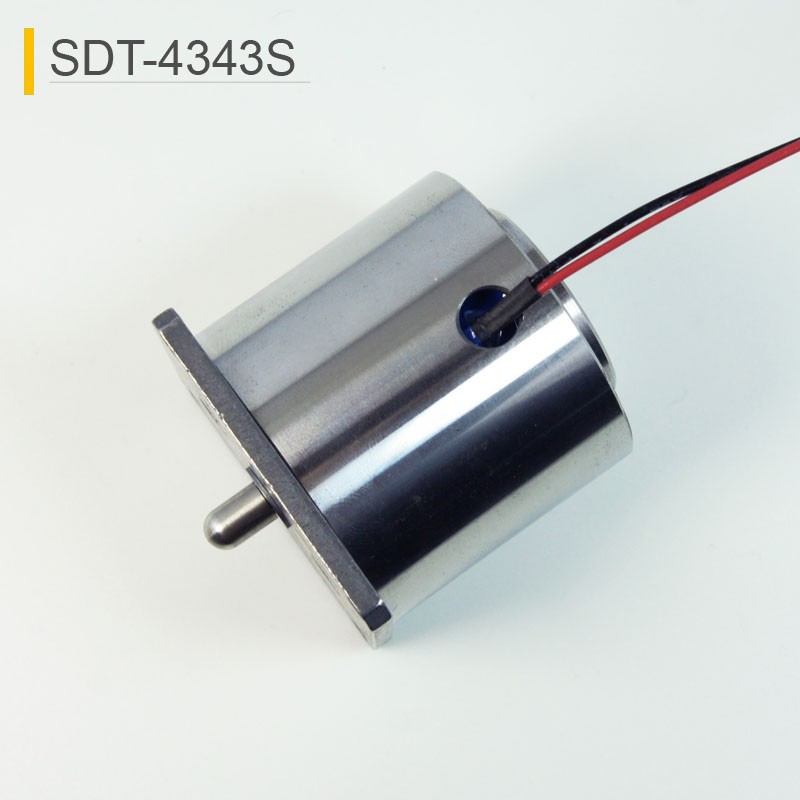

SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment
SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment
SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment
SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment
SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment
SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment

Size: φ43*43mm

Plunger: φ18mm

Voltage: DC12V

Stroke: 0-5mm

Force: 6-60N

Power: ≤3W

Current: ≤0.25A

Resistance: 48Ω

Life: ≥10000,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDT-4343S-12A48


The tubular solenoid is processed with circular iron tube, which can convert most of the electromagnetic energy into magnetic energy. It has the characteristics of big force, fast response, long life, stable performance and reliable working.It is used in ventilators, placement machinestextile machines and so on.



  Gif animation of solenoid

push type tubular solenoid



  Demo video of solenoid in YouTube

dc 12v solenoid



  Real photos of solenoid

Tubular Solenoid

push solenoid

tubular type solenoid

linear solenoid

solenoid

SDT-4343S Tubular Solenoid For Medical Ventilator And Medical Equipment


Size: φ43*43mm

Plunger: φ18mm

Voltage: DC12V

Stroke: 0-5mm

Force: 6-60N

Power: ≤3W

Current: ≤0.25A

Resistance: 48Ω

Life: ≥10000,000 times

Working Cycle: Continuous Power


The tubular solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.

size of solenoid

Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
