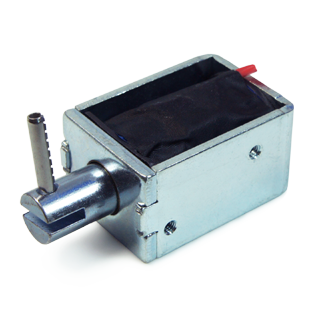

SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment

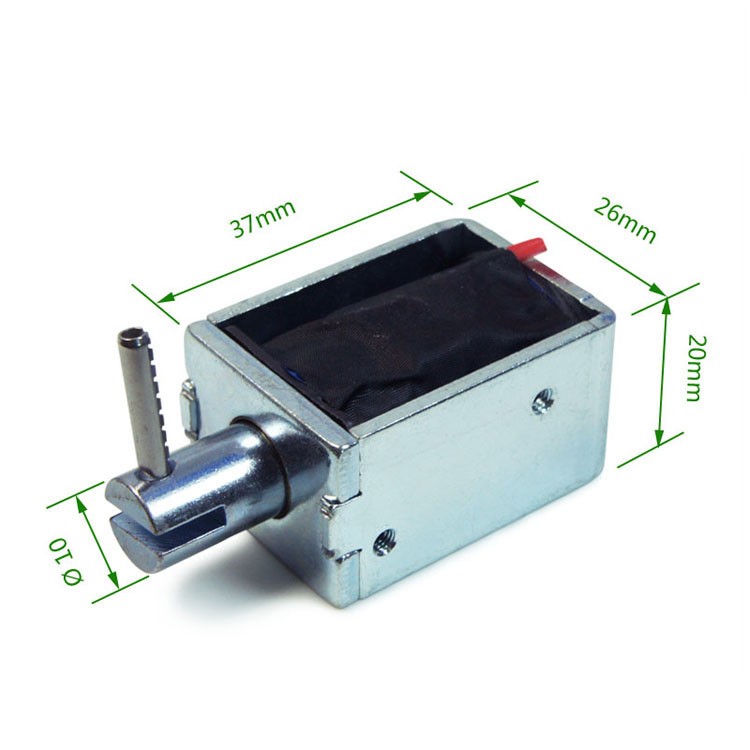

Size: 37*26*20mm

Plunger: φ10mm

Voltage: DC36V

Stroke: 0-6mm

Force: 2-10N

Power: 32.4W

Current: 0.9A

Resistance: 40Ω

Life: ≥1000,000 times

Working Cycle: 0.1s On, 0.9s Off


Specification download:

PDF

横线

Model: SDO-1037L-36A40

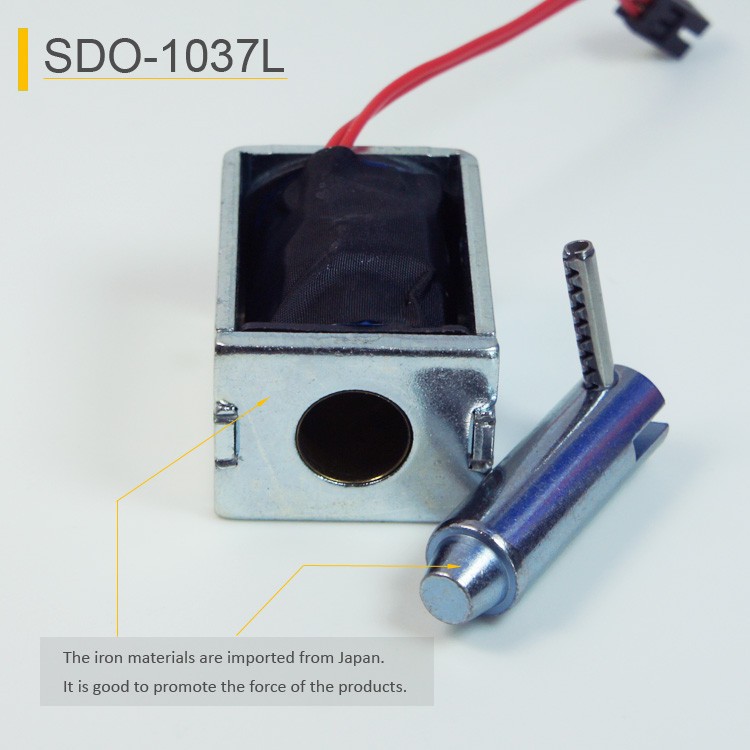

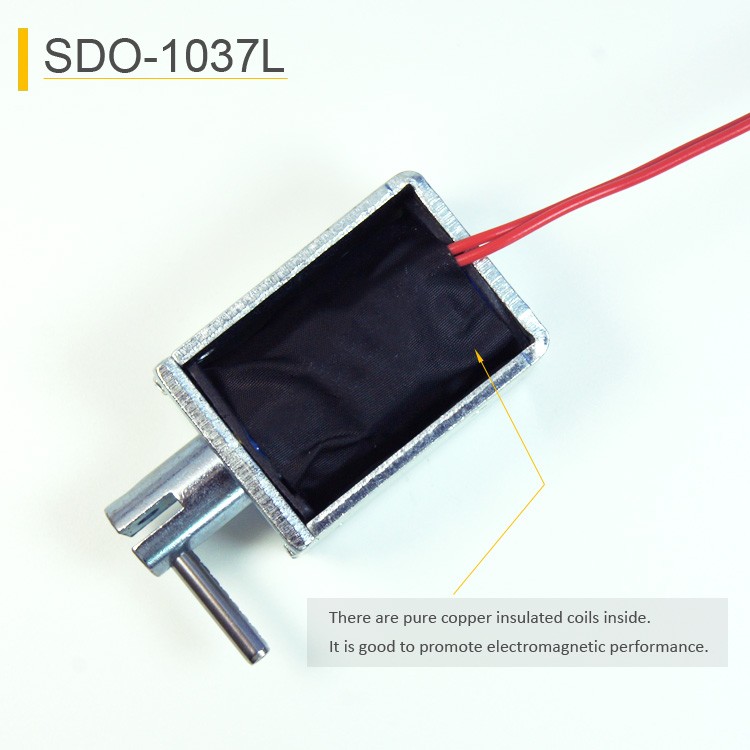

The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.



  Gif animation of solenoid

pull solenoid




  Demo video of solenoid in YouTube

dc 36v solenoid

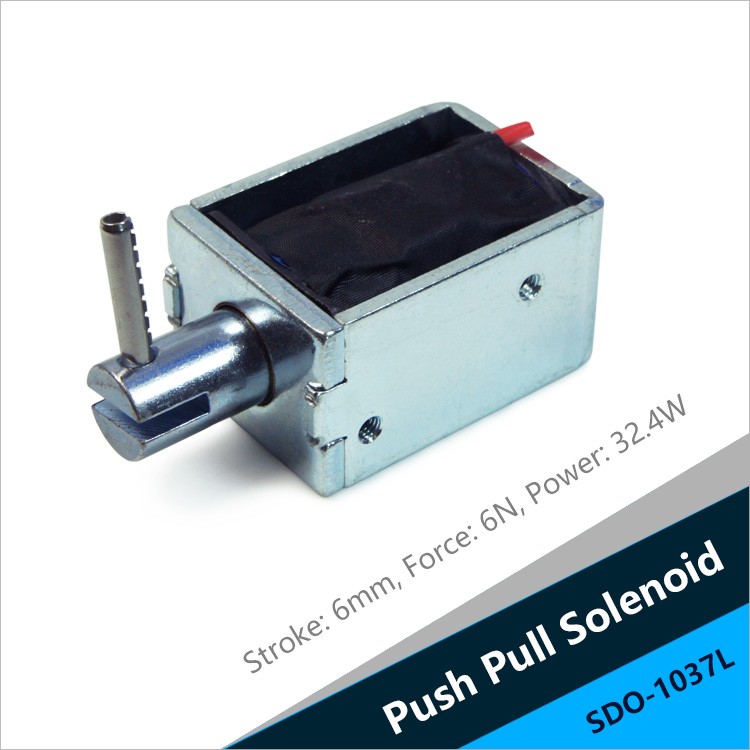

  Real photos of solenoid

push pull solenoid

open frame solenoid

push solenoid

linear solenoid

solenoids


Size: 37*26*20mm

Plunger: φ10mm

Voltage: DC36V

Stroke: 0-6mm

Force: 2-10N

Power: 32.4W

Current: 0.9A

Resistance: 40Ω

Life: ≥1000,000 times

Working Cycle: 0.1s On, 0.9s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Force and stroke of solenoid


force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For ATM Machine

application of solenoid
