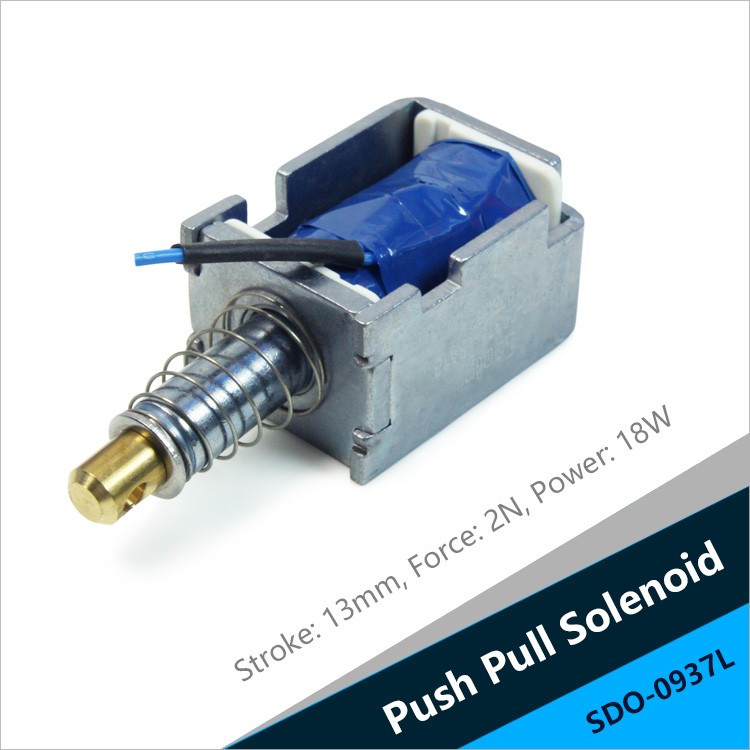

SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker

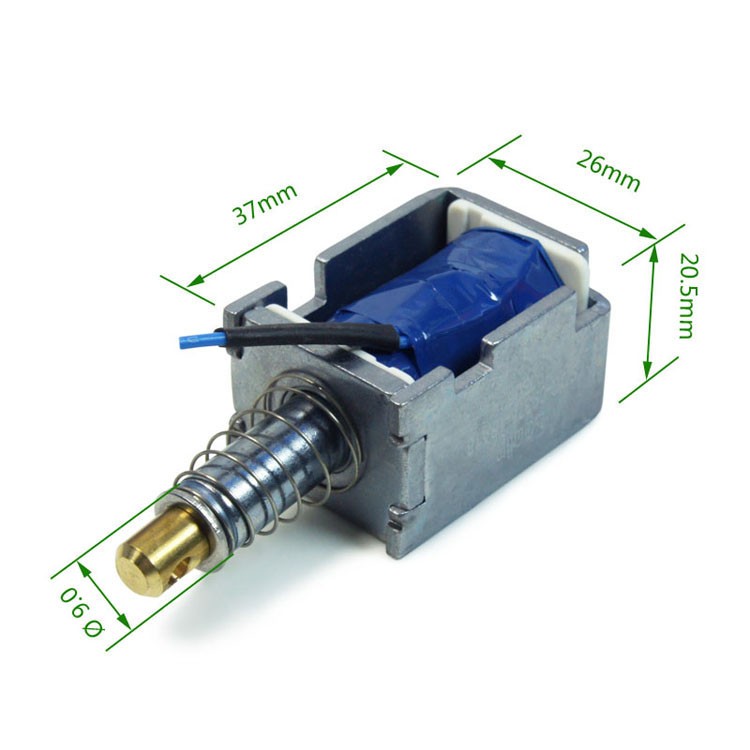

Size: 37*26*20.5mm

Plunger: φ9mm

Voltage: DC18V

Stroke: 0-13mm

Force: 1-8N

Power: 18W(Start) 4.5W(Hold)

Current: 1A

Resistance: 18Ω

Life: ≥200,000 times

Working Cycle: Continuous Power


Specification download:

横线

Model: SDO-0937L-18A18

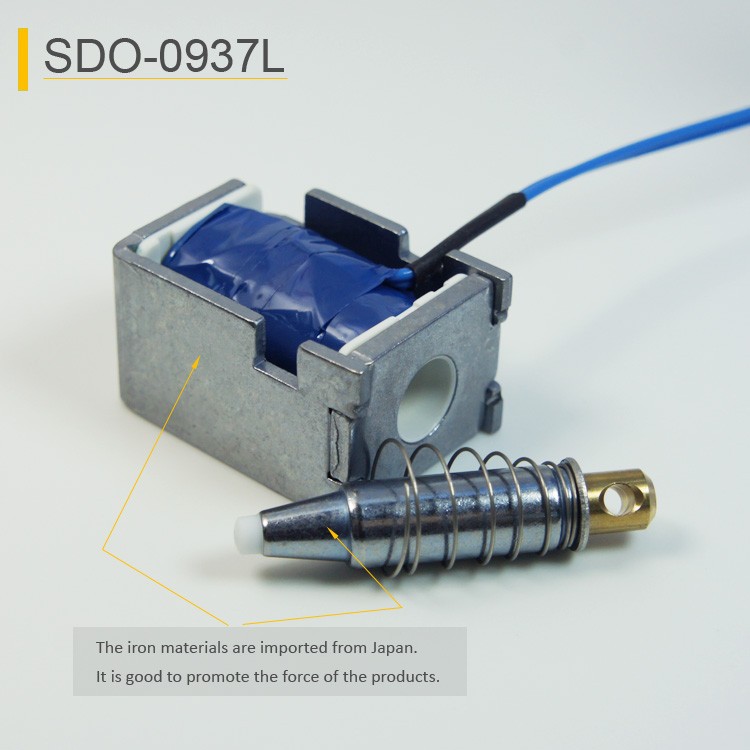

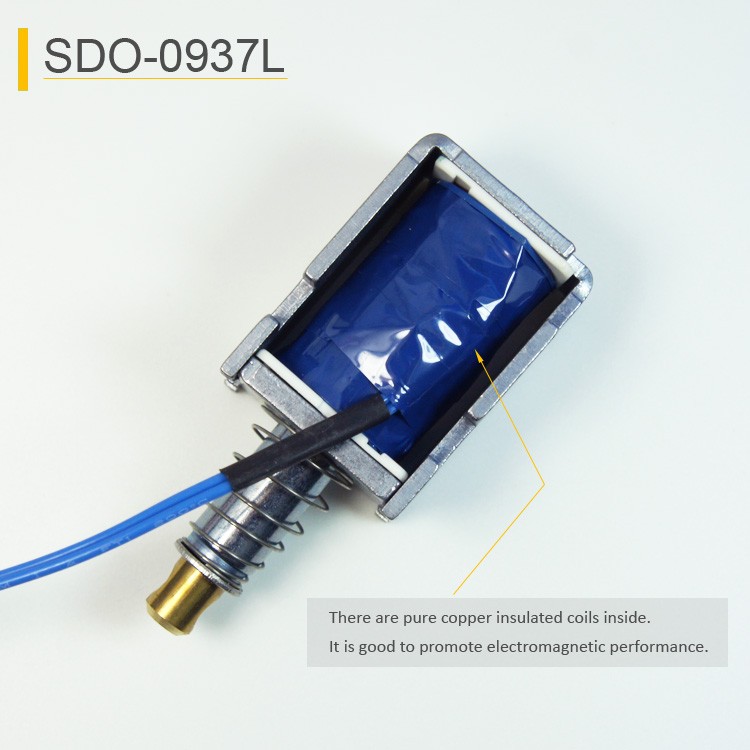

The frame push-pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid

pull solenoid



  Demo video of solenoid in YouTube

dc 18v solenoid



  Real photos of solenoid

push-pull solenoid

solenoid

open frame solenoid

linear solenoid

size of solenoid

Size: 37*26*20.5mm

Plunger: φ9mm

Voltage: DC18V

Stroke: 0-13mm

Force: 1-8N

Power: 18W(Start) 4.5W(Hold)

Current: 1A

Resistance: 18Ω

Life: ≥200,000 times

Working Cycle: Continuous Power


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Force and stroke of solenoid


force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
